Horn: Service and Repair

Removal
1. Disconnect negative battery cable.




2. Remove one boll and remove horn.

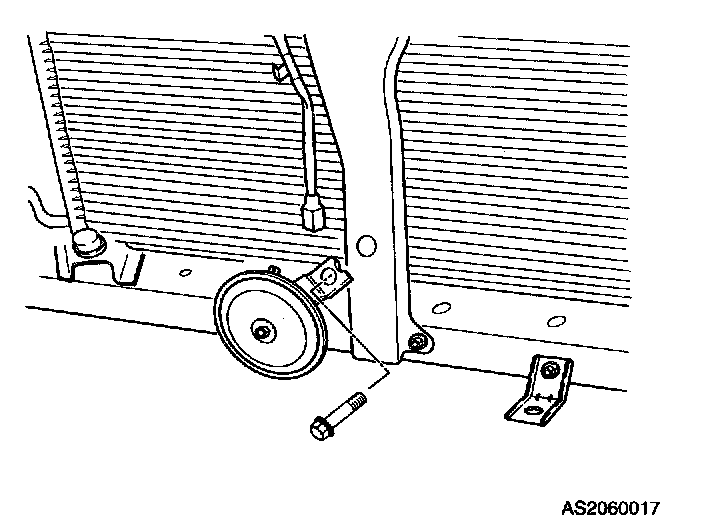

Installation
Horn is electrically grounded through mounting. Be sure that metal-to-metal contact is established before installing attaching bolt.

1. Disconnect negative battery cable.
2. Position horn on chassis and install one bolt.

Tighten one bolts to 70 - 96 lb.in (8 - 11 N.m, 80 - 110 kg.cm)

3. Connect one wire to horn.
4. Connect negative battery cable.
