Condenser Fan Does Not Operate

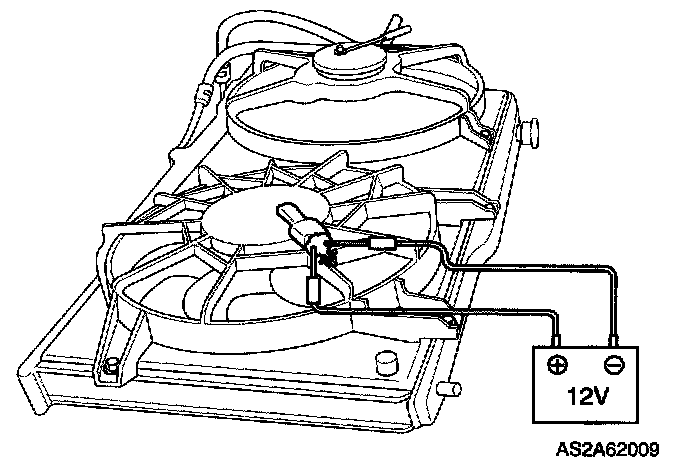

Condenser fan does not operateStep 1: Check condenser Fan operation
1. Disconnect condenser fan connector.
2. Apply 12 V to the terminal 1 (LG/R) and ground terminal 2 (B) and verify that condenser fan operates.
3. If condenser fan does not operate, replace condenser fan.
4. If condenser fan operates, go to step 2.

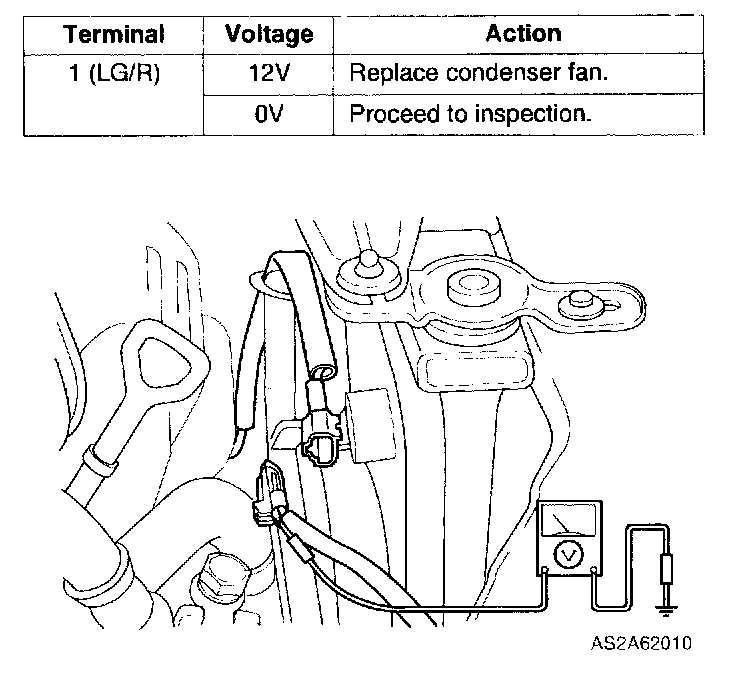

Step 2: Check voltage at condenser Fan
1. Verify that condenser fan connector is disconnected.
2. Run engine at idles.
3. Turn the A/C and blower switches to ON position.
4. Check for voltage at following terminal wire of wiring harness connector.
Inspection
Condenser fan relay
1. Disconnect condenser fan relay from fuse box in engine compartment.

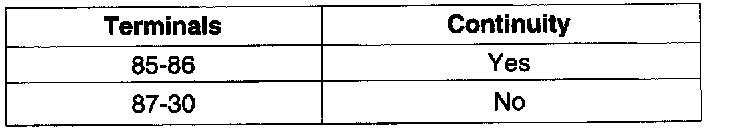

2. Check for continuity between following terminals of the relay.
3. If not as specified, replace the relay.
4. If correct, go to next step.

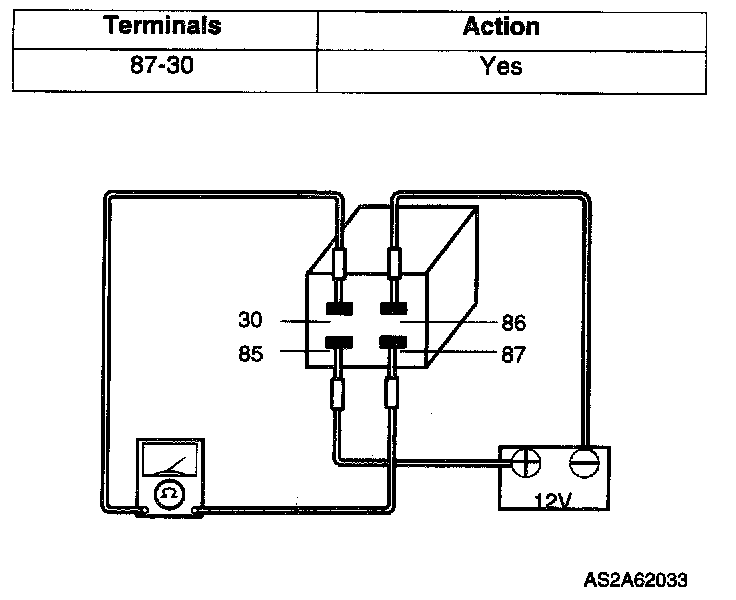

5. Apply 12 V to the terminal 85 and ground the terminal 86.
6. Check for continuity between terminals 87 and 30.
7. If not as specified, replace the relay.
8. If relay is OK, go to step 3.

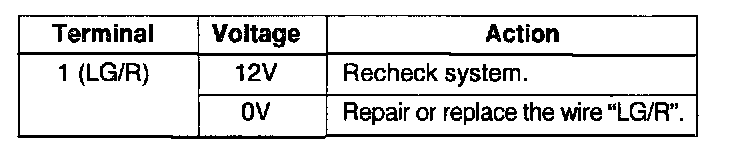

Step 3: Check voltage at condenser fan
1. Verify that condenser fan connector is disconnected.
2. Run engine at idles.
3. Turn the A/C and blower switches to ON position.
4. Check for voltage at following terminal wire of wiring harness connector.
