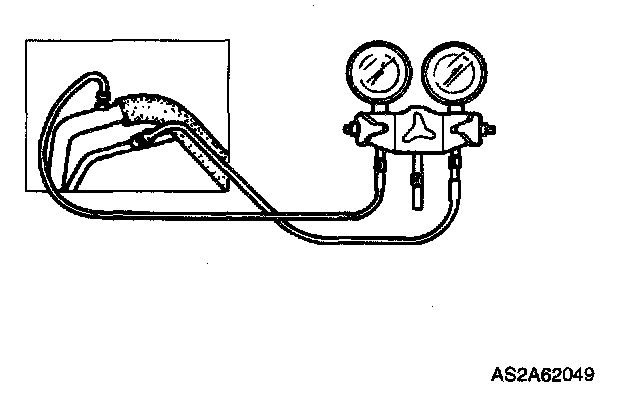

Installation of Manifold Gauge Set

Manifold gauge set

Installation

NOTE: Fittings for attaching manifold gauge set are on the high-and low-pressure pipes.

1. Close both hand valves of manifold gauge set.
2. Connect the low-pressure hose to high-pressure gauge fitting.




3. Tighten hose nuts by hand only.
