Field Coil
Field Coil

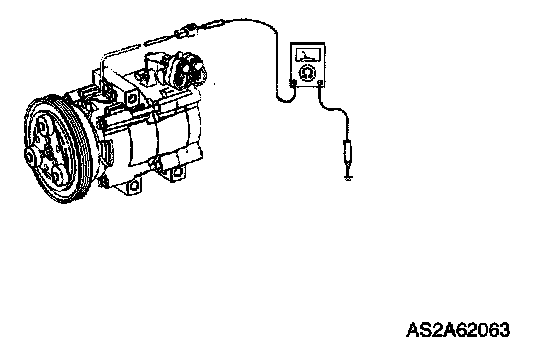

1.
Verify continuity between field coil terminals.
NOTE:
Set ohmmeter to X 1,000 range.
2.
If there is no continuity, replace field coil.
