Heater Core Temperature Sensor / Switch: Testing and Inspection

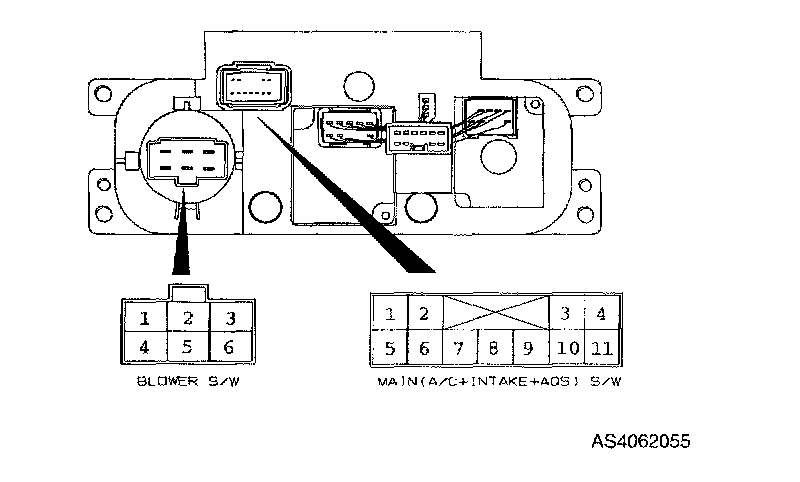

Heater control switch
1. Check continuity between terminals of each switches.

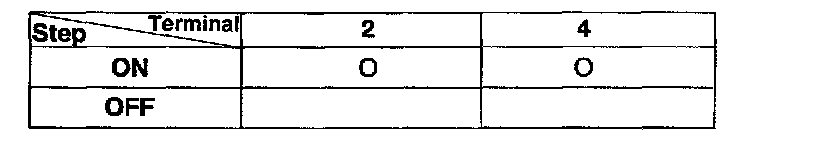

A/C switch

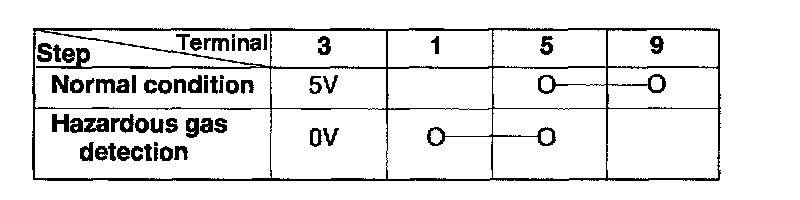

A.Q.S switch

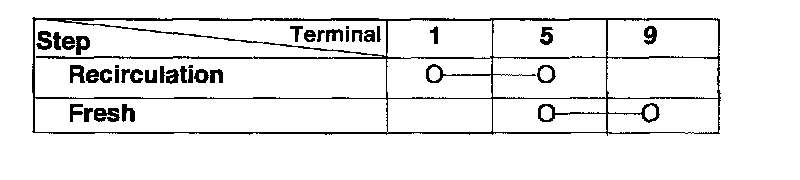

Intake switch




Blower switch
