Blower Motor: Testing and Inspection

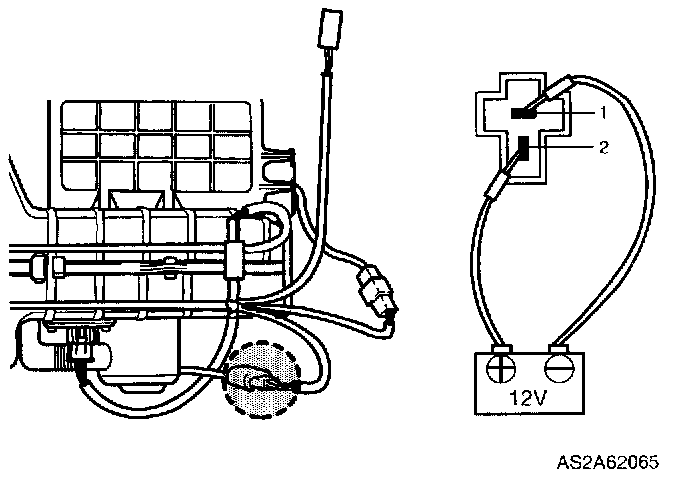

Inspection1. Disconnect blower motor connectors.
2. Verify that blower motor runs when connecting 12 V to terminal 2 (R/W) and grounding terminal 1 (G/Y).
3. If not as specified, replace blower motor.
1. Disconnect blower motor connectors.
2. Verify that blower motor runs when connecting 12 V to terminal 2 (R/W) and grounding terminal 1 (G/Y).
3. If not as specified, replace blower motor.
