Home >> Kia >> 2001 >> Spectra GS L4-1.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cooling System >> System Diagram

System Diagram

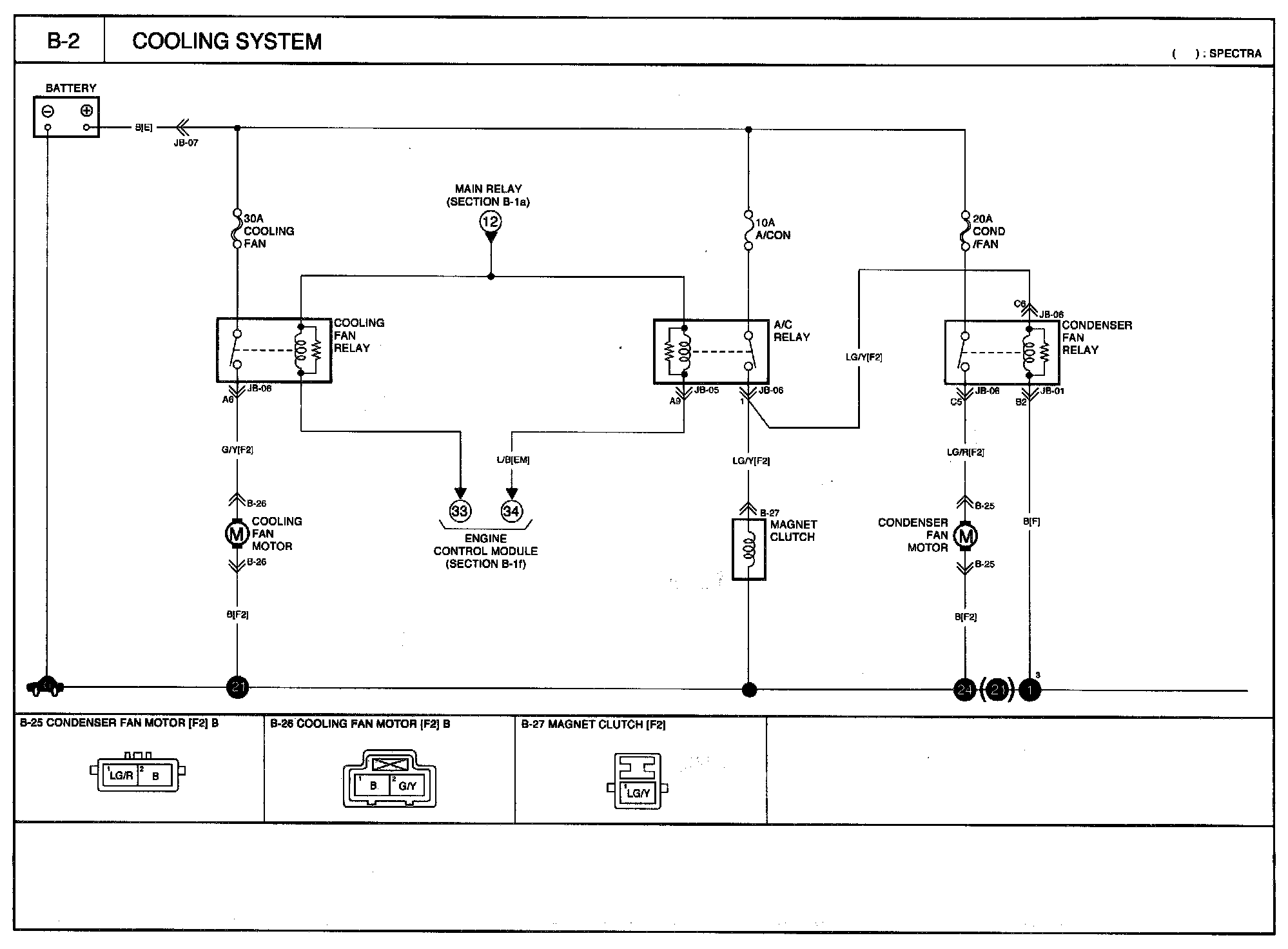

B-2 - Cooling System Circuit:

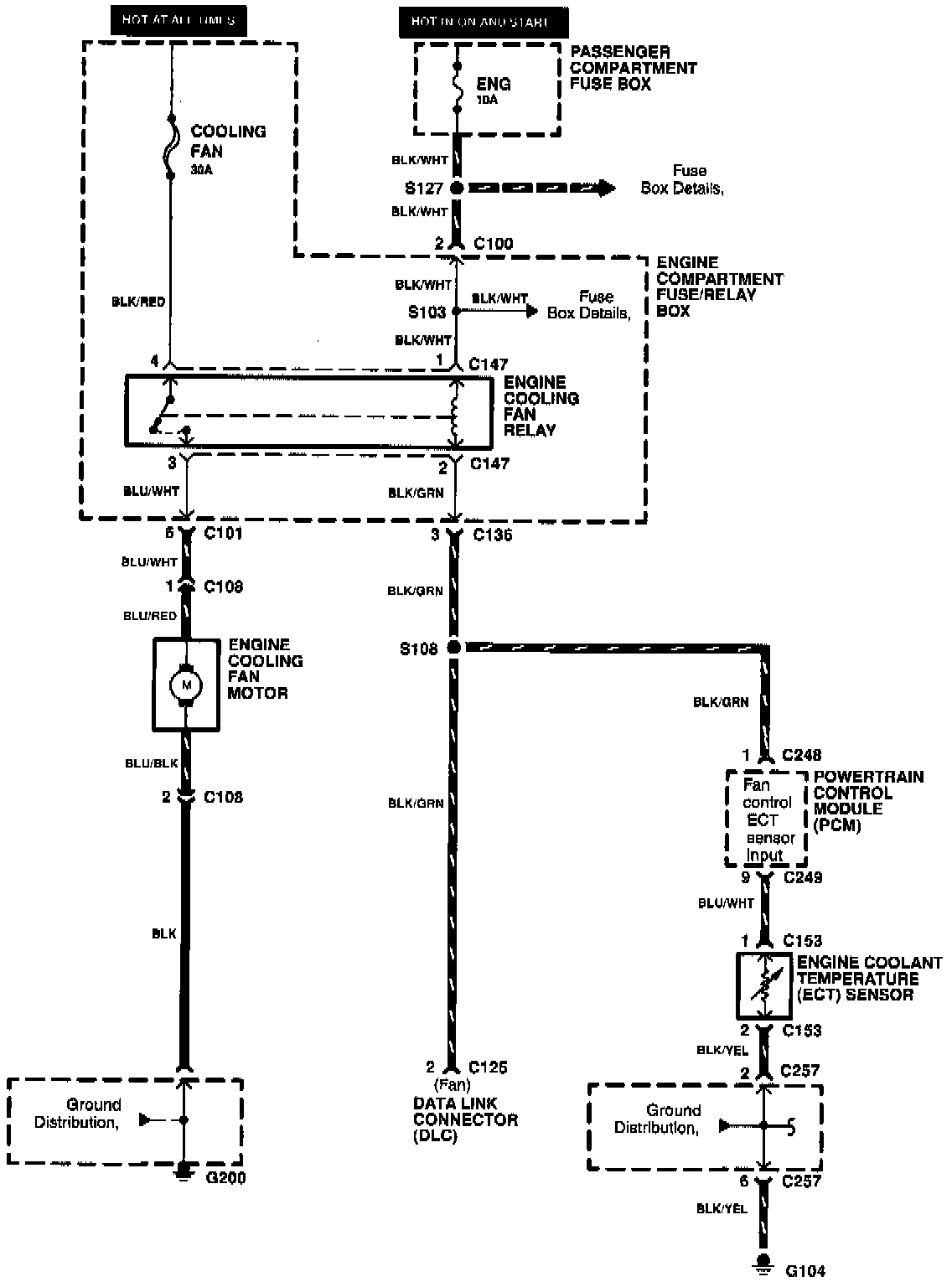

Part 1 Of 2:

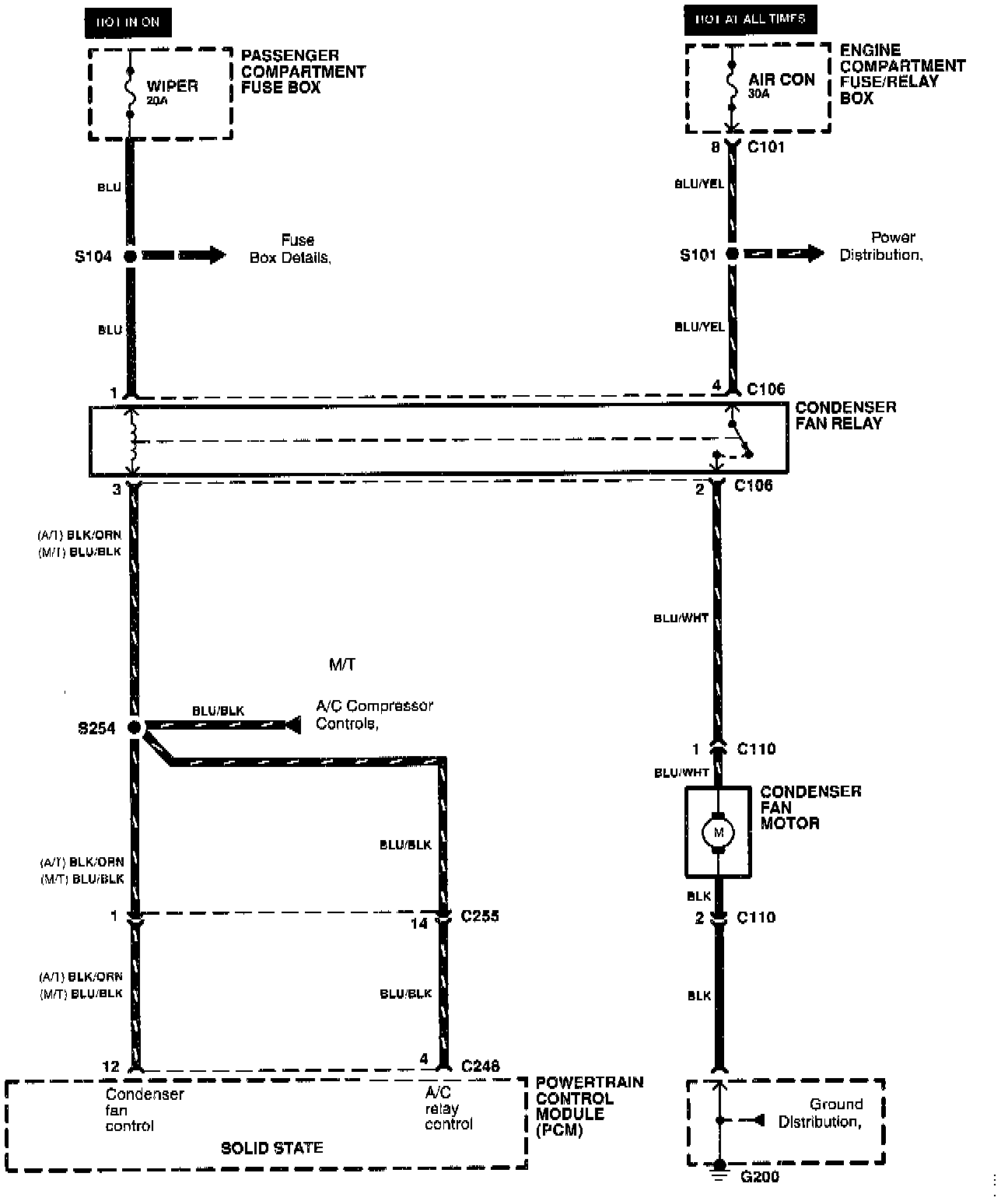

Part 2 Of 2:
