Mirrors: Service and Repair

Outside rearview mirror assembly

Removal
1. Disconnect negative battery cable.

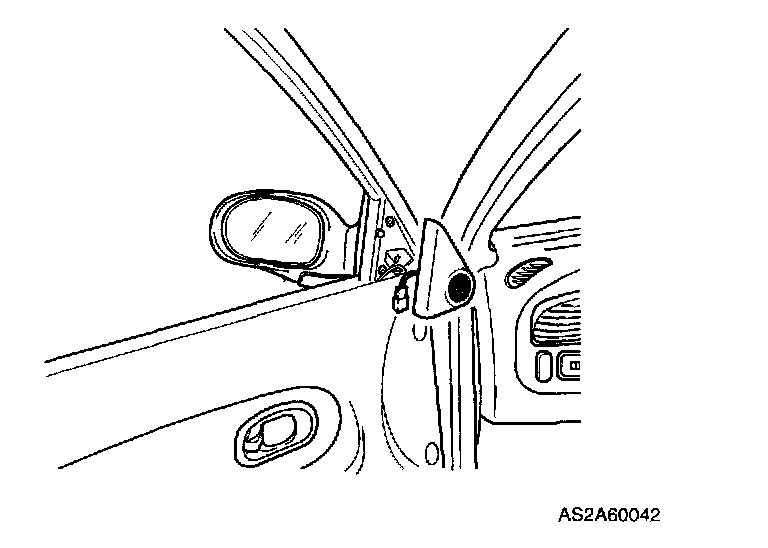

2. Remove speaker garnish.

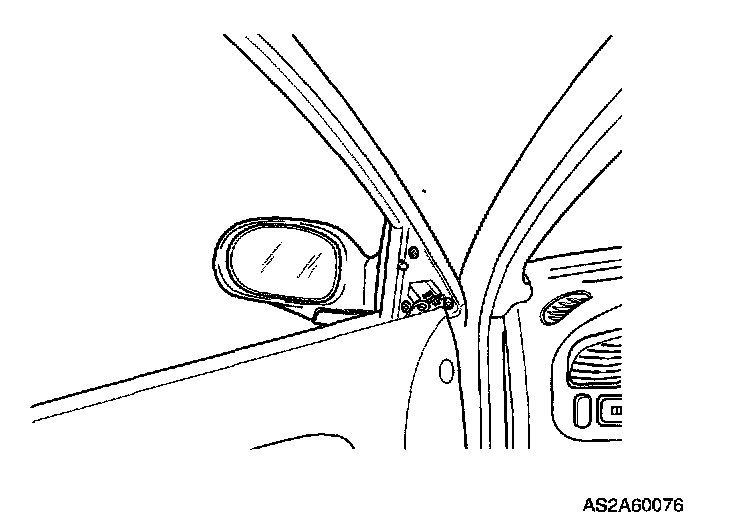

3. Remove three rearview mirror assembly retaining screws.

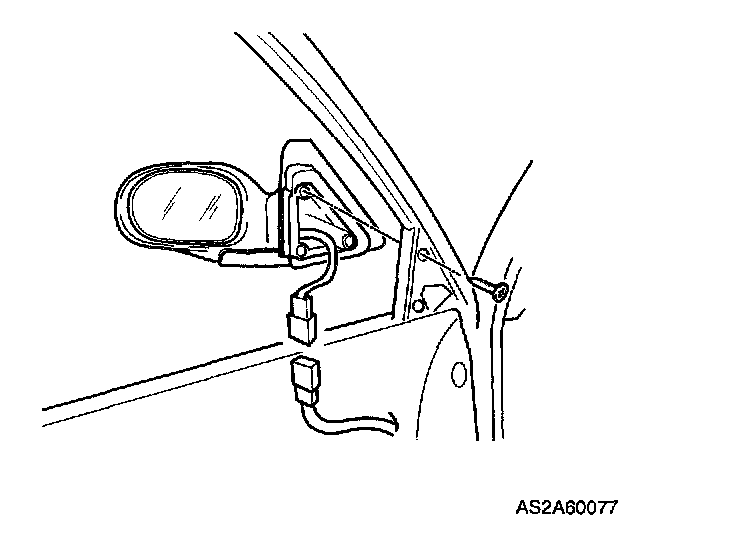

4. Pull out outside rearview mirror assembly and disconnect harness connector.
5. Remove outside rearview mirror assembly.

Installation

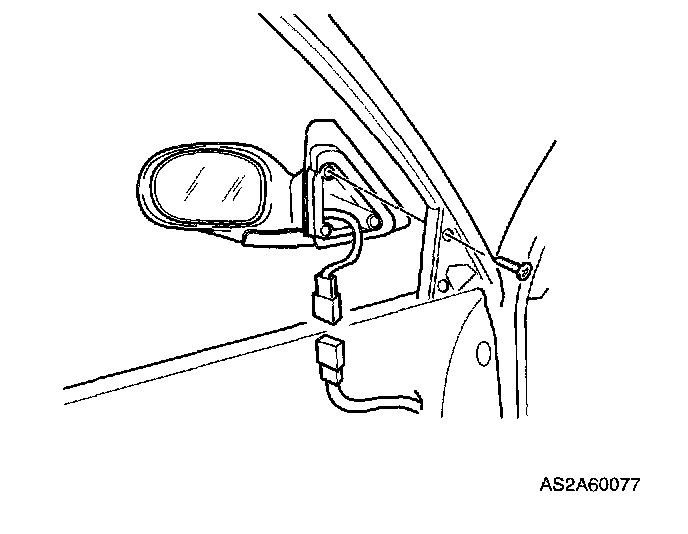

1. Position outside rearview mirror assembly on door.




2. Install three retaining screws.
3. Connect harness connector.

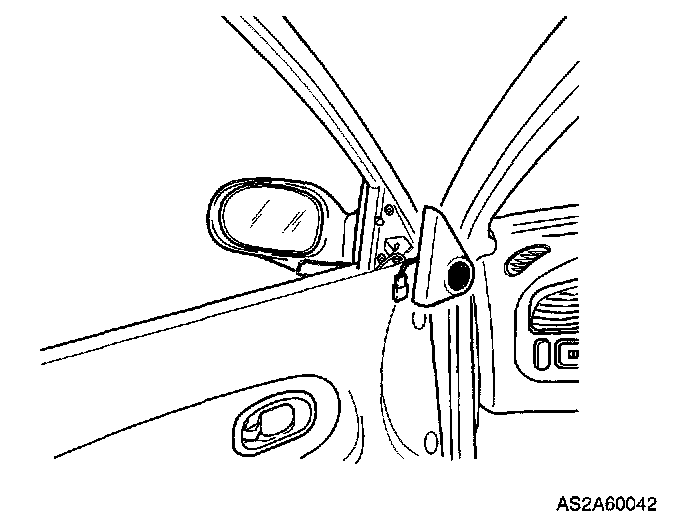

4. Install speaker garnish.




5. Connect negative battery cable.
