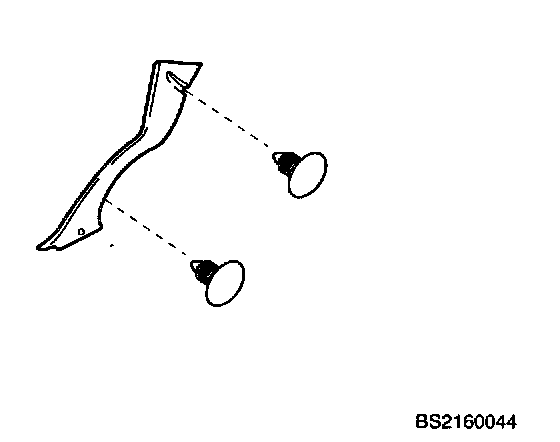

Tire House Trim

Removal
1. Remove rear seat cushion, Refer to "Seat".




2. Remove two fasteners.
3. Remove tire house trim.

Installation
1. Position tire house trim.
2. Install two fasteners.
