C-Pillar Trim

Removal
1. Remove rear seat cushion, refer to "Seat".

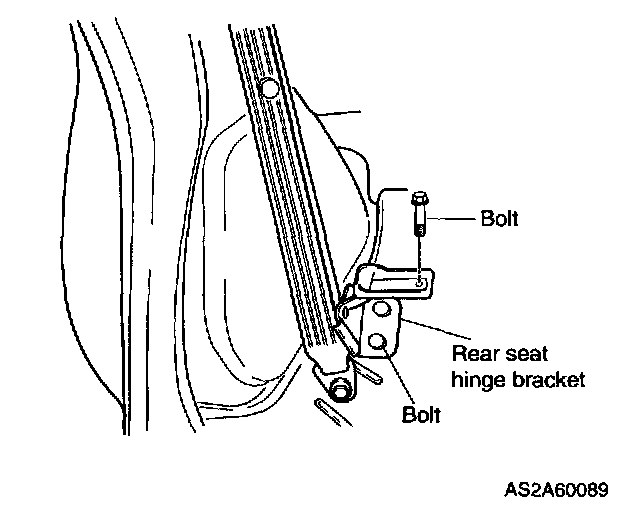

2. Remove lower anchor bolt of safety belt.

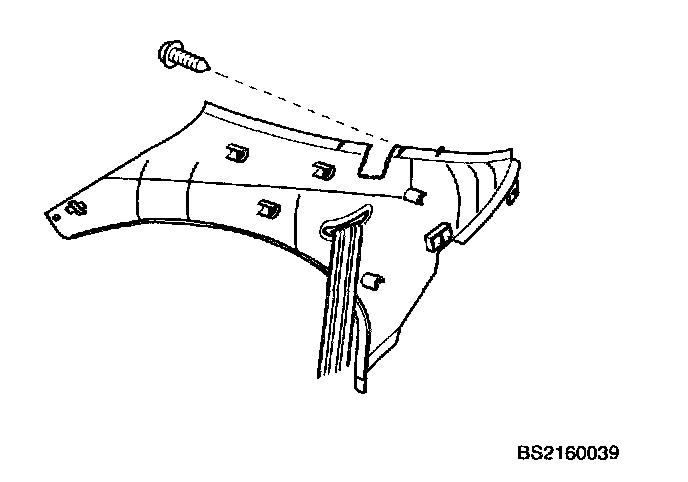

3. Remove one screw on C-pillar trim.
4. Unfasten C-pillar trim.
5. Remove C-pillar trim.

Installation
1. Position C-pillar trim and press in.
2. Install one screw on C-pillar trim.




3. Install lower anchor bolt of safety belt.

Tighten one bolt to 29 - 58 lb.ft (38 - 78 N.m, 3.9 - 8.0 kg.m)

4. Install rear seat cushion.
