Center Panel Trim

Removal
1. Remove ashtray.
2. Remove one trim mounting screw.
3. Disconnect harness connector from cigarette lighter.

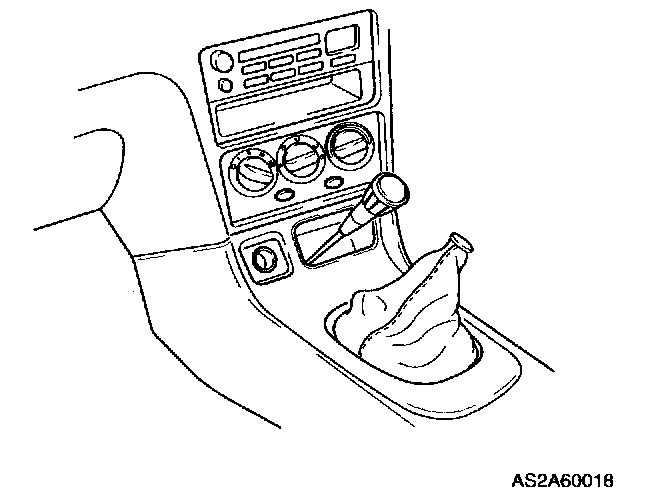

4. Remove trim from instrument panel in an arrow direction. Automatic shift lever will need to be shifted to rear-most position.

Installation
1. Connect harness connector to rear of cigarette lighter.
2. Mount trim in position.
3. Install one mounting screw.
4. Install ashtray.
