Trunk / Liftgate Shock / Support: Service and Repair

Rear hatch damper stay

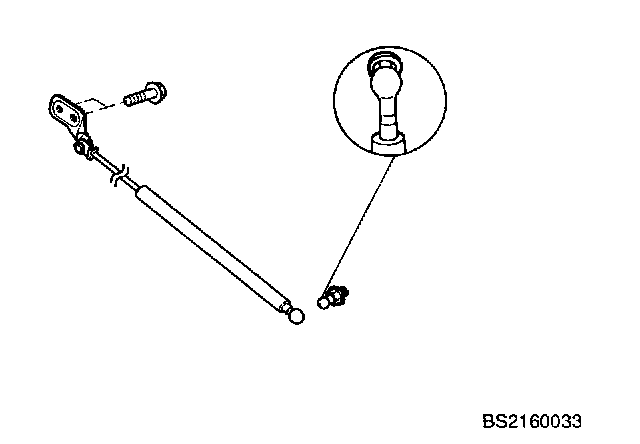

Removal
1. Open the rear hatch and suitably support.




2. Remove one upper ball stud nut from the damper stay.




3. Remove two lower retaining bolts from the damper stay.




4. Remove damper stay.

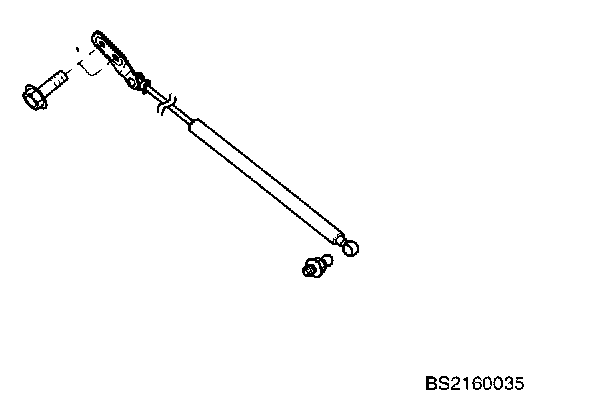

Installation

1. Position the damper stay.
2. install two lower retaining bolts on the damper stay.

Tighten two lower retaining bolts to 80 lb.in (9 N.m).

3. Install one upper ball stud nut of the damper stay.

Tighten one upper ball stud nut to 14 lb.ft (19.5 N.m).




4. Close rear hatch.
