Front Door Panel: Service and Repair

Removal

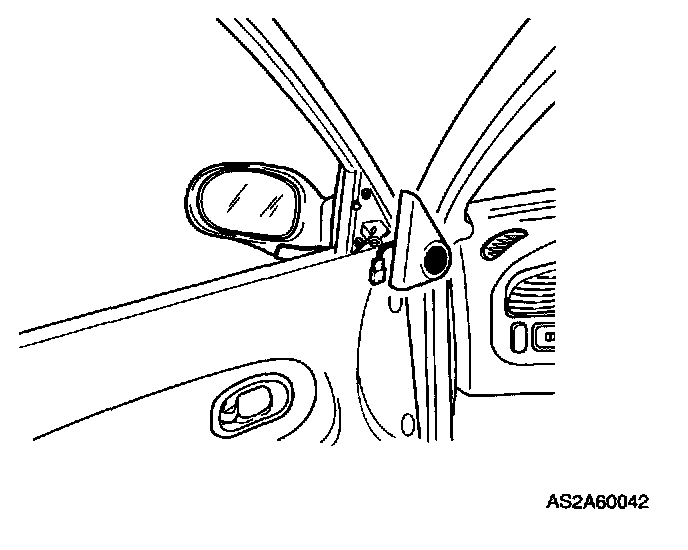

1. Remove speaker garnish.

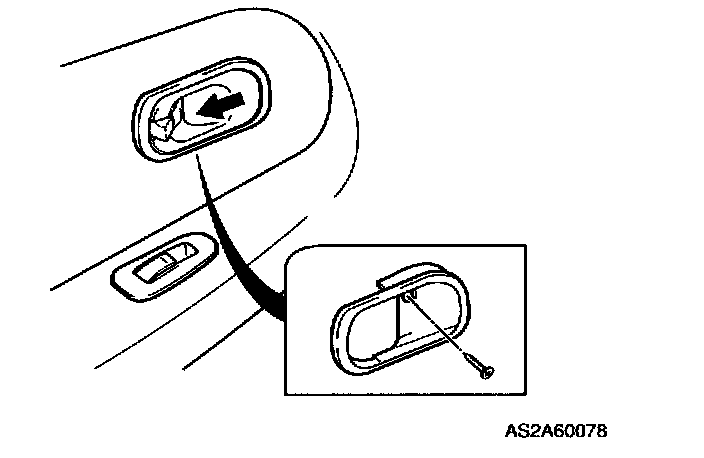

2. Remove one screw on inside door handle cover.




3. Remove inside door handle cover.
4. Remove one screw on door handle pull.




5. Remove door handle pull.

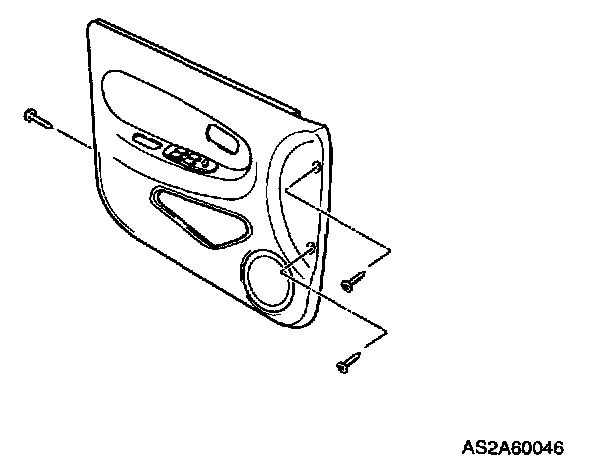

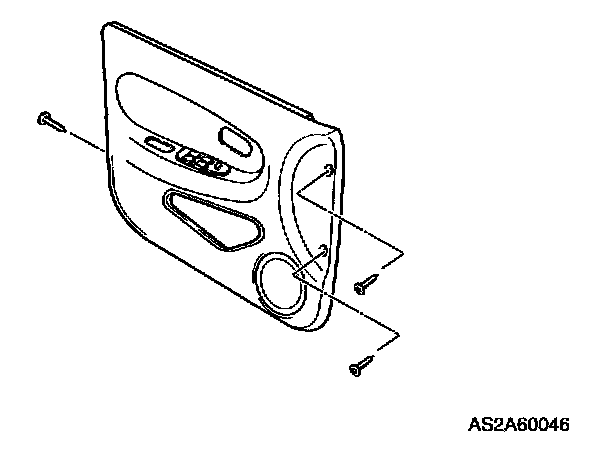

6. Remove two caps on right side of front trim, and then remove two screws.




7. Remove one screw on left side of front trim.

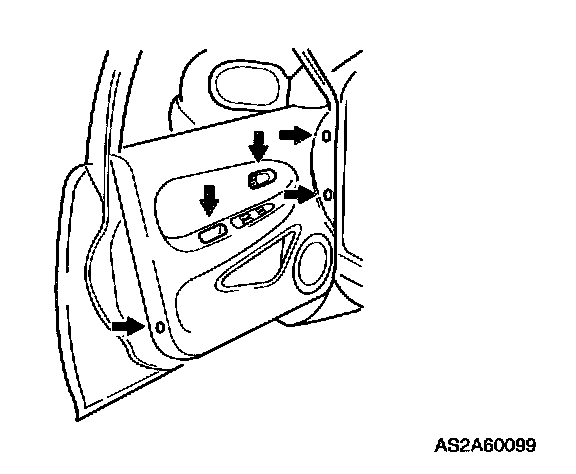

8. Unfasten front door trim with a trim removal tool.
9. Remove front door trim by lifting front door trim up.

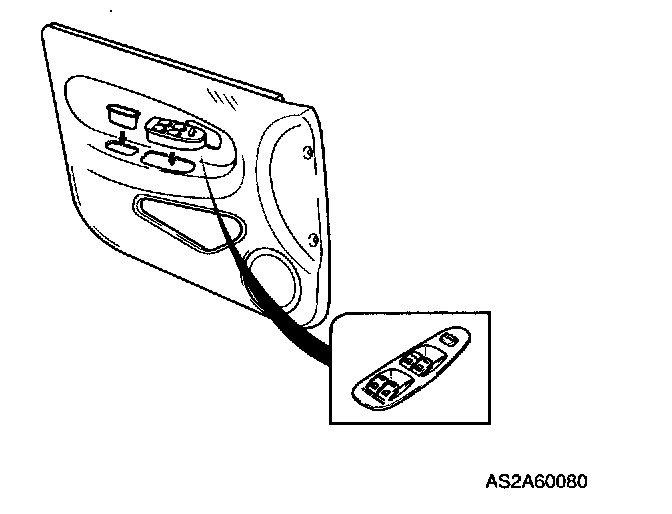

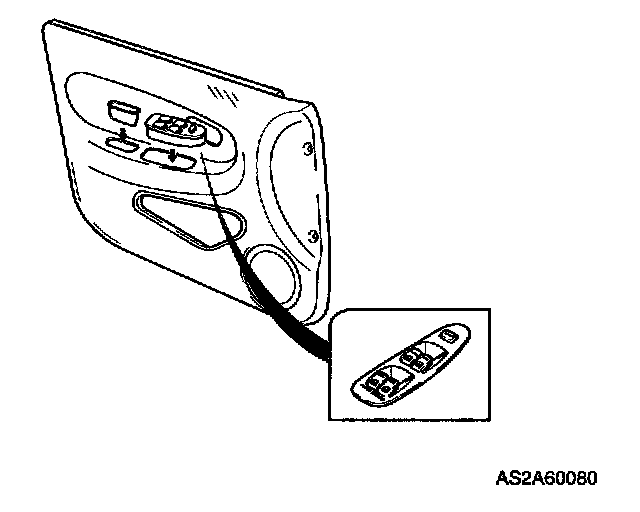

10. Disconnect power window operating switch connector.

Installation

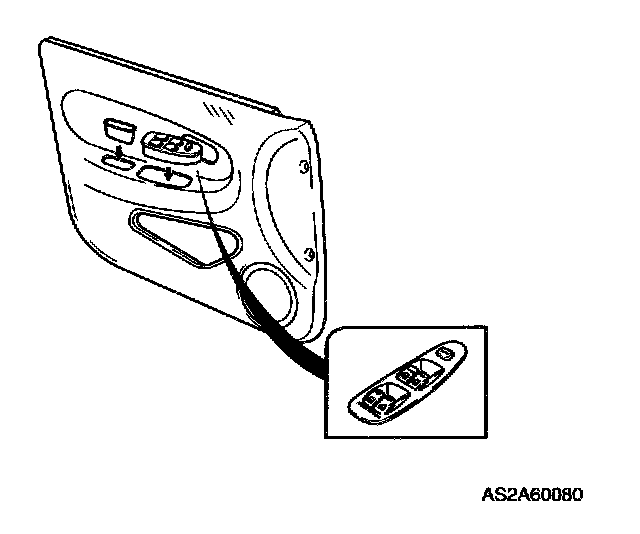

1. Connect power window switch connector.
2. Place front door trim.

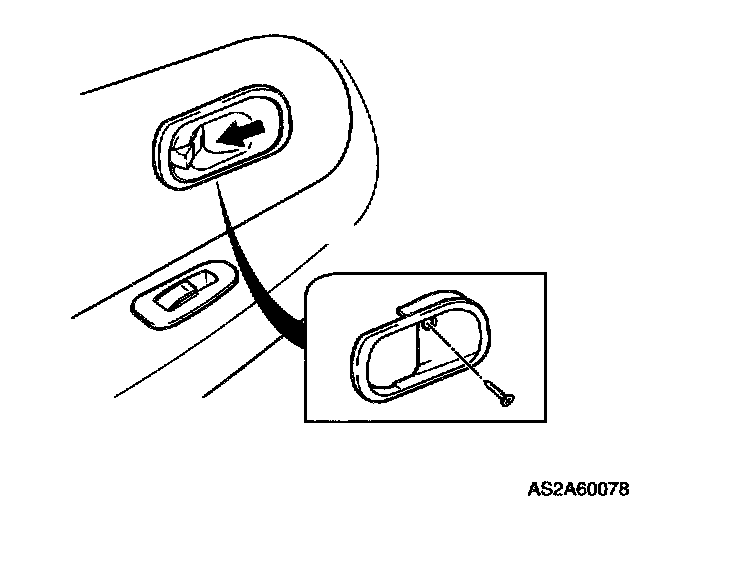

3. Install inside door handle cover.
4. Install one screw on inside door handle cover.
5. Install door handle pull.
6. Install one screw on door handle pull.
7. Press in front door trim.
8. Install one screw at left side of door trim.




9. Install two screws at right side of door trim.

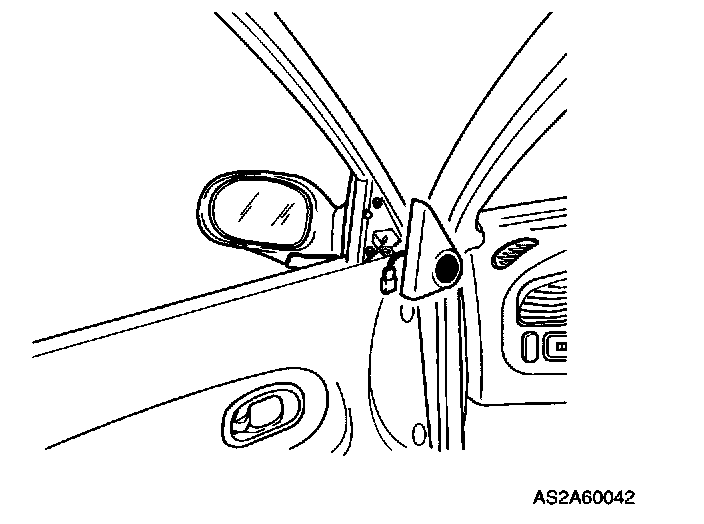

10. Install speaker garnish.
