Doors: Description and Operation

Front Door:

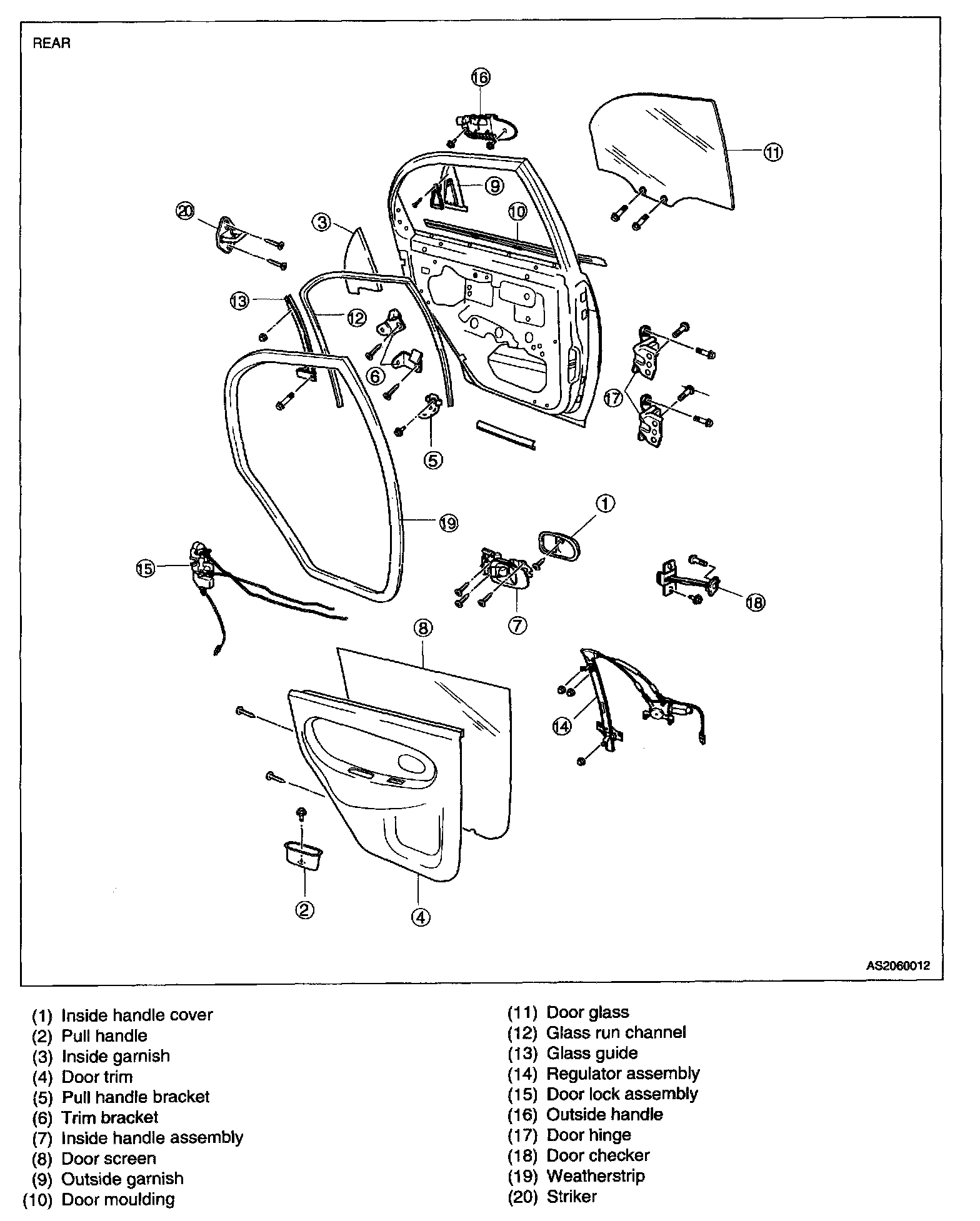

Rear Door:

Vehicle door is attached to vehicle body by two hinges and a door checker. Door checker limits swing of vehicle door. A hollow rubber weatherstrip is installed on door opening flange which prevents leaks between vehicle door and inside of vehicle body.

Door lock assembly is linked with outside door handle and inside door handle.

Power window is comprised of a window regulator assembly (on which glass is fastened), a front glass guide (which guides movement of glass at front side) and a window power switch (switch for up and down movement of glass, which is attached to armrest). A plastic door screen cover door frame, protecting all components. Door striker may be adjusted for proper operation and easy door closure.
