Primary Shaft Assembly

Primary shaft assembly

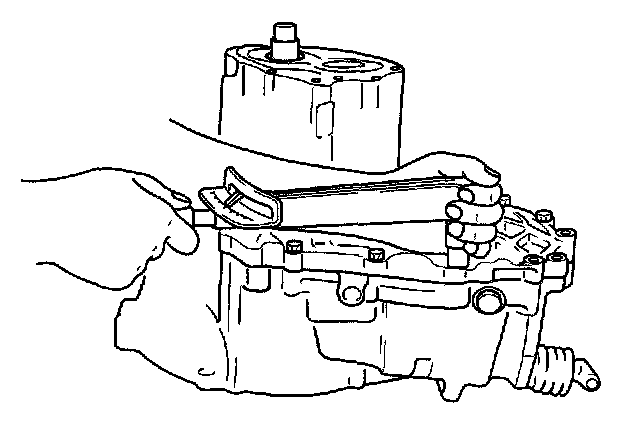

1. Set the primary shaft assembly into the clutch housing.





2. Install the transaxle case to the clutch housing and tighten bolts to the specified torque.
Tightening torque: 14 - 19 ft. lbs. (19 - 26 Nm, 1.9 - 2.6 kg-m)

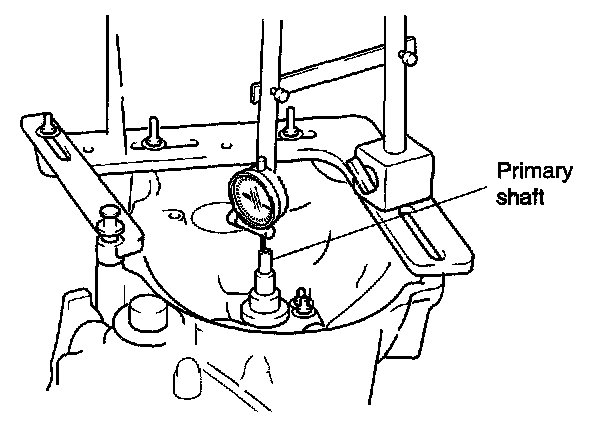

3. Mount the dial indicator to the transaxle hanger and measure the primary shaft thrust clearance.
Clearance: 0 - 0.004 inch (0 - 0.10 mm)
4. Select the closest shim on the thin side from the table.
Thickness of adjustment shim: 0.012 inch (0.3 mm), 0.016 inch (0.4 mm), 0.02 inch (0.5 mm)
