Differential

Differential
1. Install the bearing outer race into the clutch housing.





2. Set the differential assembly into the clutch housing.

Notice: Turn A and B until the gap shown in figure is eliminated.

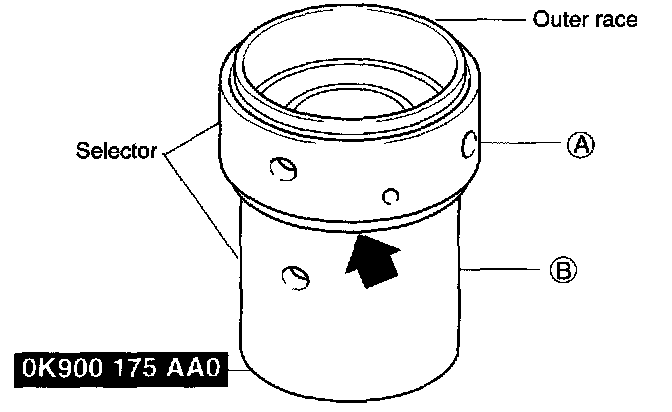

3. Install the transaxle case side bearing outer race to a SST(OK900 175 AAO).

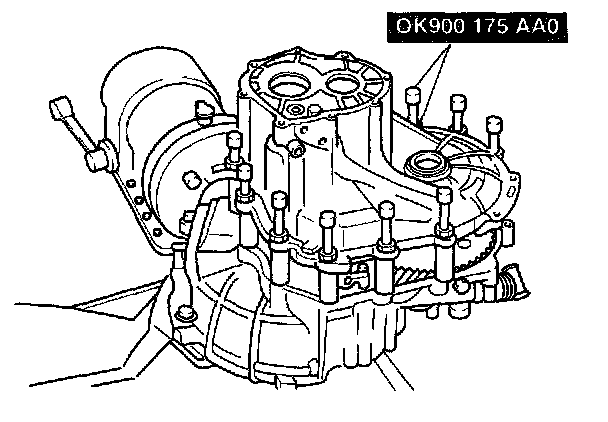

4. Set the SST (OK900 175 AAO) in the positions shown in figure.





5. Tighten the SST (OK900 175 AAO) to the specified torque.
Tightening torque: 14 - 19 ft. lbs. (19 - 26 Nm, 1.9 - 2.6 kg-m)





Notice: Turn the bars until SST (OK900 175 AAO) can no longer be moved.

6. To set the bearings, mount the bars on parts A and B of the selector, and turn the selector so the gap is widened.
7. Turn in the reverse direction until the gap is eliminated.

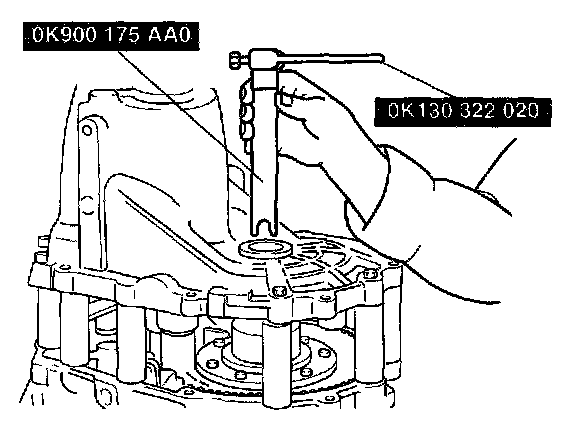

8. Install SST (OK900 175 AAO/OK130 322 020) to the differential pinion gear, through the transaxle case.

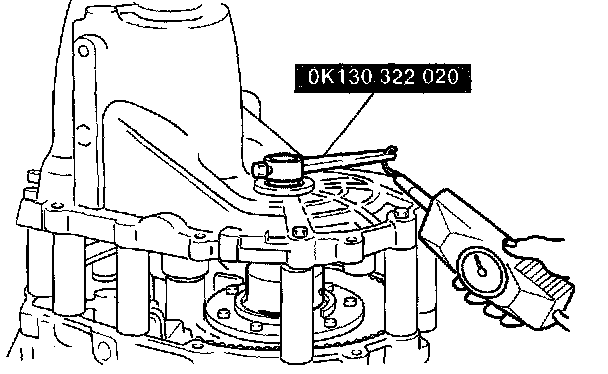

9. Turn the SST (OK130 322 020) with a spring balance. Until the specified preload can be obtained, adjust the SST (Selector) with a bar.
Preload: 10 - 14 inch lbs. (1.4 - 2.0 Nm, 14 - 20 kg-cm)

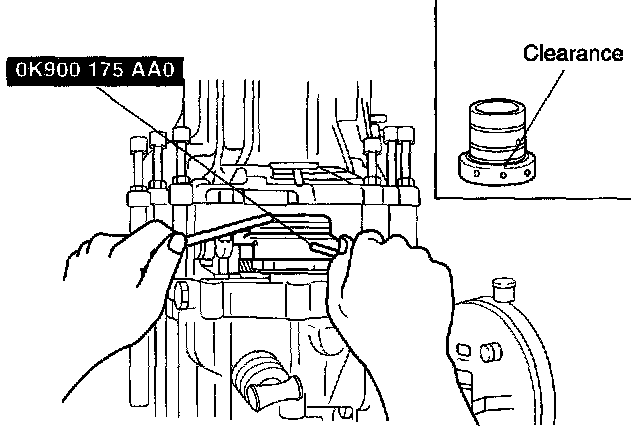

11. Measure the clearance around the entire circumference of the SST (OK900 175 AAO).





12. Select the proper adjust shim(s) to be used for the differential by referring to the table and selecting the shim which is nearest (on the thick side) to the largest measured clearance in the selector.

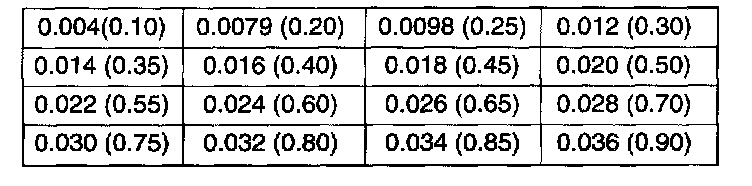

Thickness of adjust shim inch (mm)

13. Remove the SST (OK900 175 AAO).
14. Remove the transaxle case and SST (OK900 175 AAO).
15. Remove the bearing outer race from the SST (OK900 175 AAO).





16. Install the selected shim and the bearing outer race to the transaxle case.
