Fluid - M/T: Testing and Inspection

Oil inspection
1. Raise vehicle and support it with safety stands.
2. Remove the speedometer driven gear.

Notice: Keep vehicle level when checking oil level.

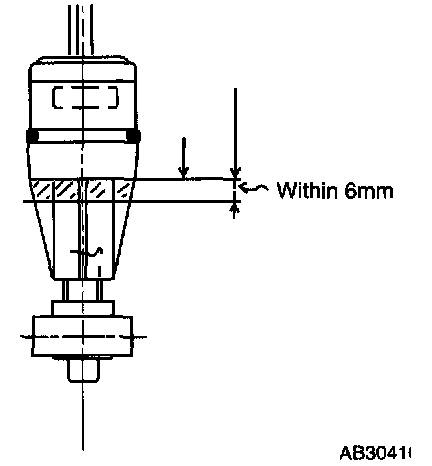

3. Verify that oil level is within the specification.





4. If oil level is low, fill specified amount and type of oil through the speedometer driven gear.
5. Reinstall the speedometer driven gear in case.
6. Lower vehicle.
