No.21-Excessive Shift Shock at P, N to R and/or N to D
No.21-Excessive Shift Shock at P, N to R and/or N to D
No.21-Excessive Shift Shock at P, N to R and/or N to D

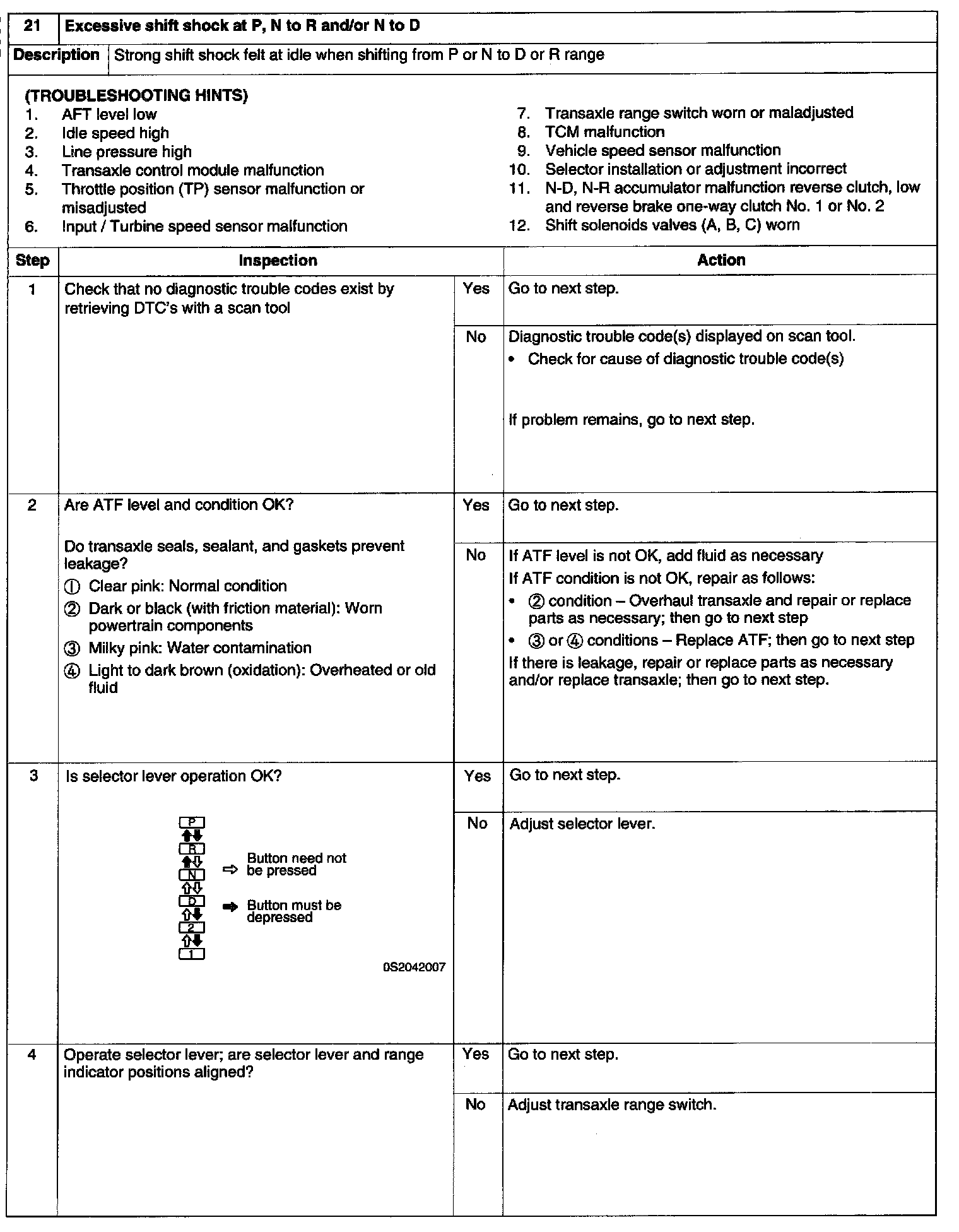

Step 1 - 4

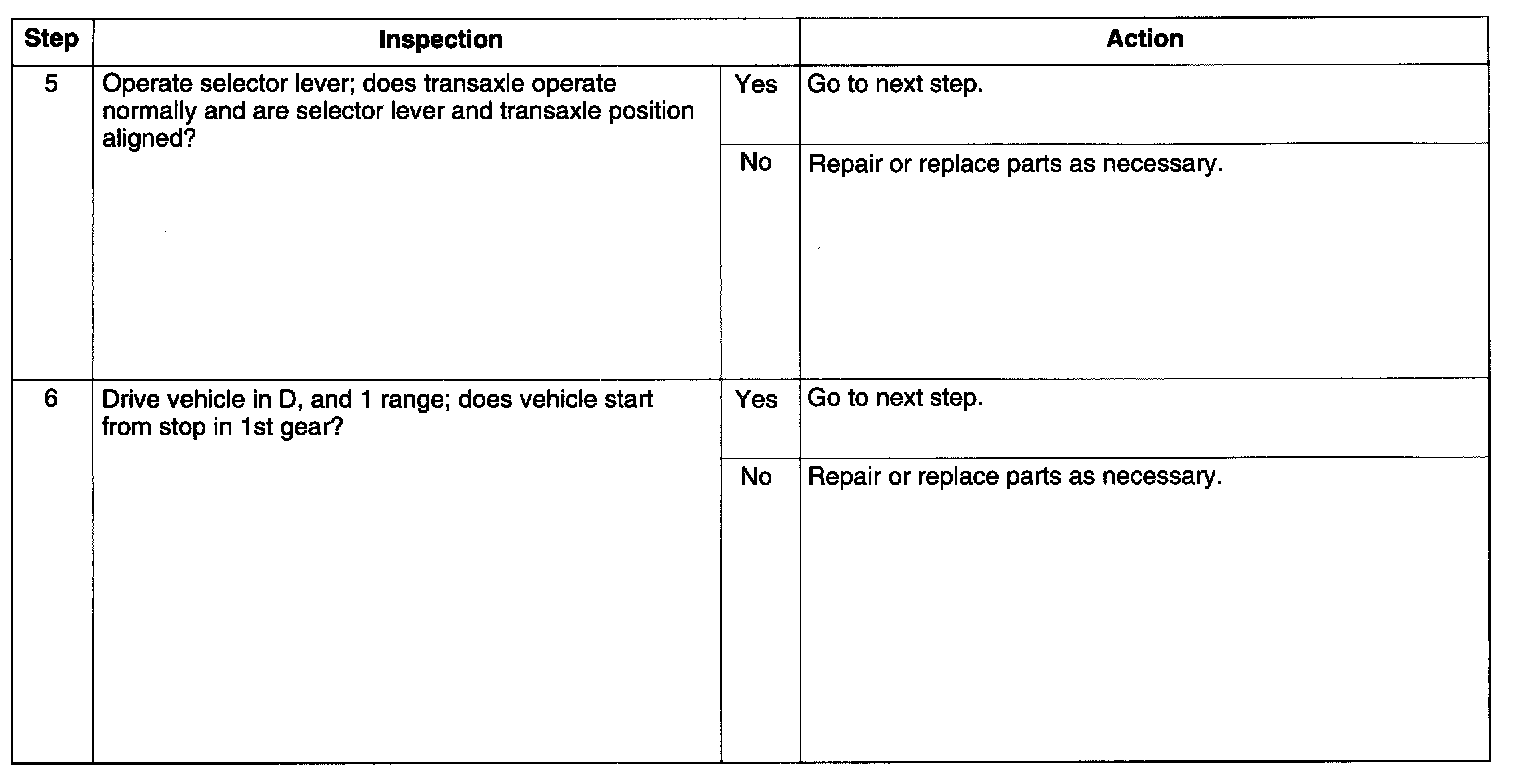

Step 5 - 6

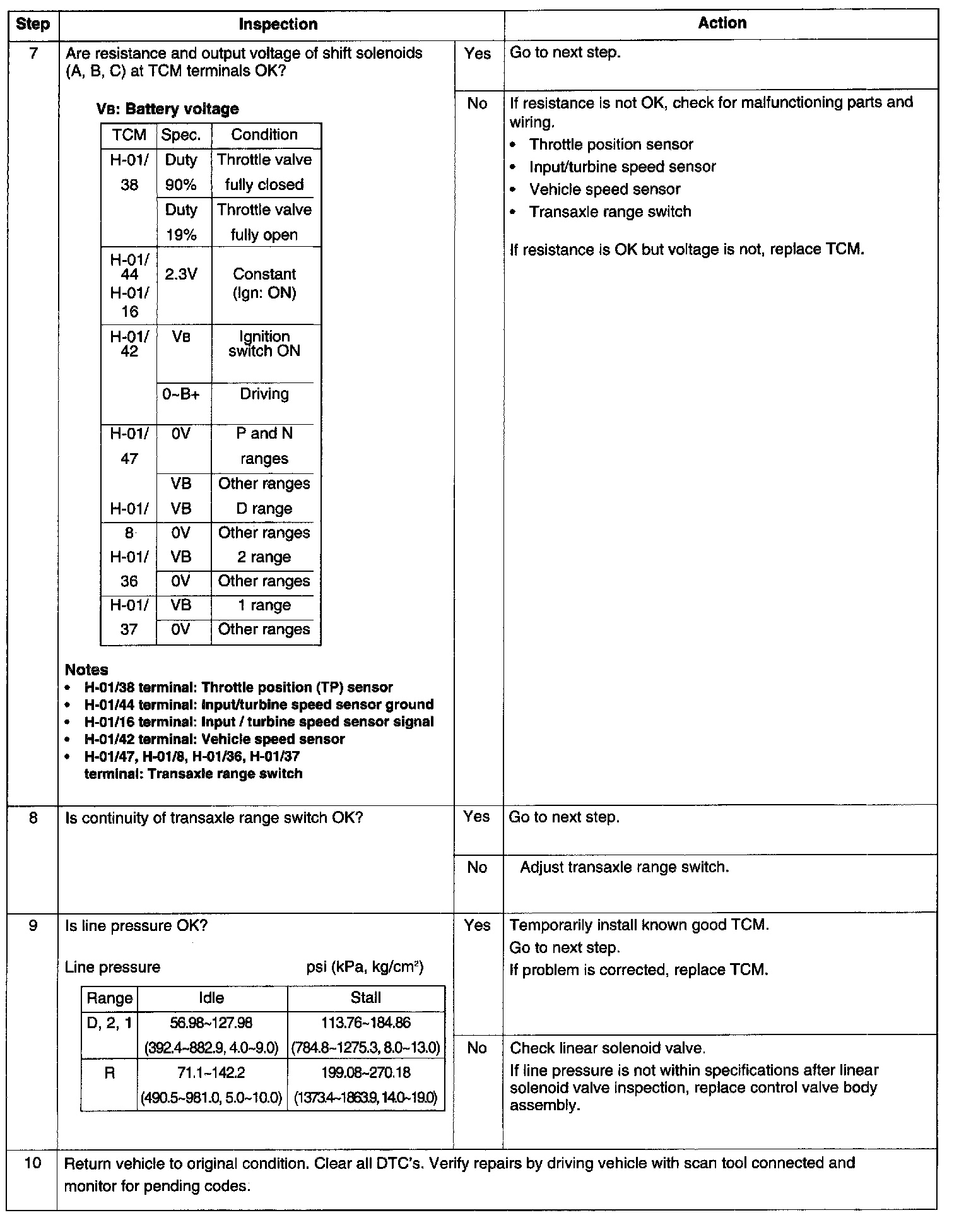

Step 7 - 10
