With Scan Tool

Inspection procedure

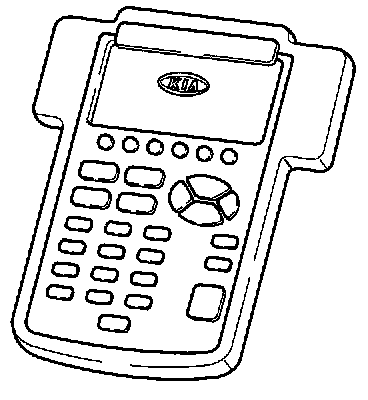

1. Connect SST (OK2CA 089 HSP) to data link connector.
2. Turn ignition switch to ON.
3. Check diagnostic trouble code(s), referring to Hi-scan Pro operating manual.
4. If a diagnostic trouble code(s) is displayed, check for cause by using number on diagnostic trouble code table. Repair as necessary.
5. After repairs, perform After-Repair procedure to verify that there are no remaining diagnostic trouble codes.
