Pinout Values and Diagnostic Parameters

TRANSAXLE CONTROL MODULE (TCM)





1 of 3





2 of 3





3 of 3

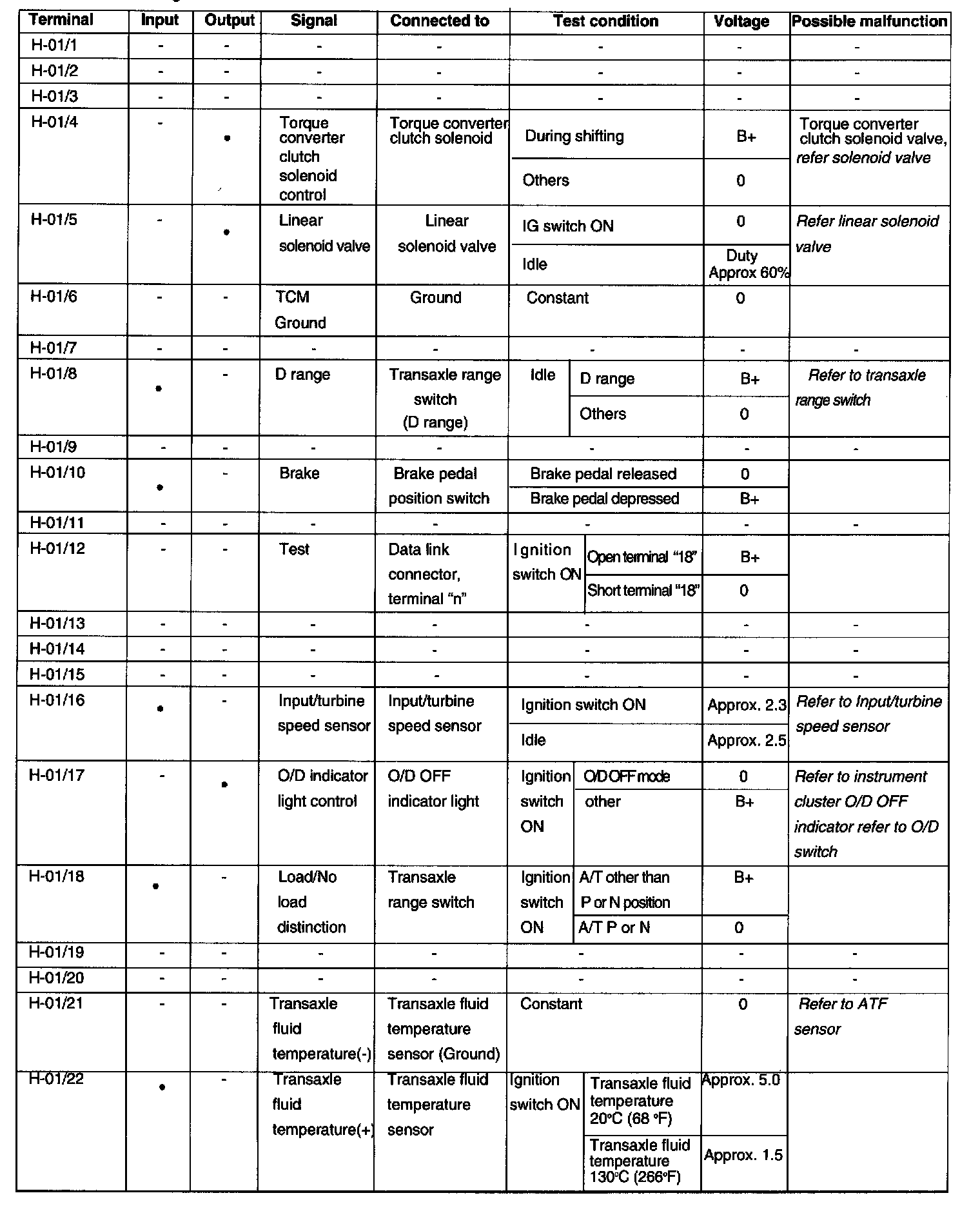

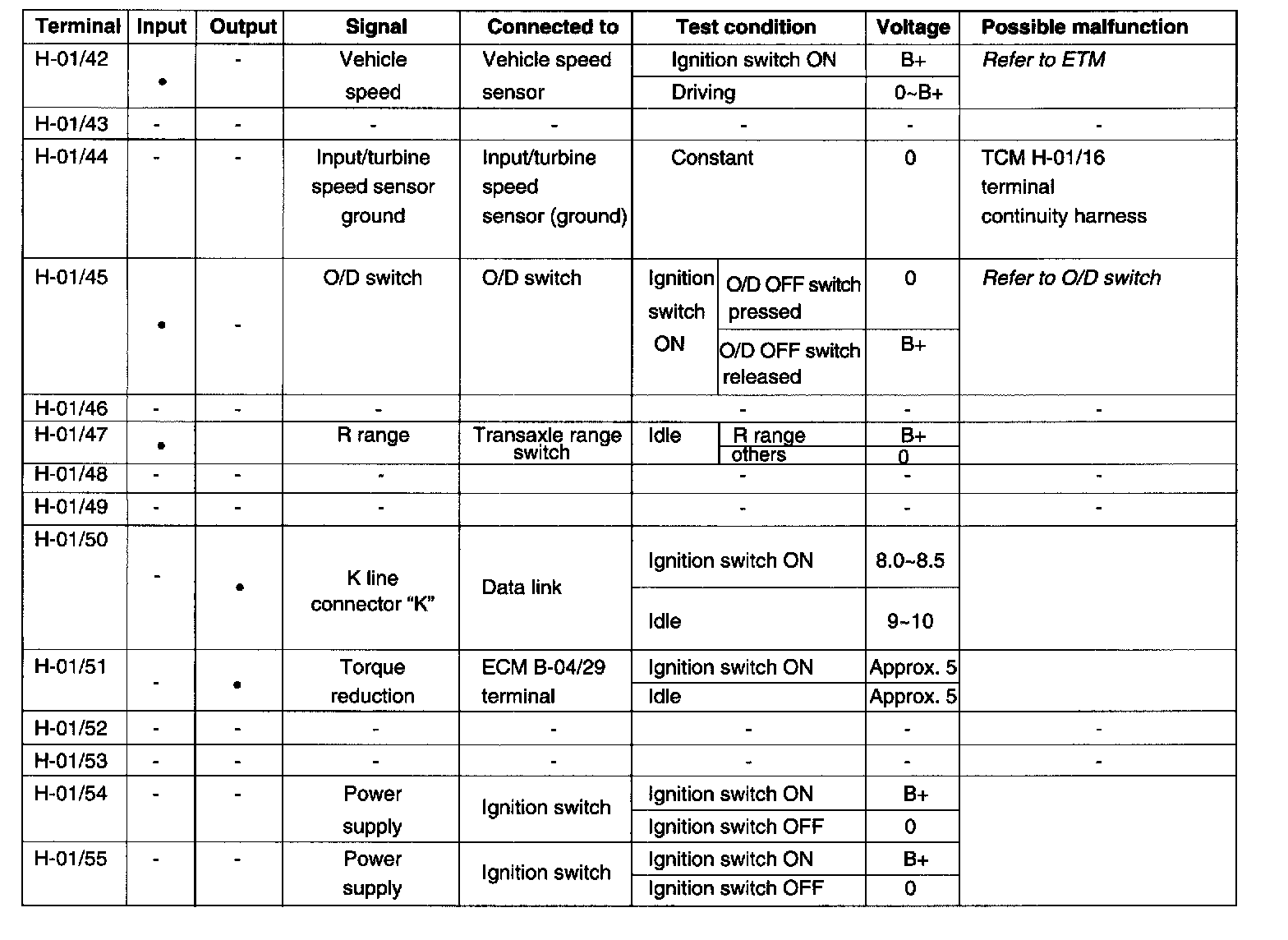

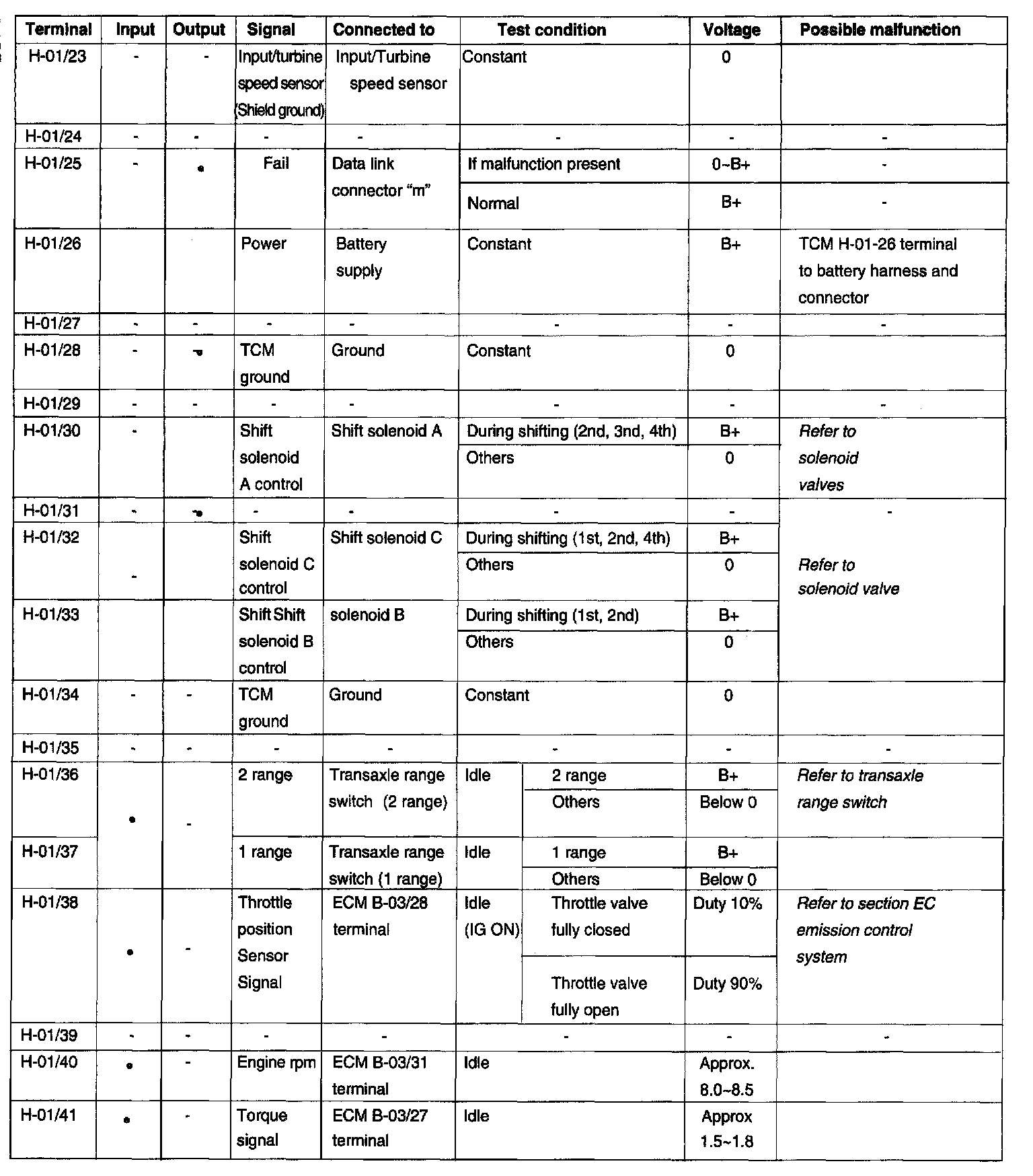

TCM terminal voltage chart
