Removal and Installation

Removal
1. Disconnect negative battery cable.
2. Remove ashtray then remove two screws.
3. Disconnect cigarette lighter connector then remove center panel.
4. Remove rear console and front console.
5. Shift selector lever to P range.

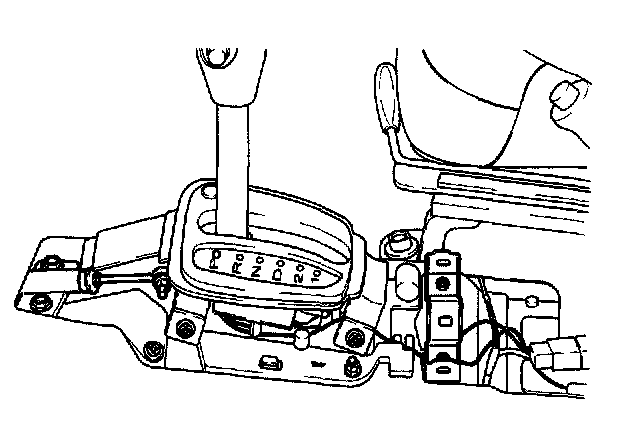

6. Remove selector cable mounting bolts.
7. Remove selector cable nut.
8. Loosen the shift lock cable nut and then disconnect the shift lock cable.
9. Remove the console bracket.





10. Disconnect the O/D OFF Connector.





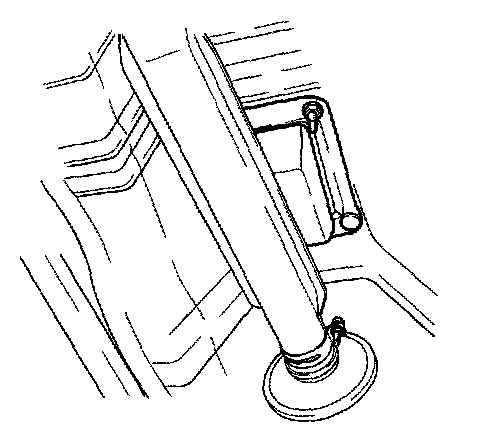

11. Loosen the set plate nut after raising the vehicle then disconnect the collector lever.

Replacement





1. Install selector lever then tighten selector lever base plate nuts.
Tightening torque: 11.5 - 16.6 ft. lbs. (15.7 - 22.6 Nm, 1.6 - 2.3 kg-m)

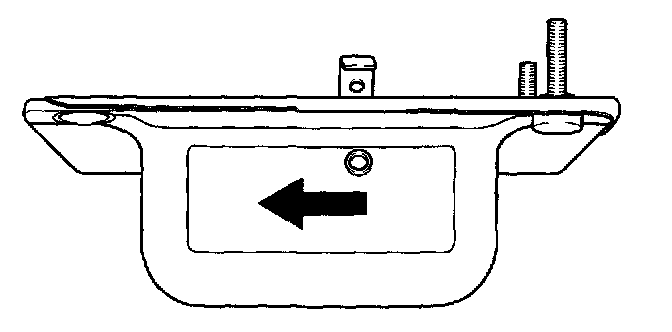

Notice: Install the set plate with the arrow headed to the front as shown in the figure.

2. Install the console bracket.
3. Connect the O/D OFF Connector.
4. Shift selector lever to P range.





5. Tighten selector lever base plate nut
Tightening torque: 60 - 86 inch lbs. (6.8 - 9.8 Nm, 70 - 100 kg-cm)
6. Tighten selector cable mounting bolt and nut.
Tightening torque: 60 - 86 inch lbs. (6.8 - 9.8 Nm, 70 - 100 kg-cm)
7. Tighten the shift lock cable nut.
Tightening torque: 7 - 10.8 ft. lbs. (9.8 - 14.7 Nm, 1.0 - 1.5 kg-m)
8. Install the front and rear console.
9. Install cover panel then connect cigar lighter connector.
10. Install ashtray.
11. Connect negative battery cable.
12. Verify correct operation of selector lever.
