Shift Interlock: Testing and Inspection

Inspection
Operation Inspection
1. Turn ignition switch to "ON" position.
2. Verify that the selector lever is shifted to P range.
3. Verify that the selector lever isn't shifted from P range to any other position with not applying the brake pedal.





4. Verify that selector lever isn't shifted without applying the brake pedal.
5. Shift the selector lever to R range.
6. Verify that ignition switch isn't shifted to LOCK position.
7. Shift the selector lever to P range.
8. Verify that ignition switch isn't shifted to LOCK position.
9. Repair it if necessary.

Manual release method of shift lock
1. Verify that the selector lever locks on the P range.
2. Press screwdriver after opening cap and putting it into the hole.





3. Shift selector lever.

Actuator Voltage & Continuity Inspection
1. Remove console

Notice: Remove N-01 connector when checking the continuity between connector terminal and ground terminal.

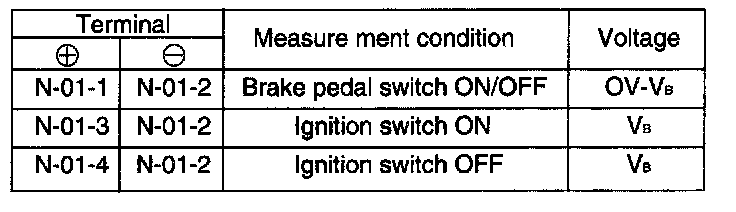

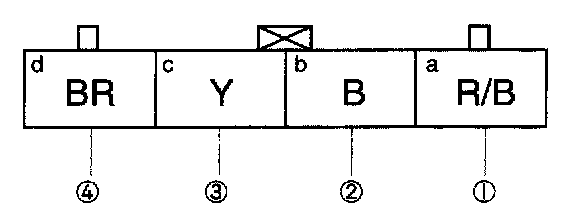

2. Shift the selector lever to P range and inspect terminal voltage and continuity.





1 of 2





2 of 2

3. Replace the actuator or repair wiring harness if necessary.
