Shift Interlock: Description and Operation
Description and OperationOperation
To operate actuator and move the selector lever, operation conditions of shift lock system installed on the automatic transaxle are just ignition switch 'ON', brake switch 'ON' end shift selector lever 'P' range. Also, ignition switch can be pulled out when only shifting 'P' range.

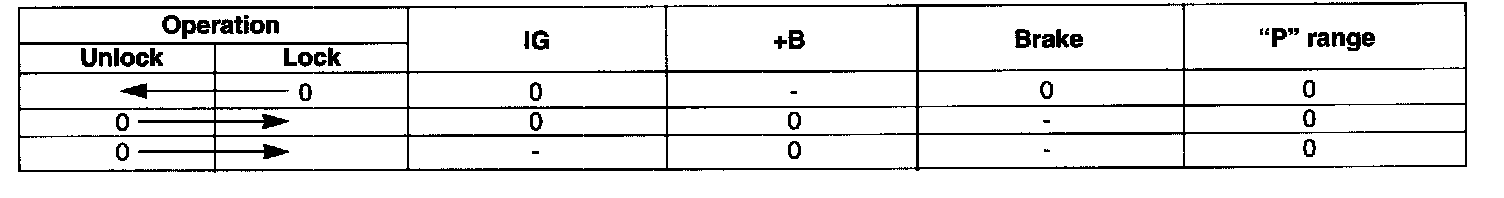

Detail operation condition

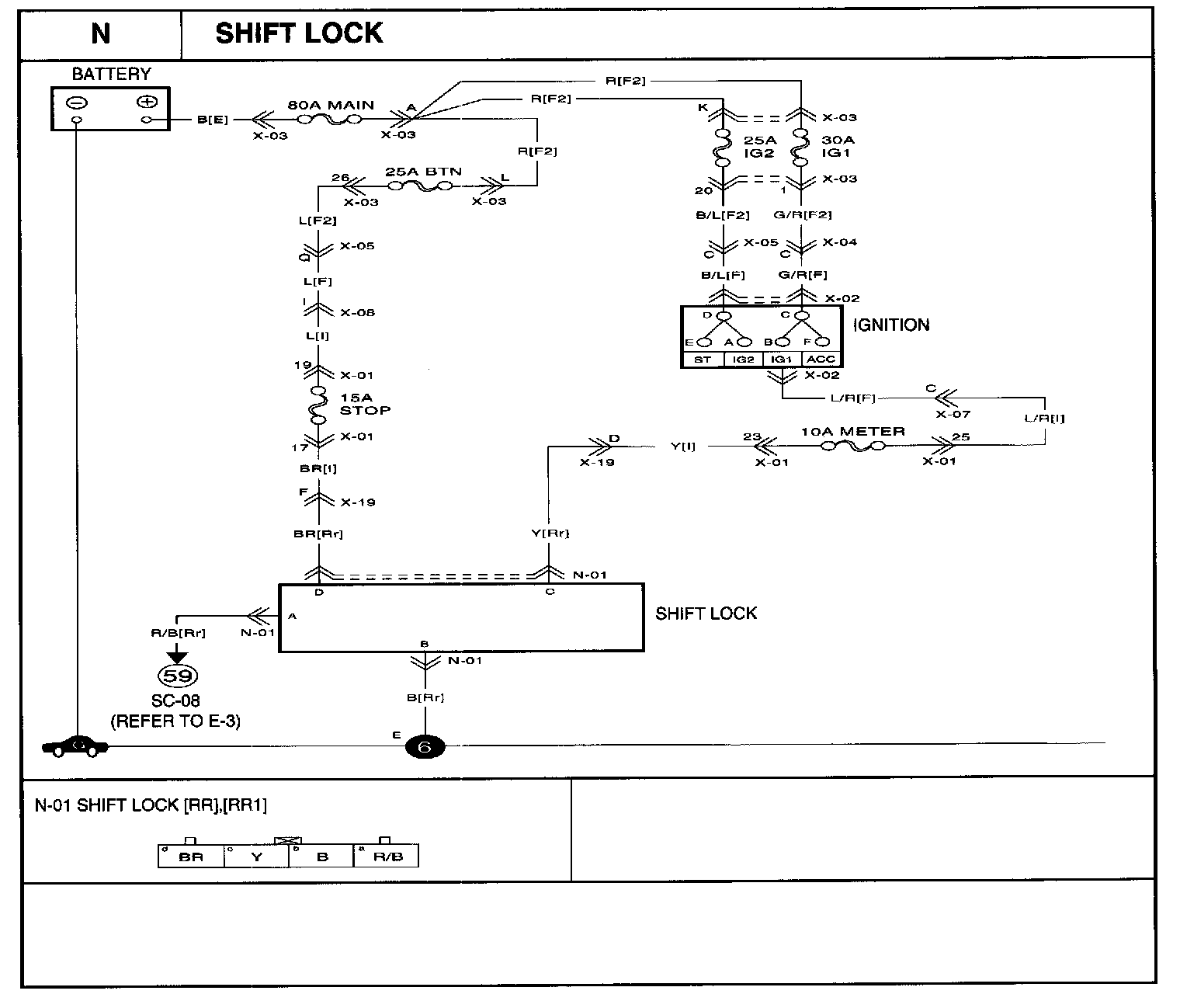

Wiring harness diagram
