Automatic Transmission/Transaxle: Description and Operation
DESCRIPTION AND OPERATION

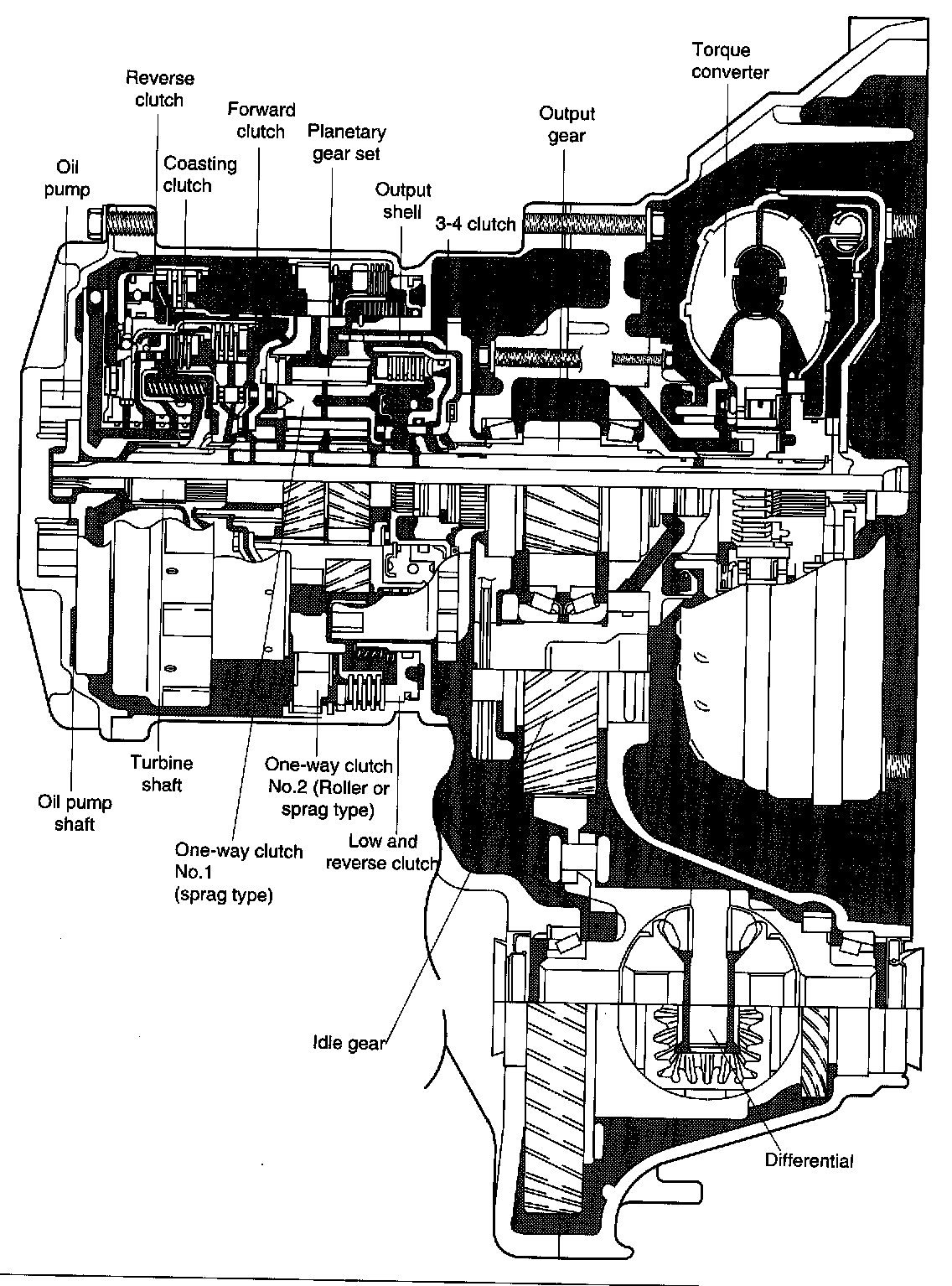

Cross-sectional view

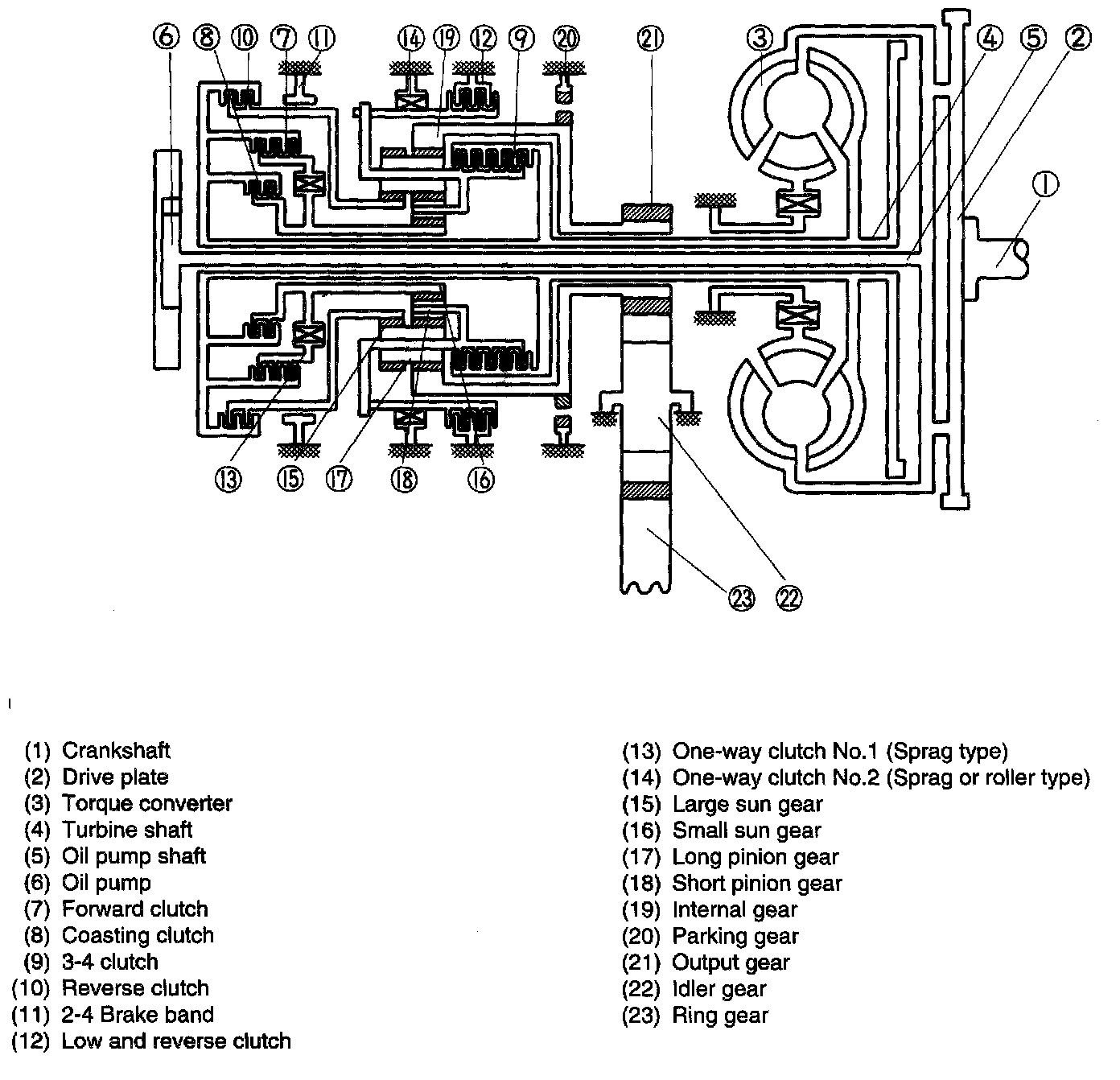

Power flow diagram

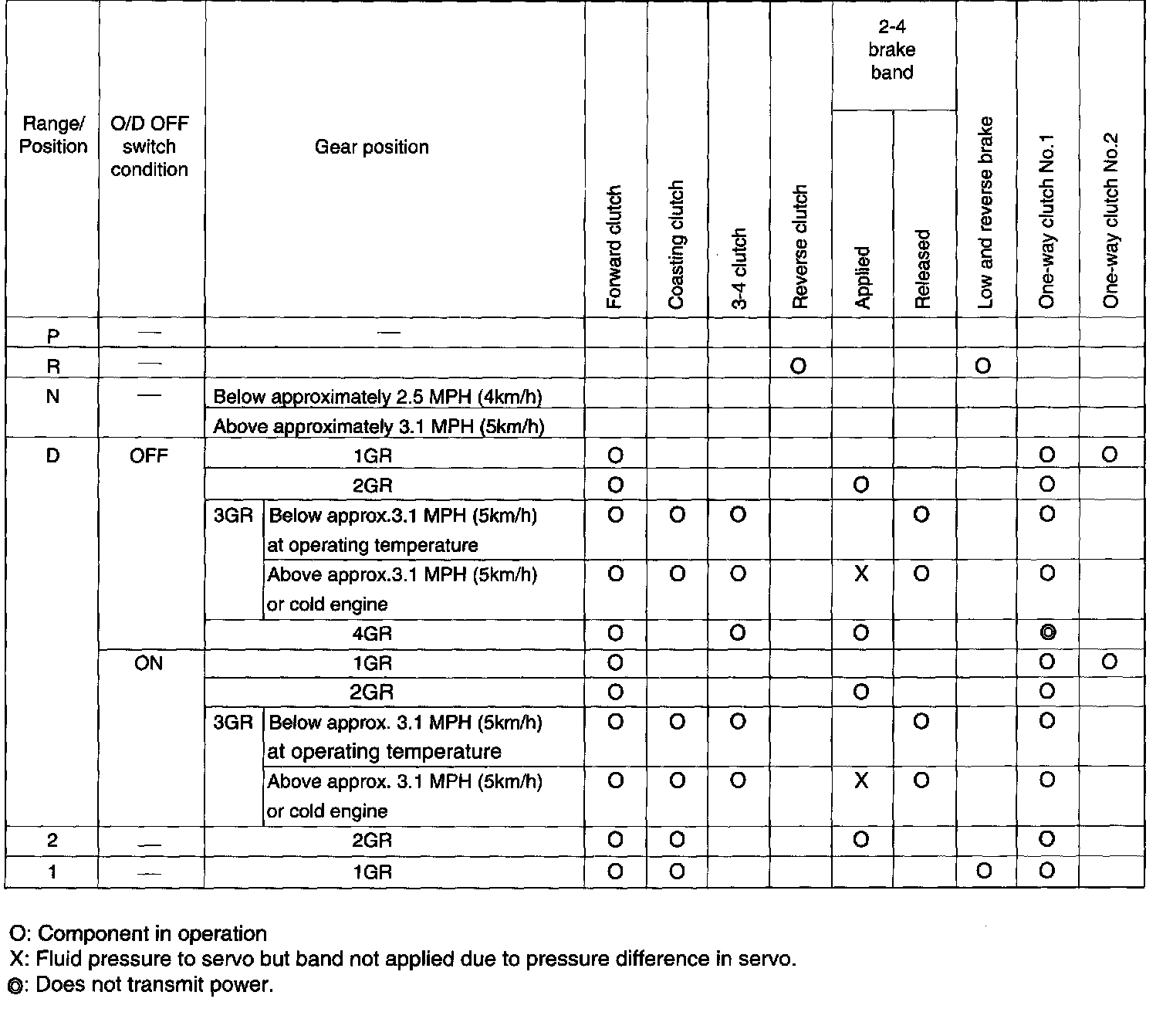

Component operation table: O/D OFF system

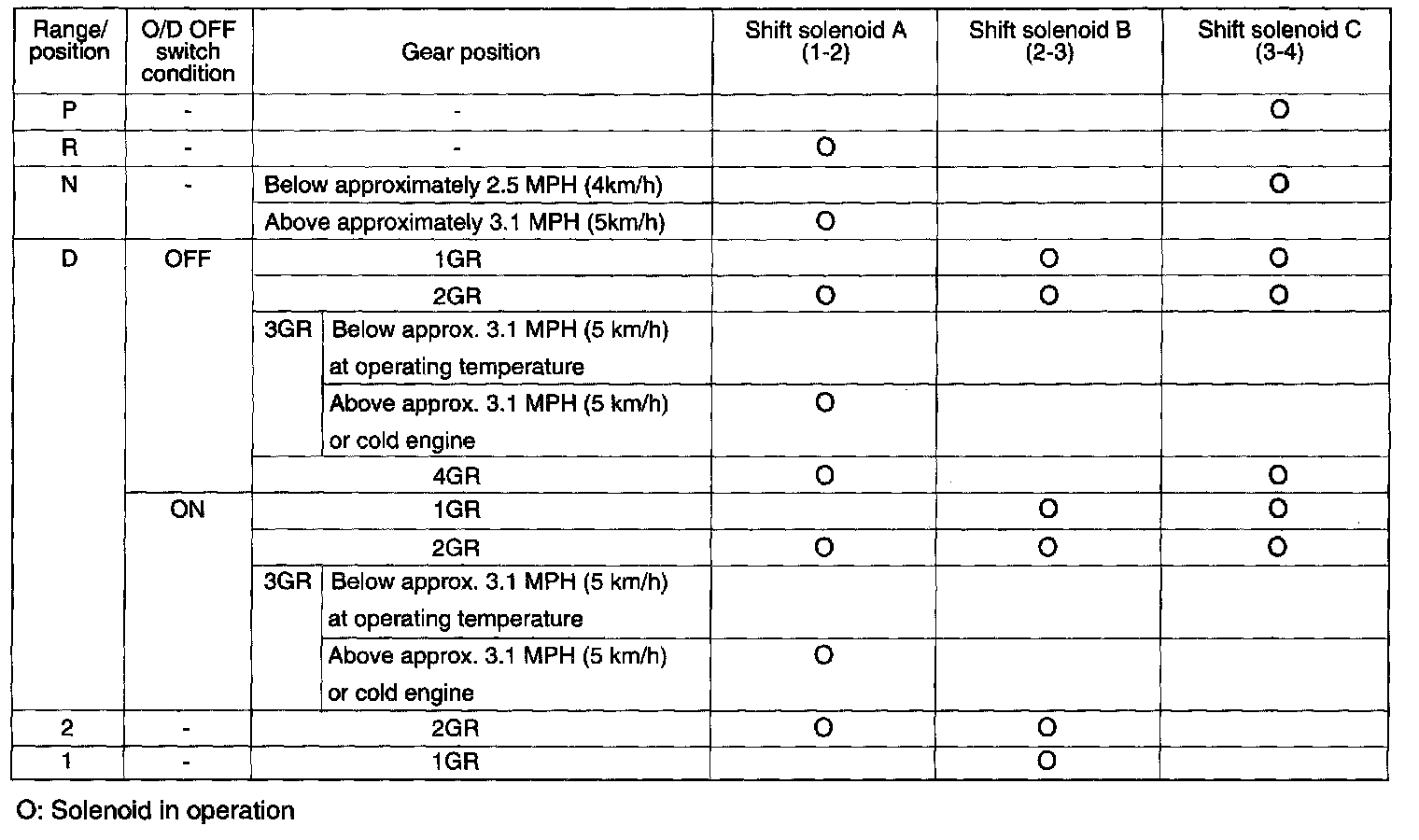

Solenoid valve operation table: O/D OFF system
Cross-sectional view
Power flow diagram
Component operation table: O/D OFF system
Solenoid valve operation table: O/D OFF system
