Wheel and Tire Runout

Wheel and tire runout
1. Jack up the vehicle and place it on safety stands.

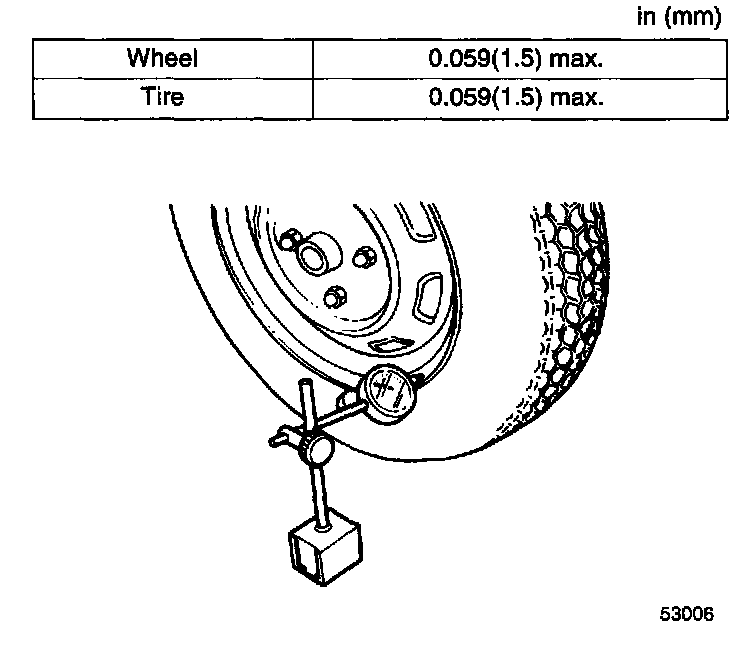

2. Set the probe of a dial indicator against the wheel, and measure the runout through one full revolution.





Runout
3. Replace the wheel if necessary.

Caution Adjust wheel balance after replacement of a wheel or tire.
