Home >> Kia >> 2001 >> Rio L4-1.5L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Interior Lighting Module >> Testing and Inspection >> Symptom-Related Diagnostic Procedures >> PRD1 - Room Lamp Does Not Operate In "Door" Position

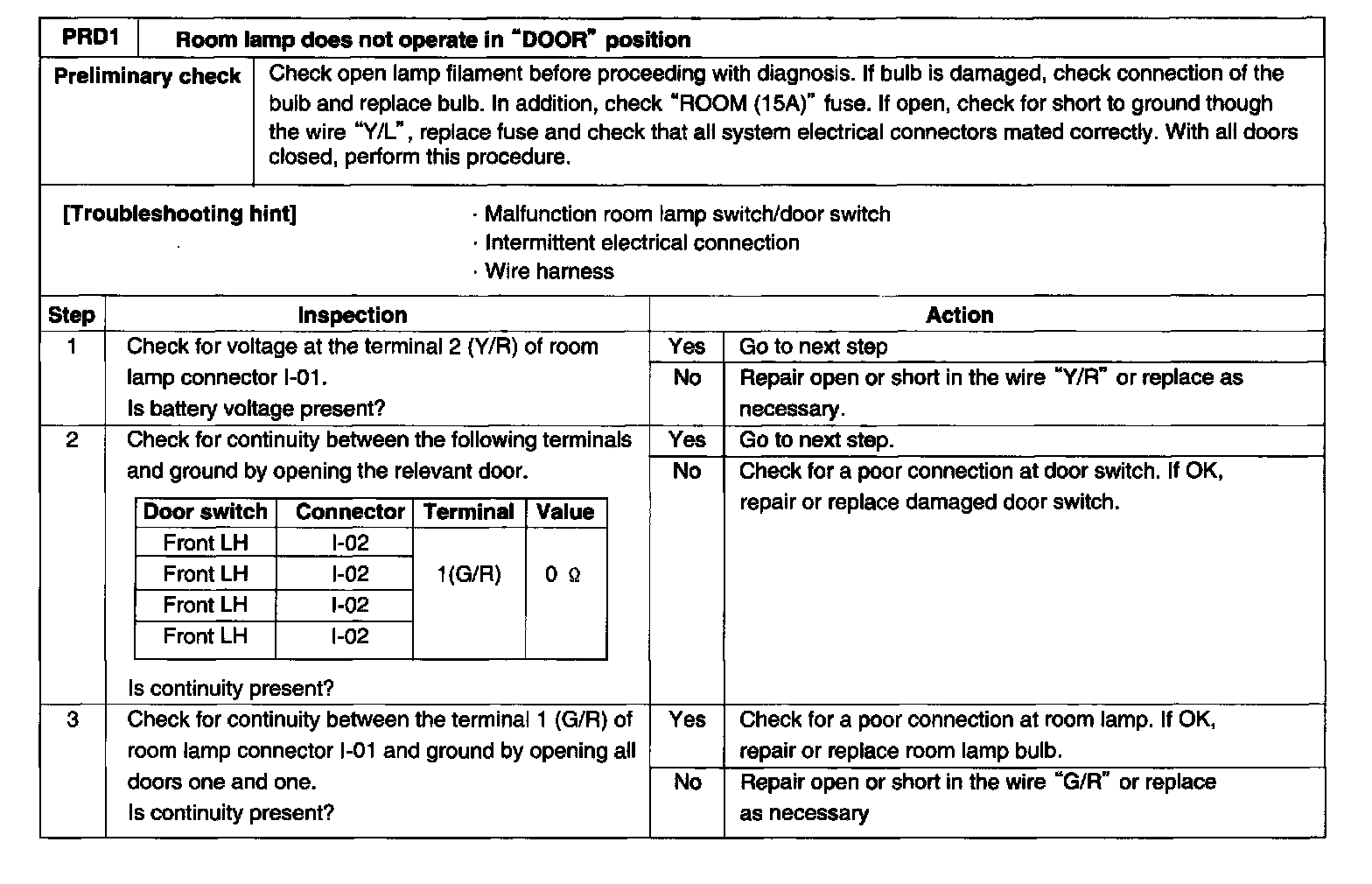

PRD1 - Room Lamp Does Not Operate In "Door" Position

Step 1 - 3:
