Injector Resistance


Injector resistance
1. Disconnect injector harness.

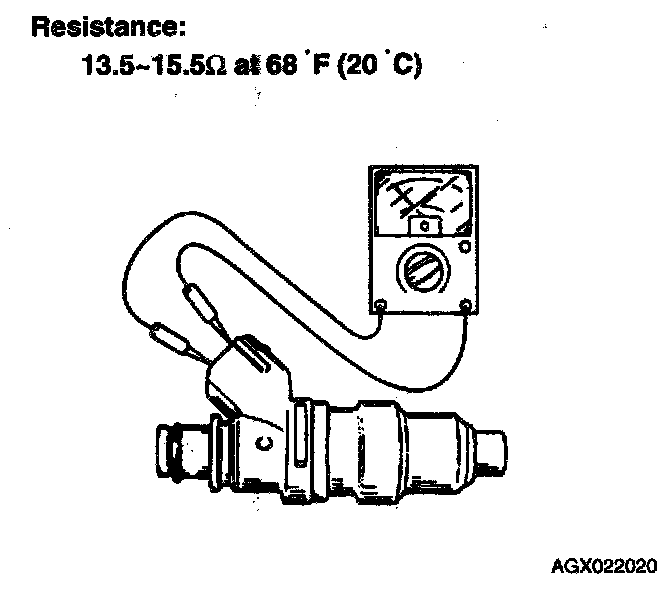

2. Measure resistance of each injector.
3. If not within specification, replace injector.
