Home >> Kia >> 2001 >> Rio L4-1.5L >> Repair and Diagnosis >> Lighting and Horns >> Tail Lamp >> Testing and Inspection >> PRD3 - Backup Lights Do Not Operate

PRD3 - Backup Lights Do Not Operate

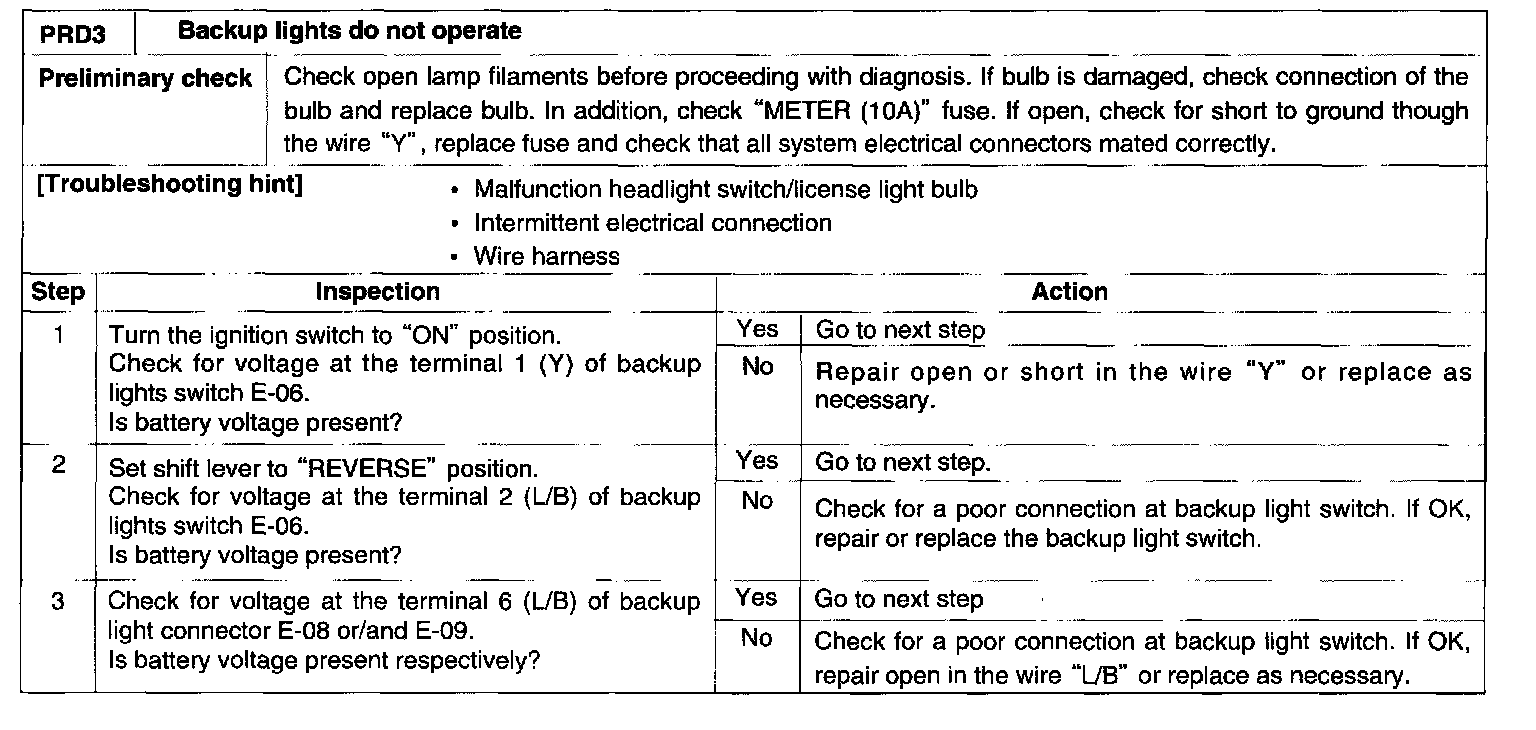

Step 1 - 3:

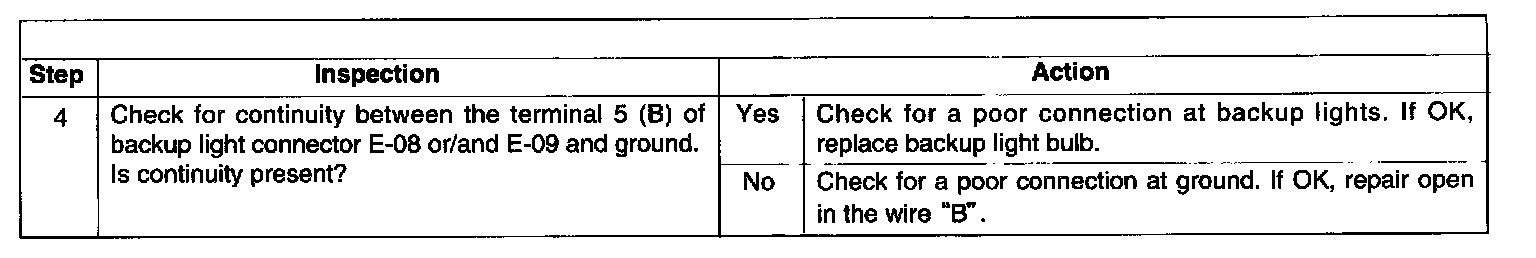

Step 4:
