Home >> Kia >> 2001 >> Rio L4-1.5L >> Repair and Diagnosis >> Lighting and Horns >> Tail Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

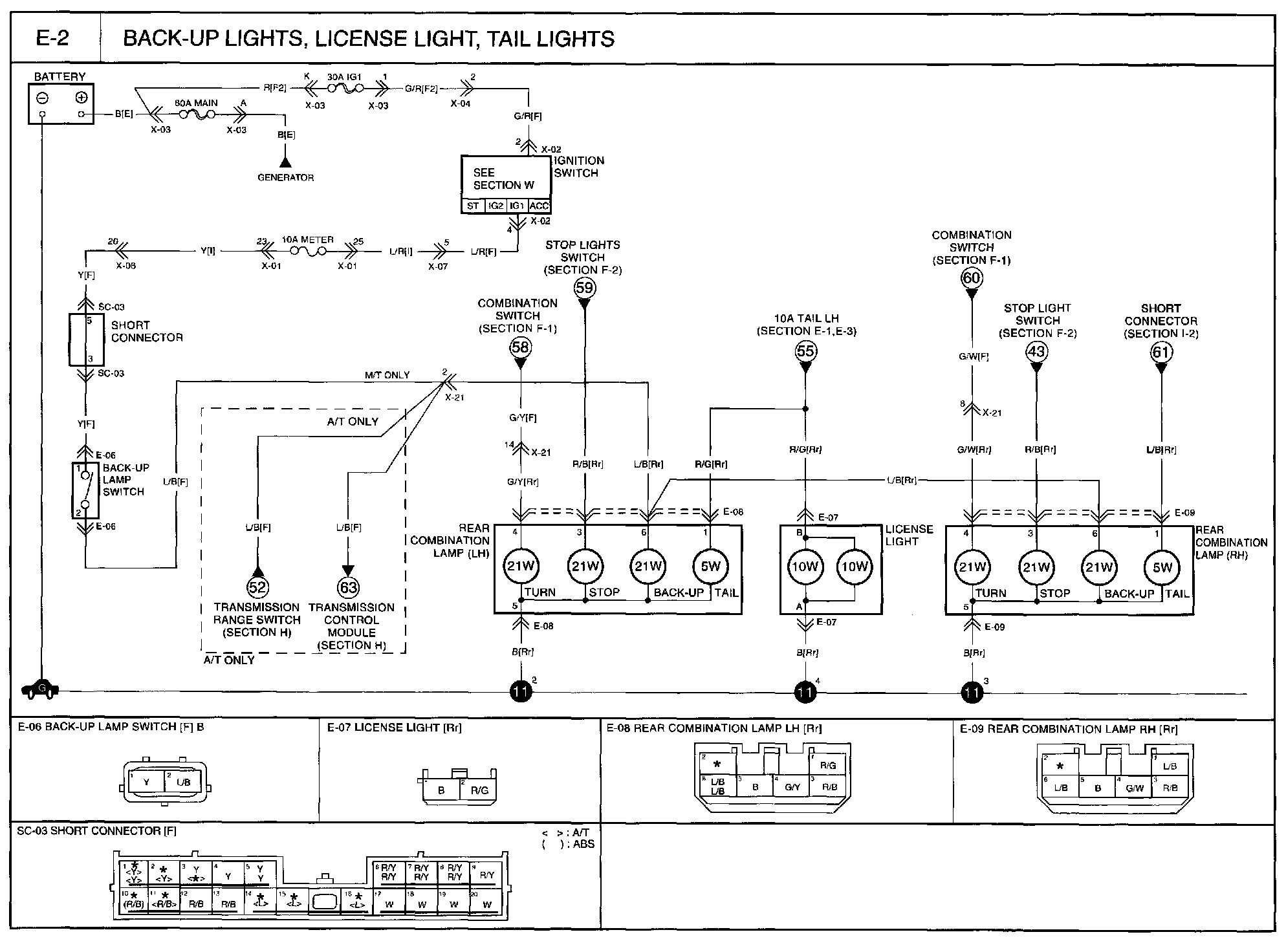

E-2 - Back-Up Light, License Light, Tail Lights Circuit:
