Home >> Kia >> 2001 >> Rio L4-1.5L >> Repair and Diagnosis >> Lighting and Horns >> Relays and Modules - Lighting and Horns >> Interior Lighting Module >> Locations >> Harness Locations

Harness Locations

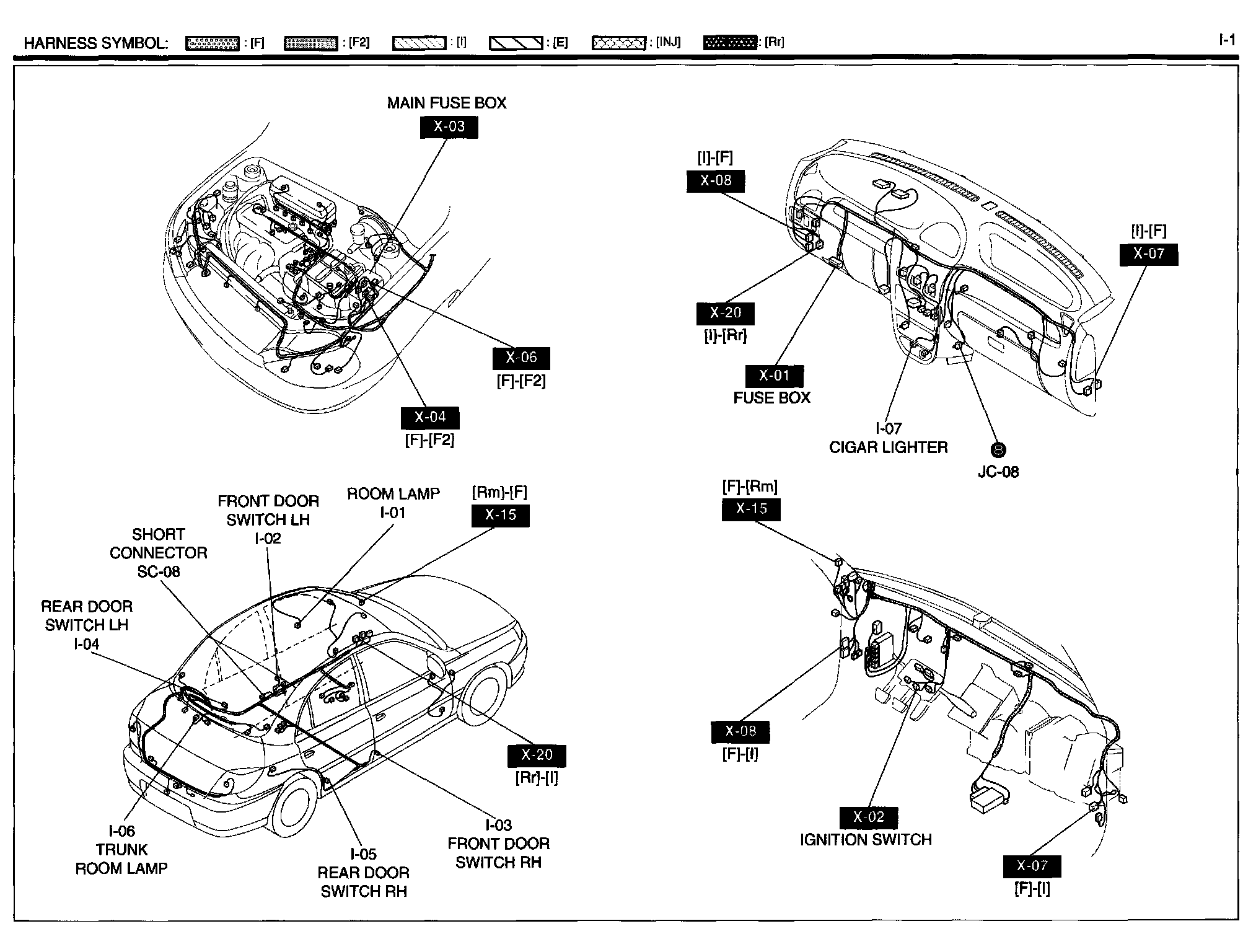

I-1 Room Lamp, Trunk Room Lamp, Cigar Light Harness/Connector Symbols:
