Kia
>>
2001
>>
Rio L4-1.5L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Daytime Running Lamp
>>
Testing and Inspection
>>
Symptom-Related Diagnostic Procedures
>>
PRD2 - Tail, Position, License Lights Do Not Operate
PRD2 - Tail, Position, License Lights Do Not Operate

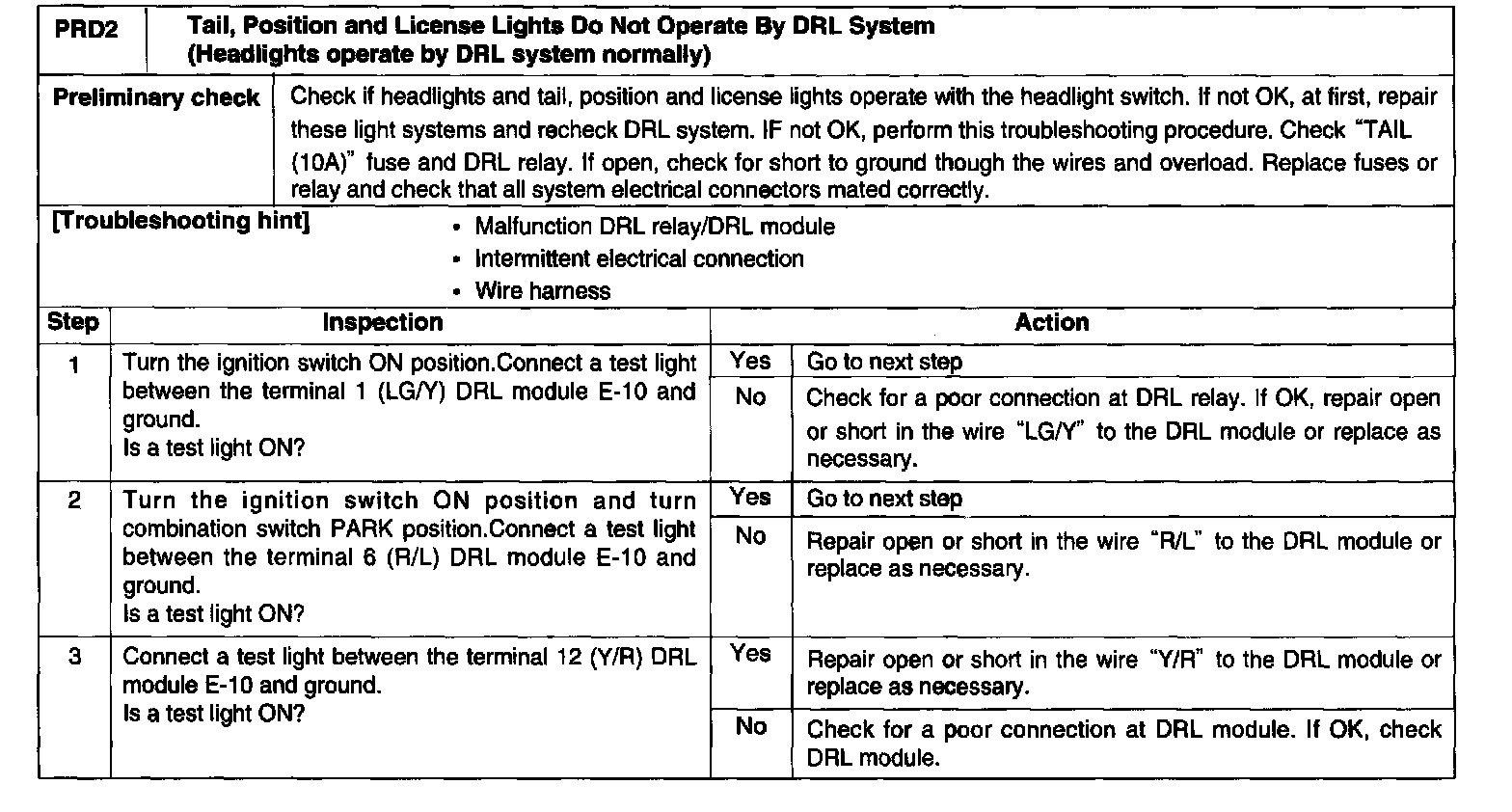

Step 1 - 3 // PRD2 - Tail, Position and License Lights Do Not Operate By DRL System (Headlights Operate By DRL System Normally):
