A/C Thermocon Inspection

1. Remove glove box.
2. Run engine at idle.
3. Turn A/C switch OFF and set blower switch to highest position to operate blower fan for a few minutes.
4. After a few minutes, turn blower switch OFF and stop engine.

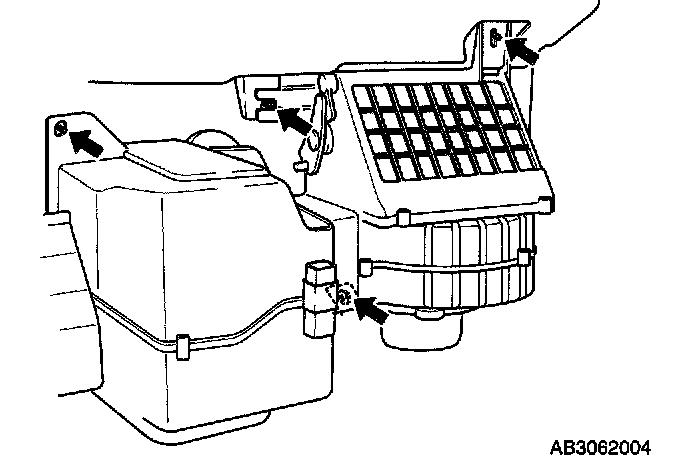

5. Disconnect A/C thermocon connector.

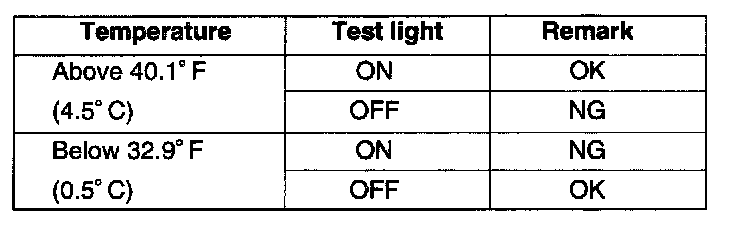

6. Apply 12 V to terminal 1 (BR) of A/C thermocon and ground terminal 3 (BR/Y). Connect a test light between terminal 2 (Y/G) and terminal 3 (BR/Y).




7. If not as specified, replace A/C thermocon.

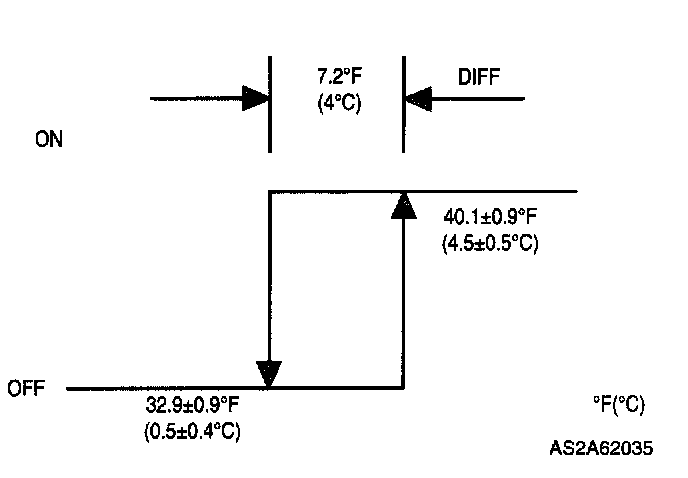

Note: The A/C thermocon contacts will be open if evaporator temperature is below 34.7 ± 0.9 °F (1.5 ± 0.5 °C).
