Blower Motor Resistor: Testing and Inspection

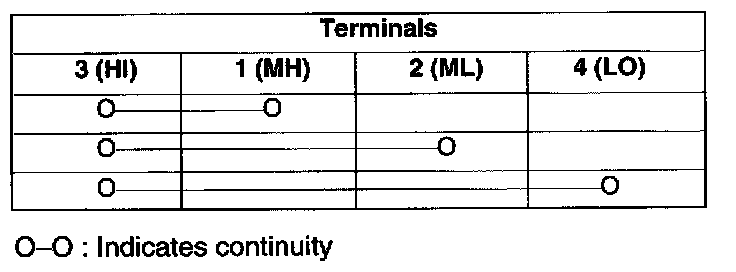

1. Disconnect resistor assembly connector. Check continuity between terminals.

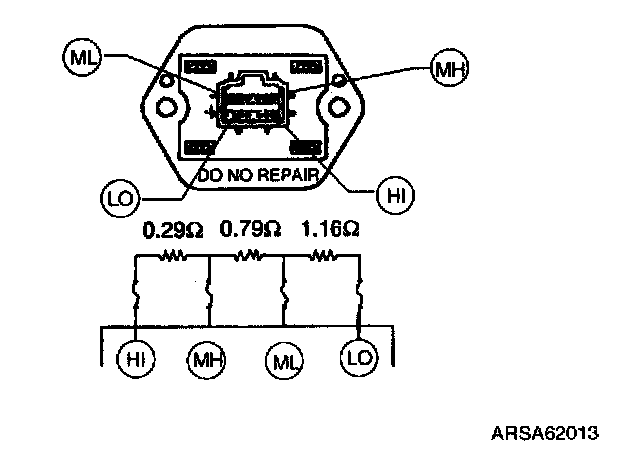

2. If not as specified, replace resistor assembly.




3. Measure resistance between terminals.
4. If not as specified, replace resistor assembly.
