Home >> Kia >> 2001 >> Rio L4-1.5L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Testing and Inspection >> Engine Mechanical System

Engine Mechanical System

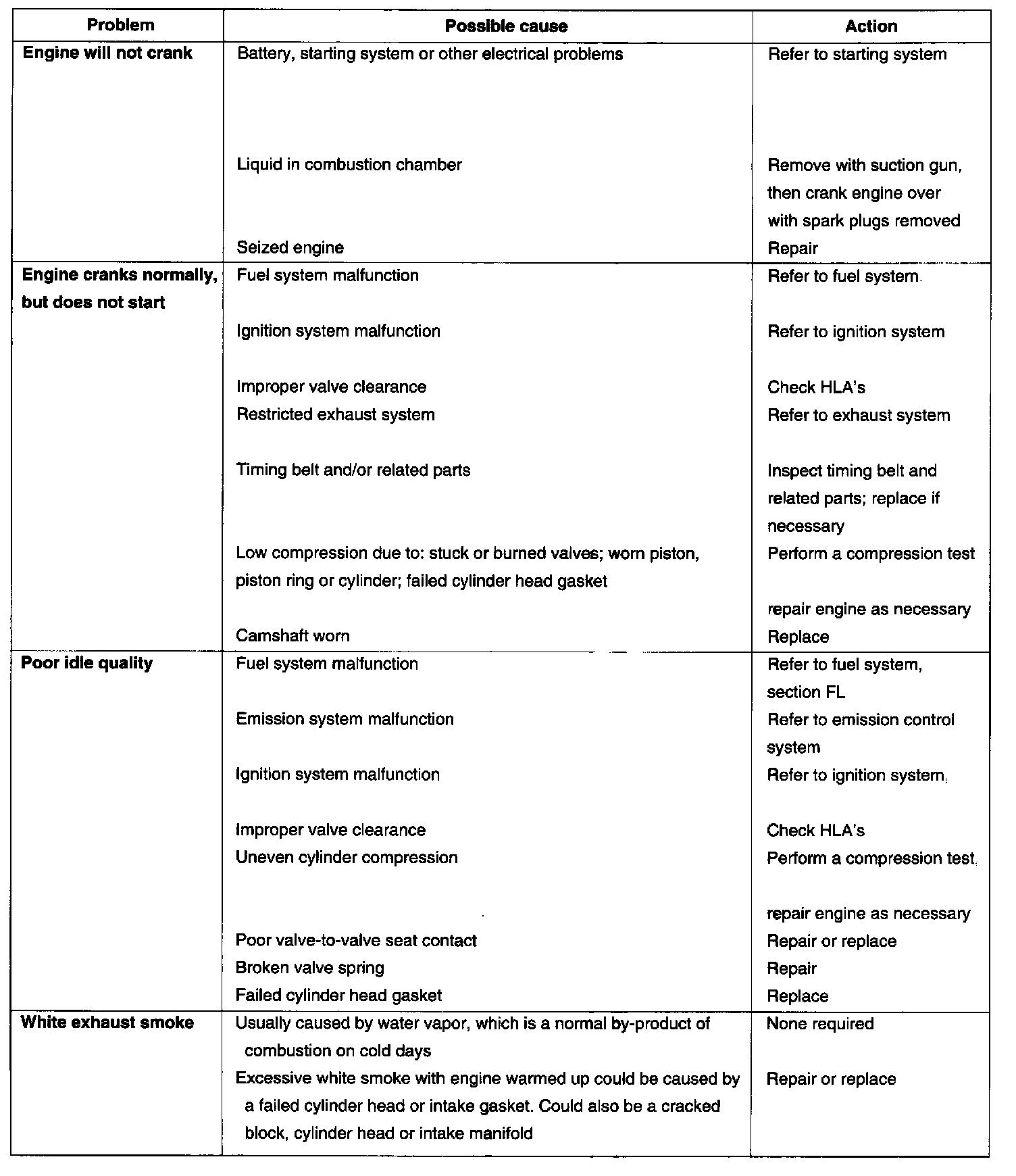

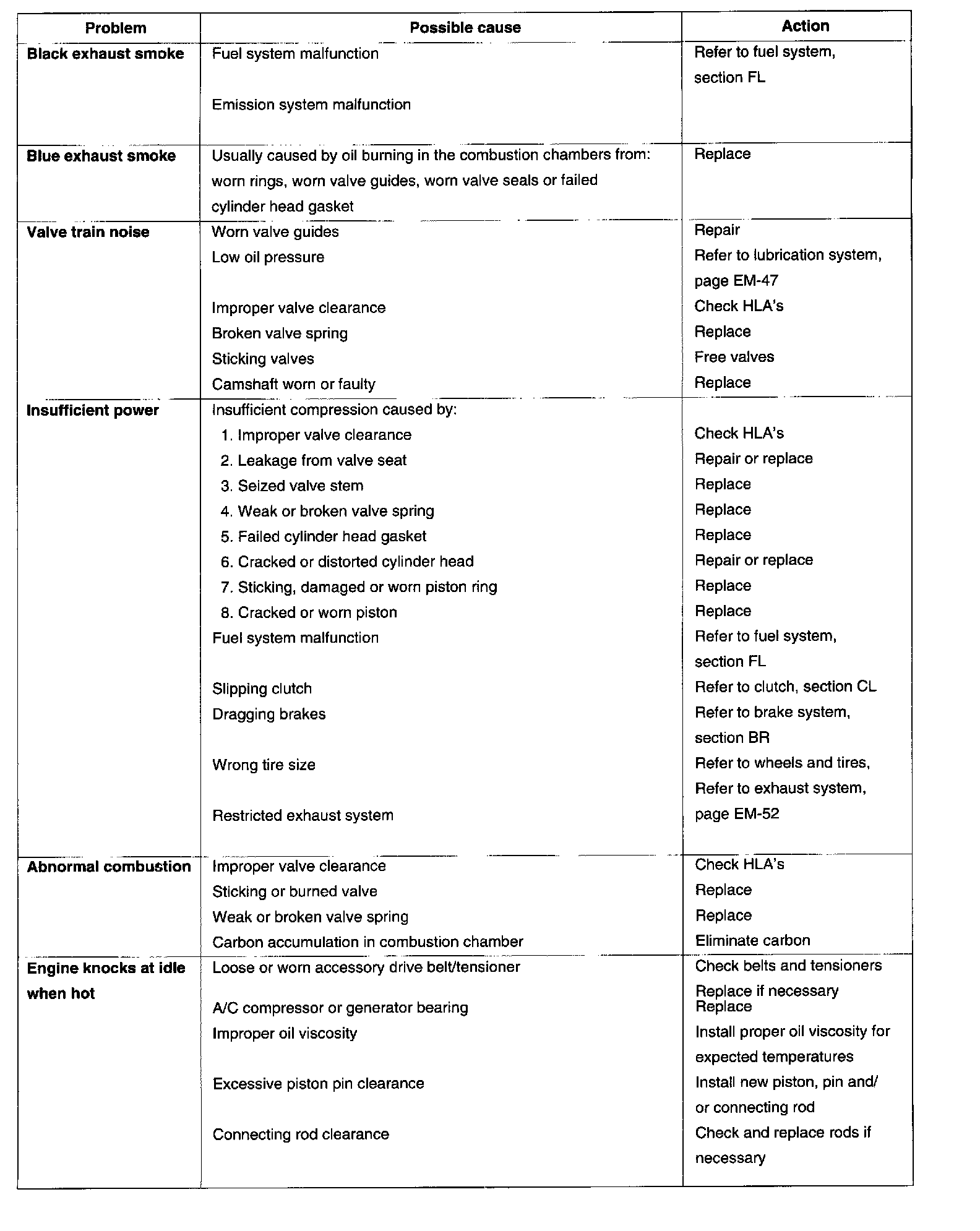

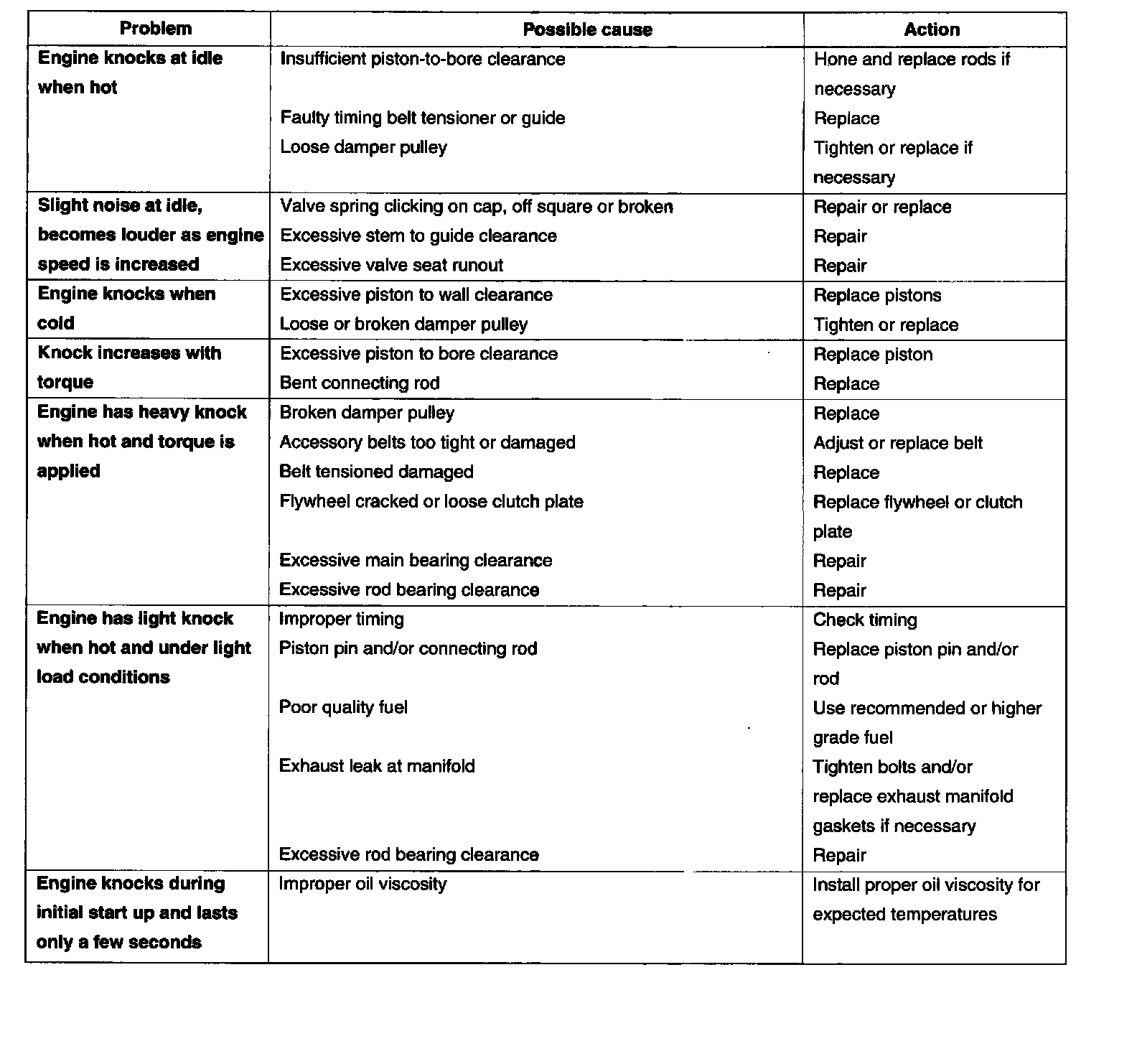

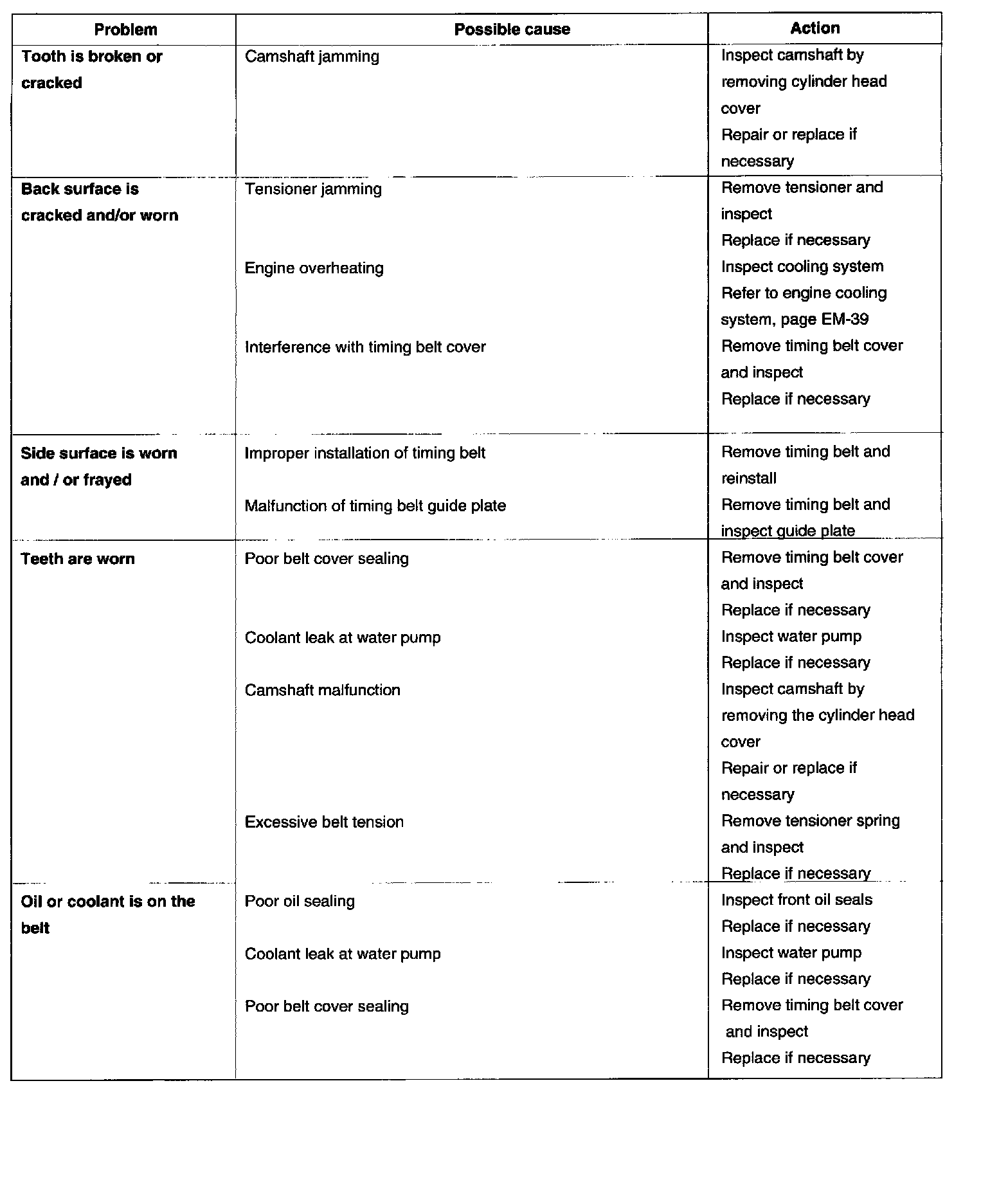

TROUBLESHOOTING





1 of 4





2 of 4





3 of 4





4 of 4
