Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

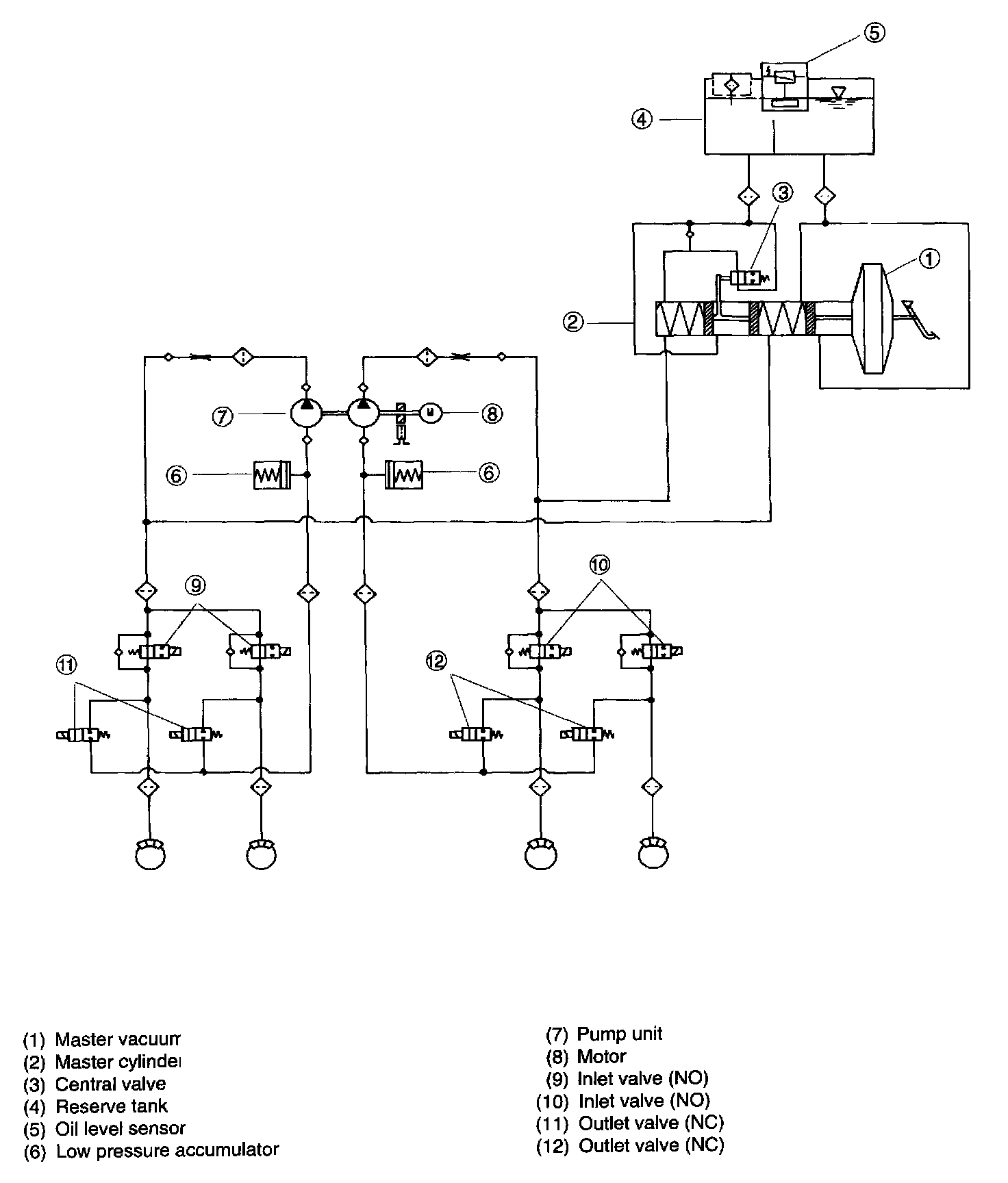

O - Anti-Lock Brake System (ABS) Circuit:
