Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
H- Automatic Transmission Controls
H- Automatic Transmission Controls

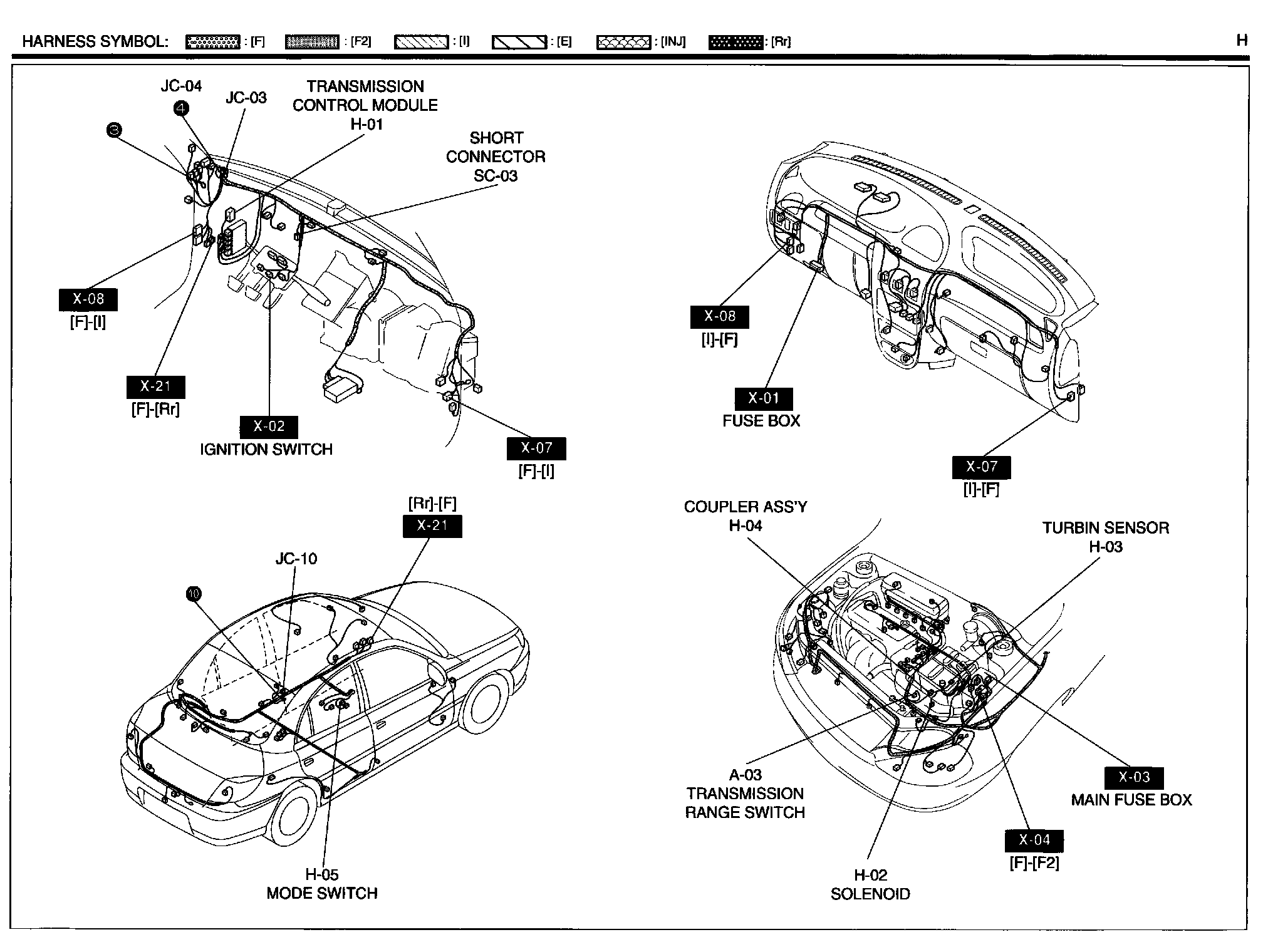

H - Automatic Transmission Controls Harness/Connector Symbols:
