C-1A - Instrumental Cluster and Warning Lamps

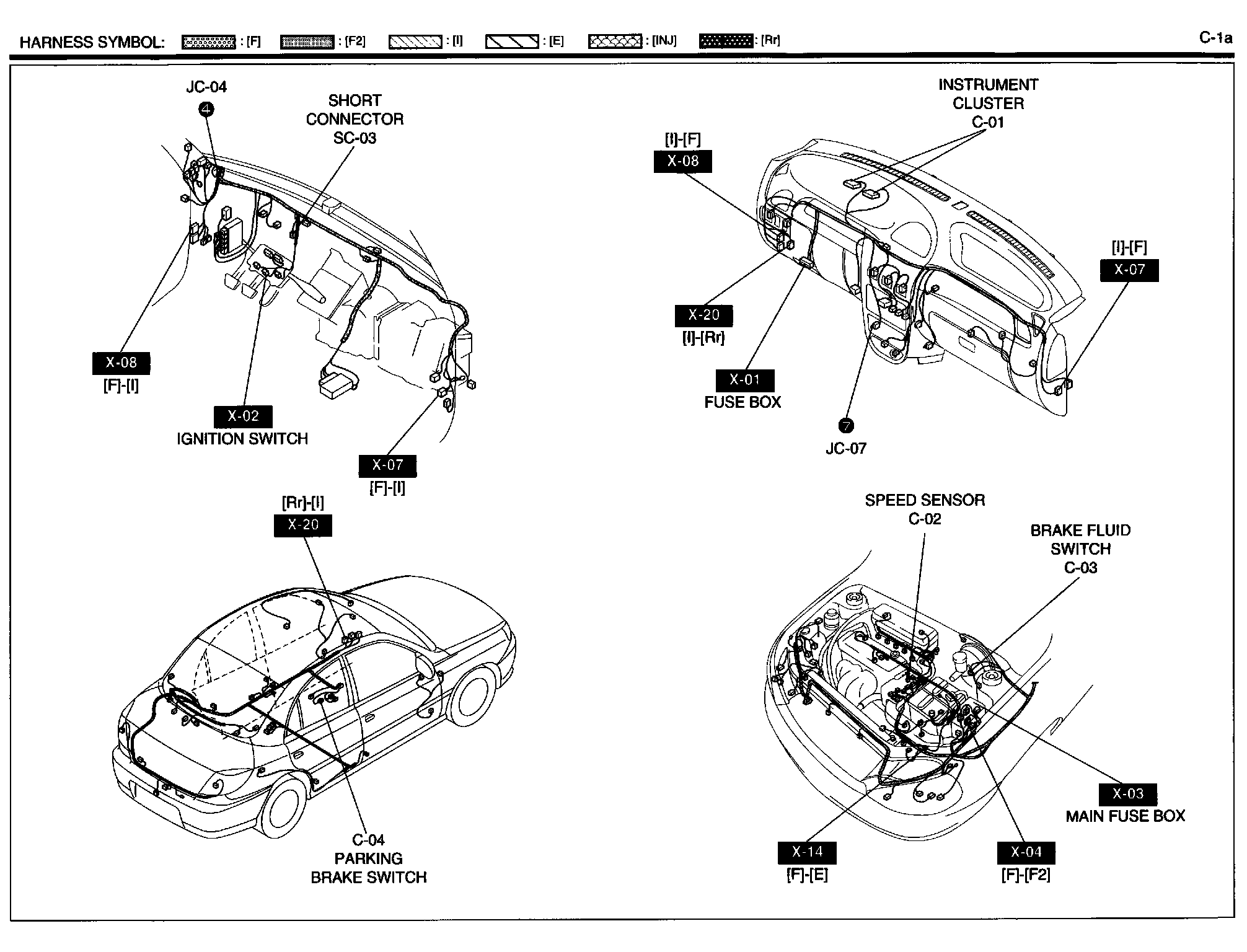

C-1a - Instrument Cluster And Warning Lamp Harness/Connector Symbols:
