Brake Proportioning/Combination Valve: Service and Repair

Removal and installation

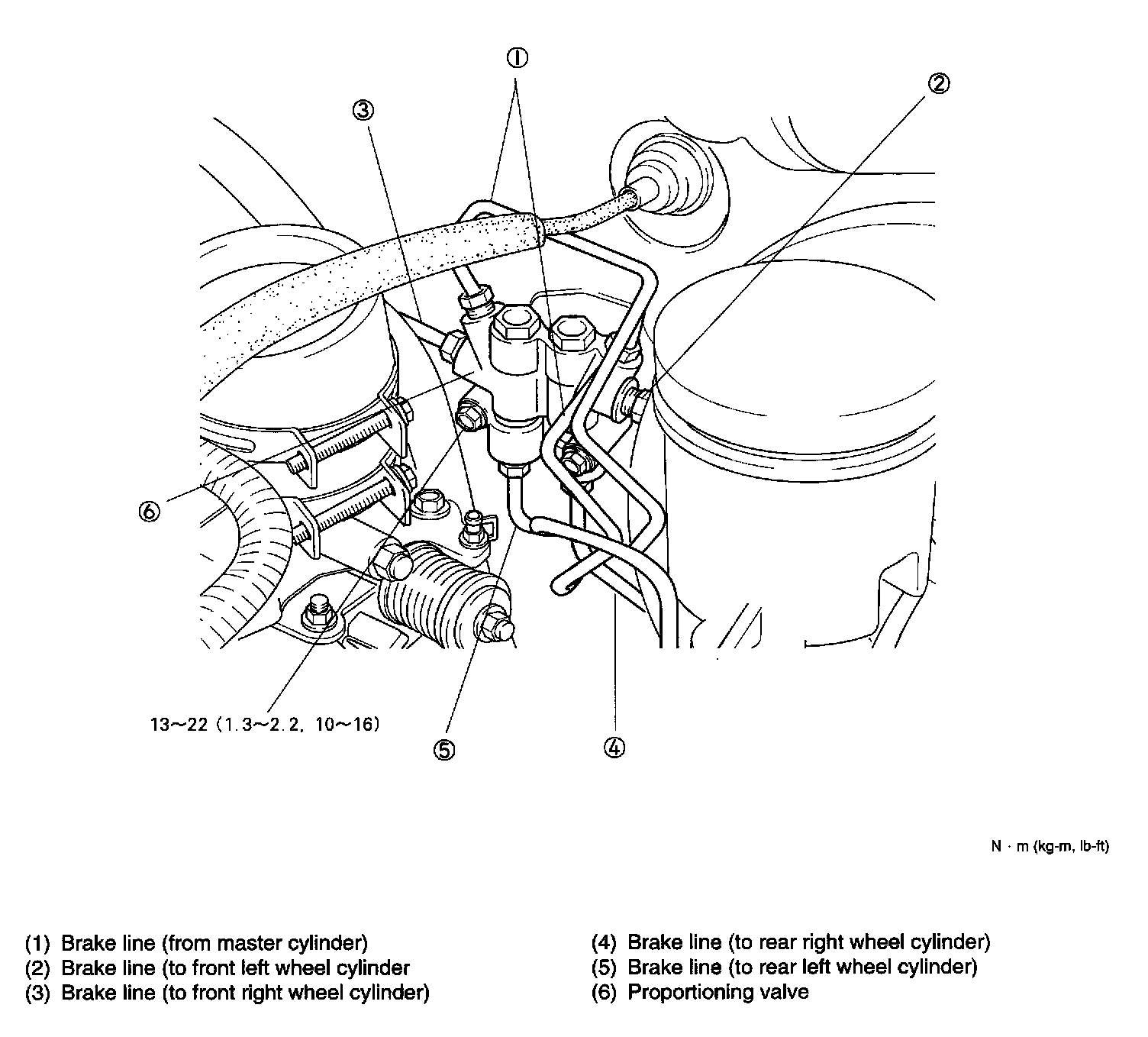

1. Remove the brake pipe shown in the figure.
2. Remove the bolt.
3. Remove the proportioning valve.
4. Install in the reverse order of removal.
5. After the installation, add a brake fluid, bleed air and check for the fluid leakage.
