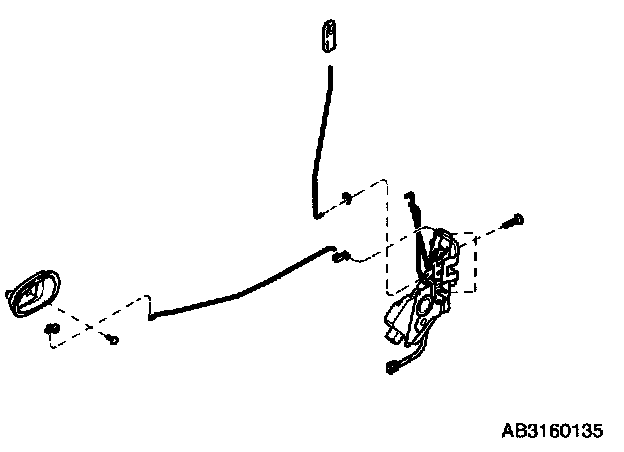

Rear Door

Removal




1. Remove one screw on inside door handle.
2. Remove one screw on door pull handle.
3. Remove door handle pull.
4. Remove snap ring and regulator handle from rear door trim.
5. Remove regulator handle.
6. Remove three screws from right side and bottom side of rear door trim.




7. Unfasten rear door trim with trim removal tool.

Installation
1. Install rear door trim.
2. Install inside door handle.




3. Install one screw on inside door handle.
4. Install door pull handle.
5. Install one screw on door pull handle.




6. Install three screws at right side and bottom side of rear door trim.
