Shift Lever Assembly

SHIFT LEVER ASSEMBLY

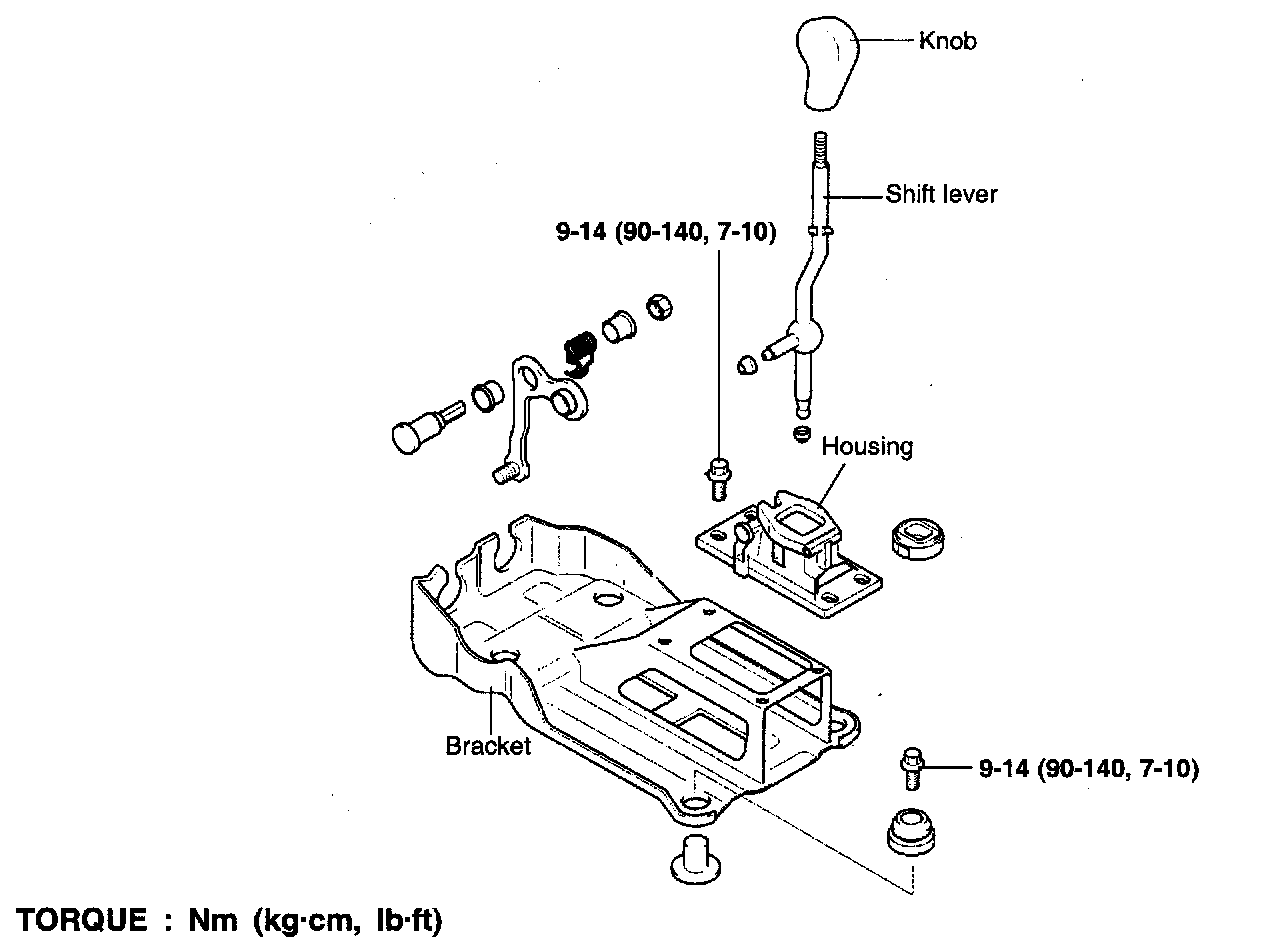

COMPONENTS

INSPECTION
1. Inspect the bushing for wear or damage.
2. Inspect the return spring for damage or deterioration.

REASSEMBLY
1. Apply multi-purpose grease to the sliding part of the bushings.
2. Reassembly is reverse of the disassembly.
