Home >> Kia >> 2001 >> Optima L4-2.4L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> Transaxle Range Switch Continuity

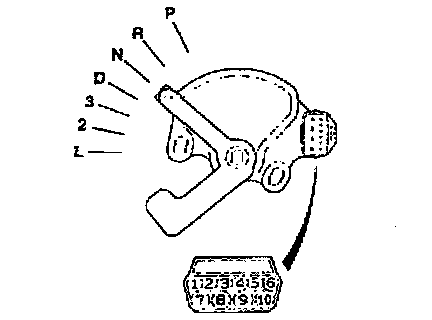

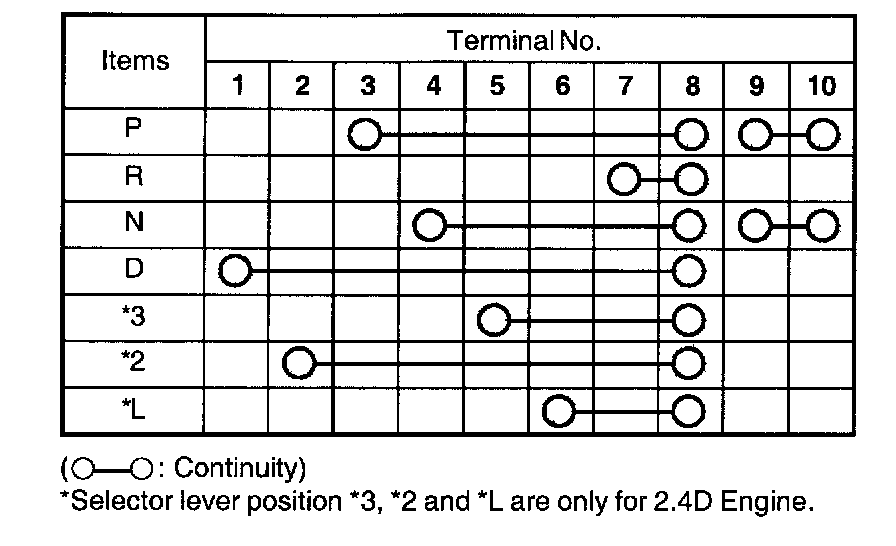

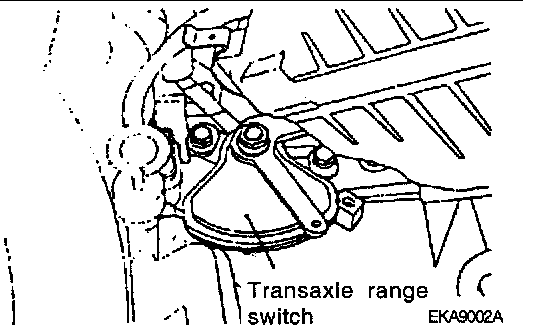

Transaxle Range Switch Continuity

TRANSAXLE RANGE SWITCH CONTINUITY





1 of 3





2 of 3





3 of 3
