Shifter A/T: Description and Operation

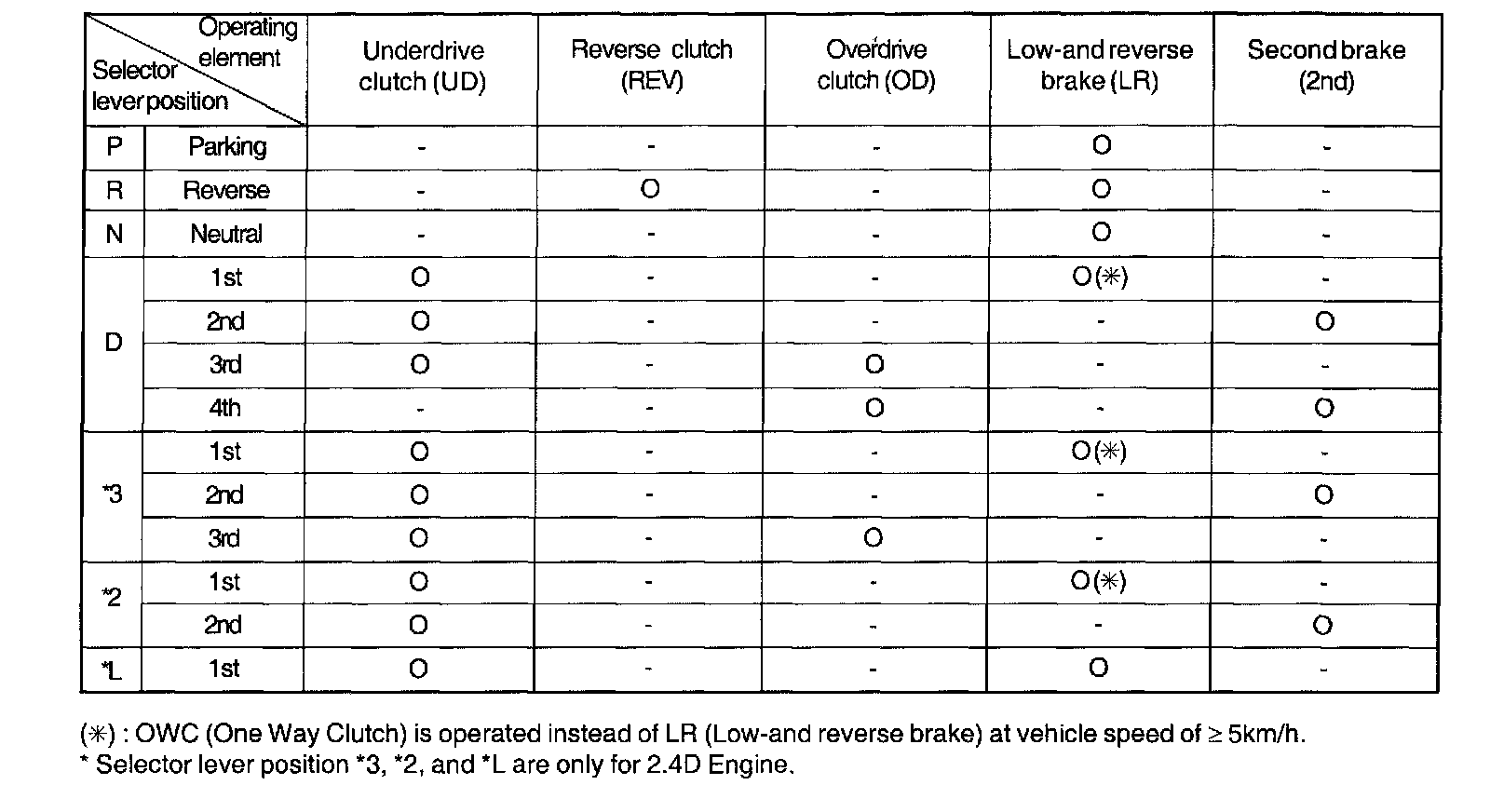

ELEMENT IN USE AT EACH POSITION OF SELECTOR LEVER

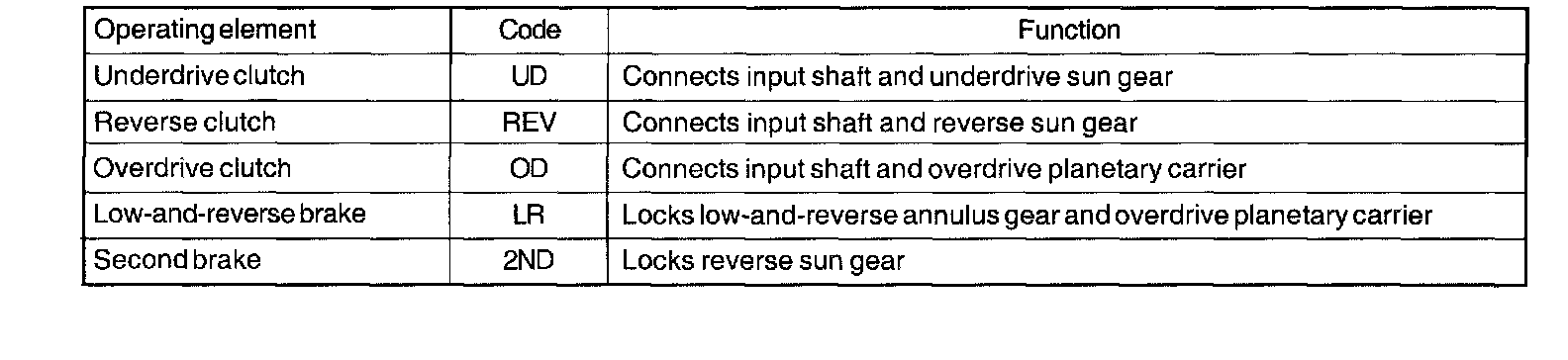

Operating Element and Their Functions
