Home >> Kia >> 2001 >> Optima L4-2.4L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Description and Operation

Automatic Transmission/Transaxle: Description and Operation

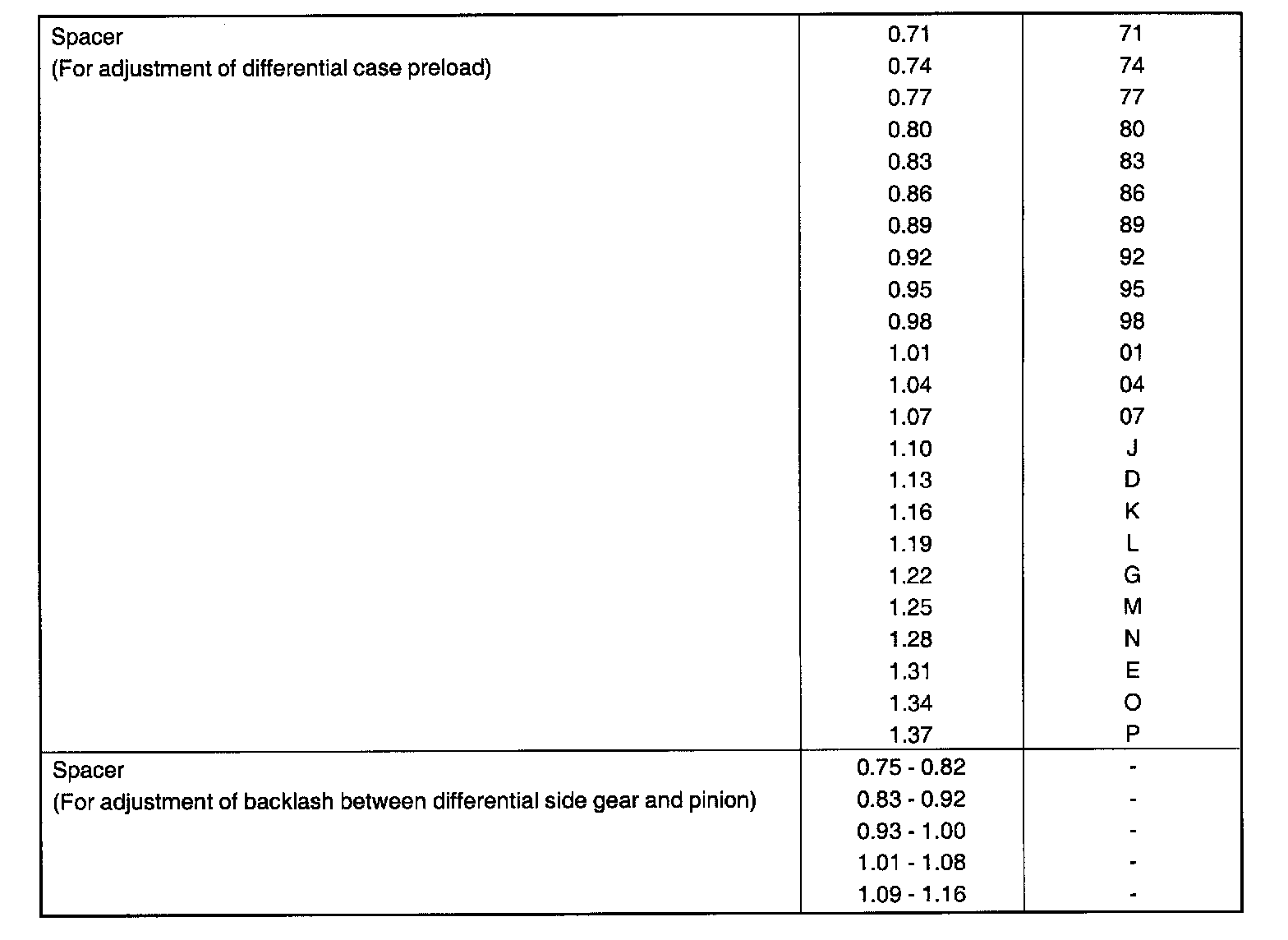

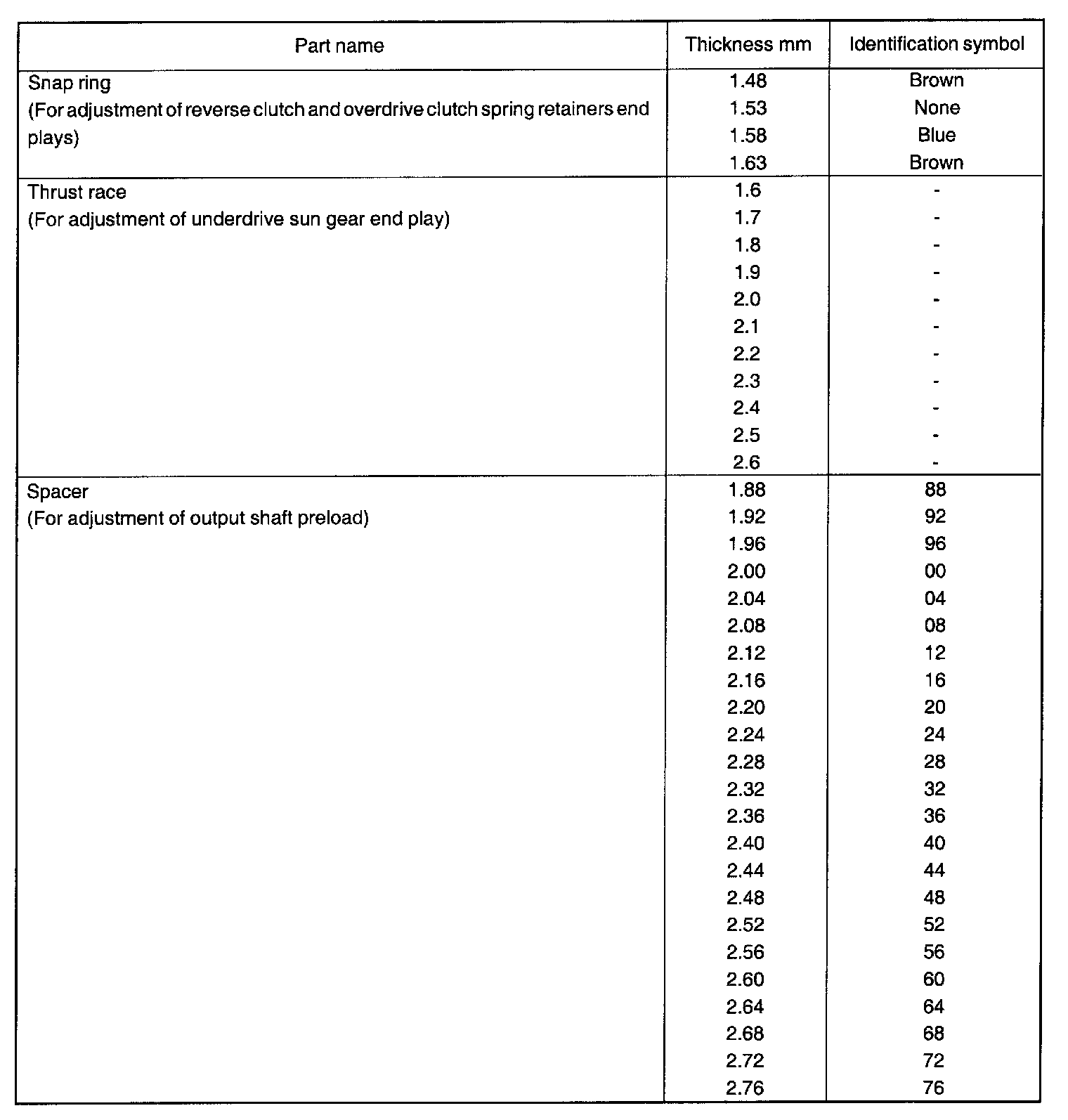

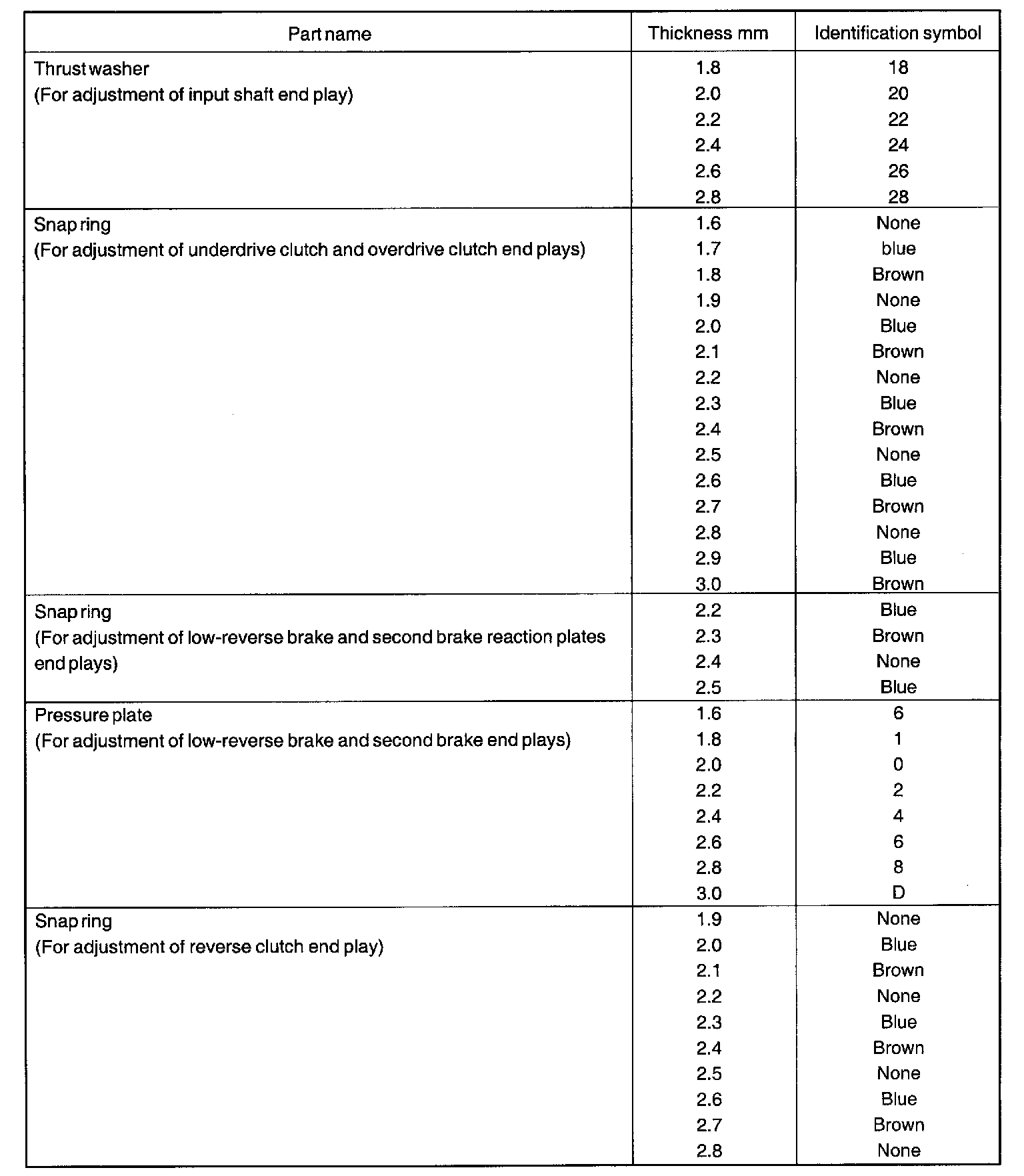

SNAP RING AND SPACER FOR ADJUSTMENT





1 of 3





2 of 3





3 of 3
