Home >> Kia >> 2001 >> Optima L4-2.4L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Heating and Air Conditioning >> Compressor HVAC >> System Specifications

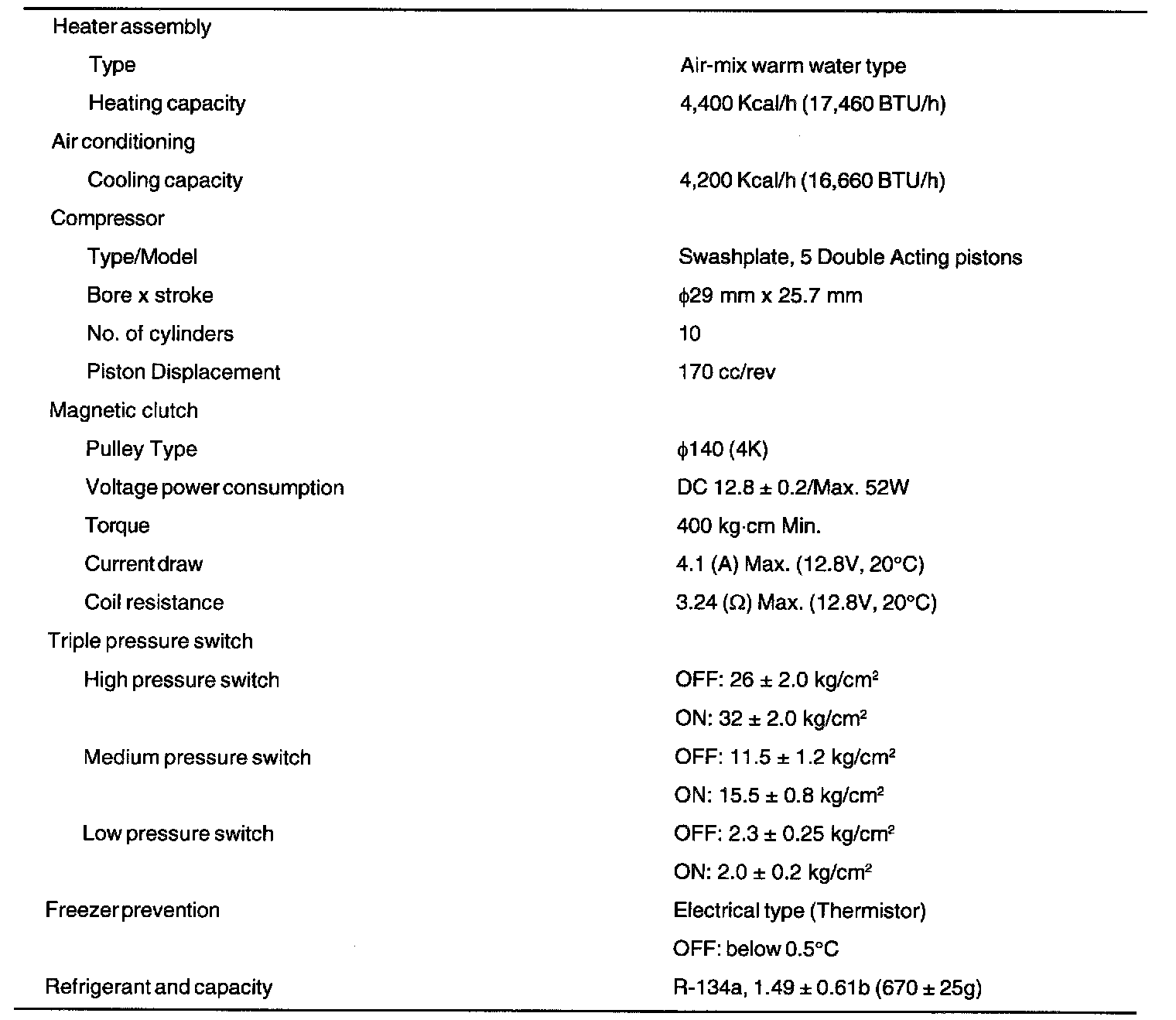

System Specifications

Disassembly And Reassembly:



Specification ( R - 134A ):
