Air Door Position Sensor / Switch: Testing and Inspection

FRESH/RECIRCE BUTTON

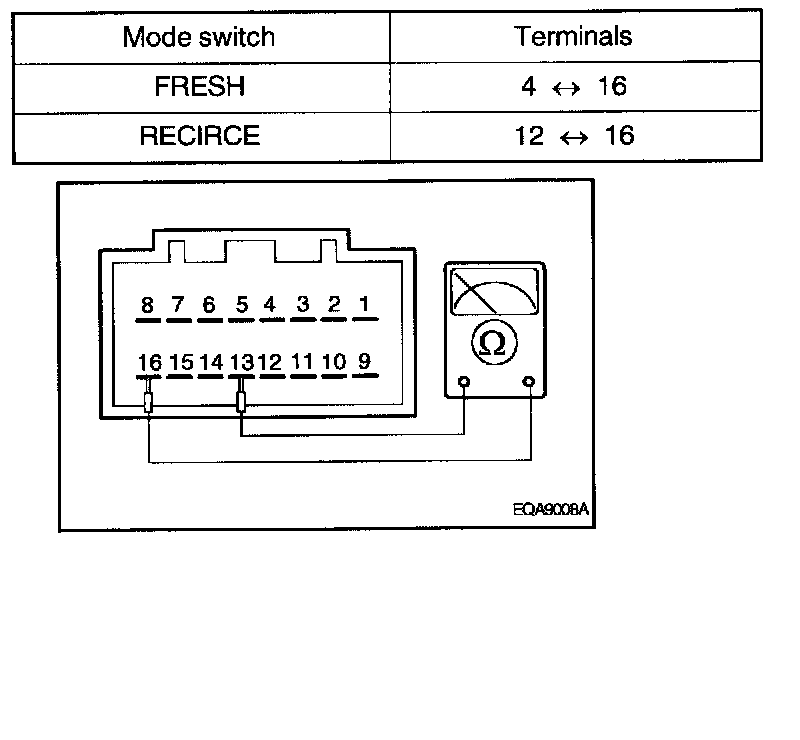

1. Check for continuity between terminals.




If continuity is not as specified, replace the control panel.
