Front Lap / Shoulder Belt Assembly

REMOVAL

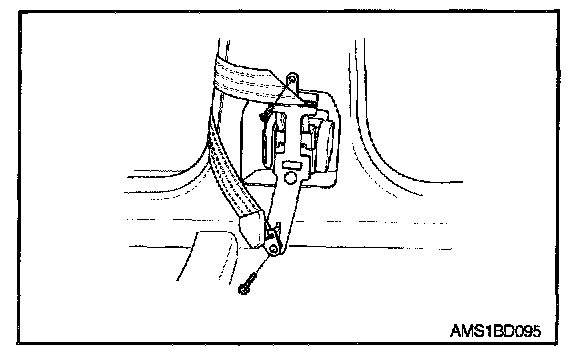

1. Remove one bolt from mounting bracket and remove bracket.
2. Retract belt slowly as far as it will go.

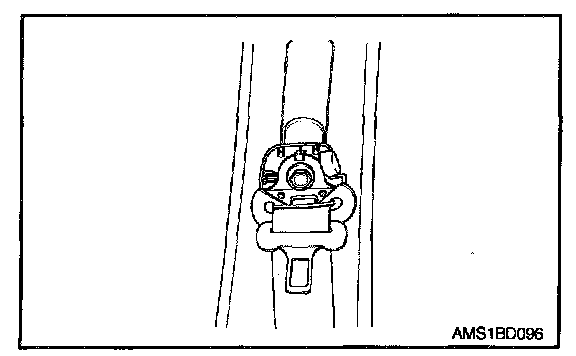

3. Unsnap captive shoulder belt anchor bolt cover from bottom and lift up.




4. Remove one upper anchor bolt.




5. Remove retractor assembly.
1. Remove B-pillar lower trim.
2. Disconnect electrical connector from retractor assembly.
3. Remove one sheet metal screw to remove retractor assembly.

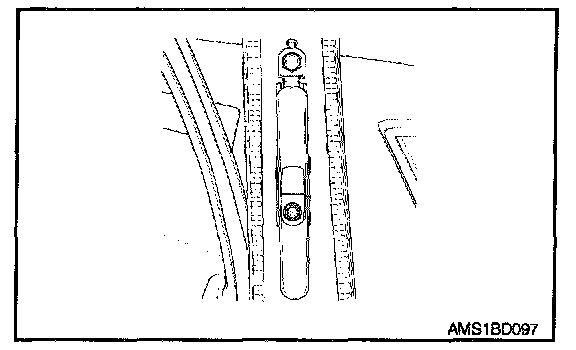

6. Remove shoulder adjuster.
1. Remove two sheet metal screws to remove belt guide.
2. Unfasten B-pillar upper trim.
3. Remove two mounting bolts from shoulder adjuster.

INSTALLATION




1. Install shoulder adjuster.
1. Install two bolts to attach shoulder adjuster.
2. Fasten B-pillar upper trim.
3. Install two sheet metal screws to remove belt guide.




2. Install retractor assembly.
1. Install one sheet metal screw to attach retractor assembly.

WARNING: EXERCISE CARE TO INSTALL BELT SO THERE ARE NO TWISTS IN IT. A TWISTED BELT MAY BE HARMFUL TO A PASSENGER IN A SERIOUS ACCIDENT. A TWISTED BELT ALTERS DISTRIBUTION OF FORCE RESULTING FROM SUDDEN DECELERATION.

2. Connect electrical connector to retractor assembly.
3. Install B-pillar lower trim panel.




3. Install one upper anchor bolt.

Tighten anchor bolt to 25 - 33 lb-ft (35 - 45 N.m, 3.5 - 4.5 kg-m)

4. Install one bolt through lap belt mounting bracket.

Tighten anchor bolt to 25 - 33 lb-ft (35 - 45 N.m, 3.5 - 4.5 kg-m)
