Home >> Kia >> 2001 >> Optima L4-2.4L >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams

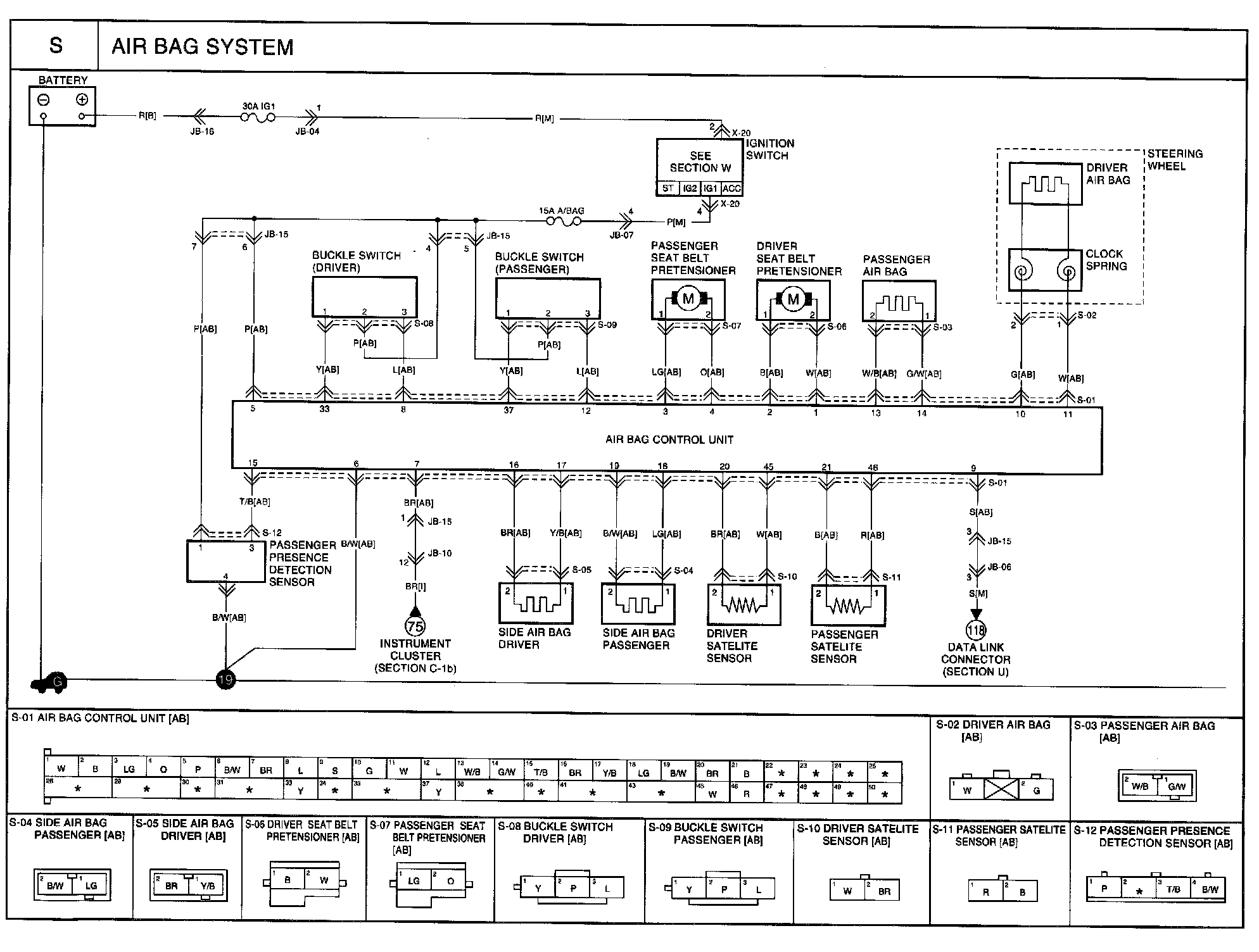

S - Air Bag System Circuit:

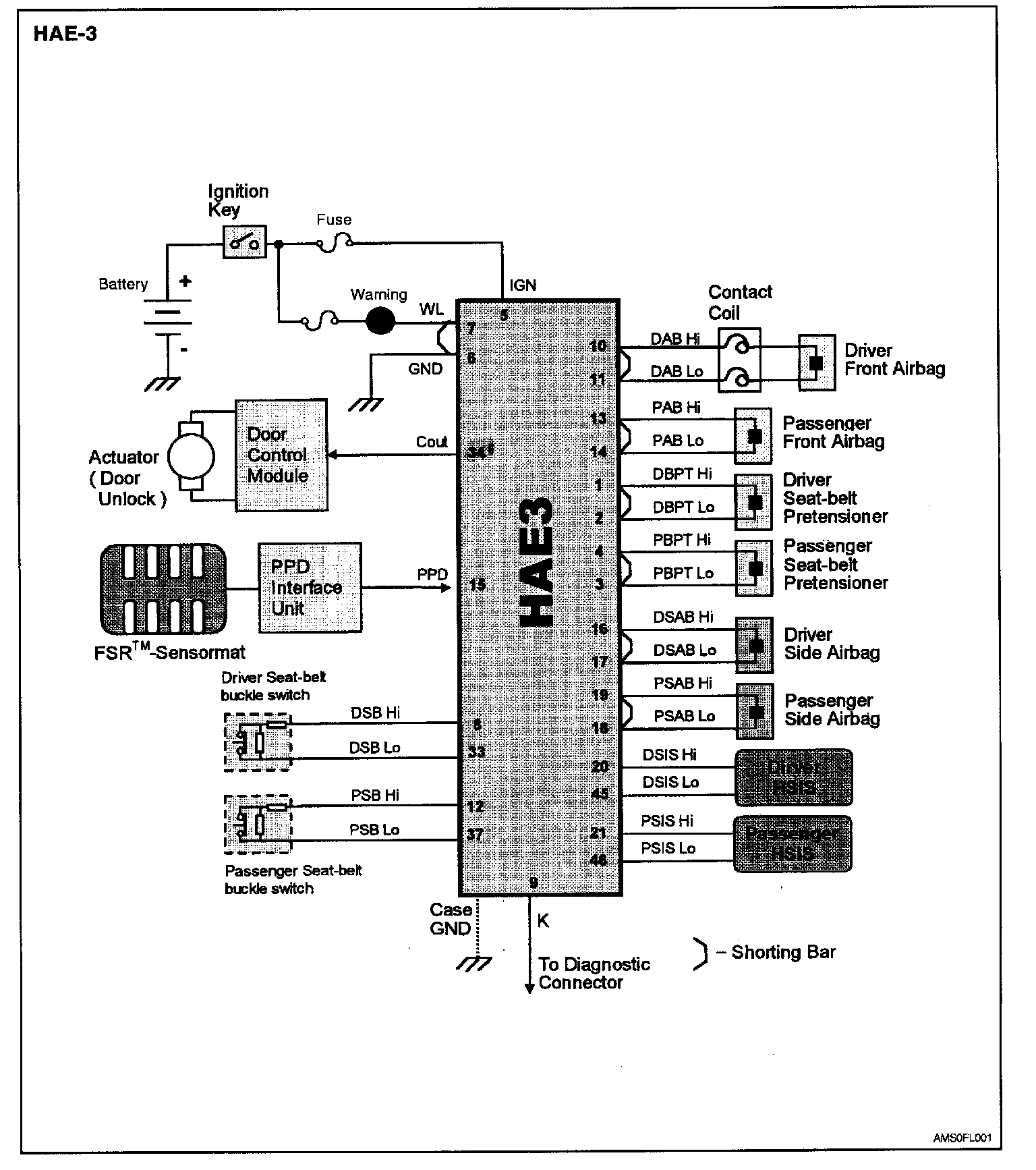

Airbag System (SRS):
