Injector Resistance

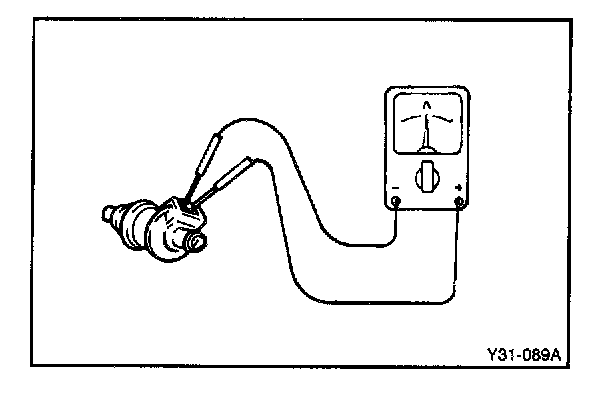

1. Measure the resistance of the injectors between the terminals using an ohmmeter.

Resistance 13 - 16 ohms [at 20 °C (68 °F)]

2. If the resistance is not within specifications, replace the injector.
