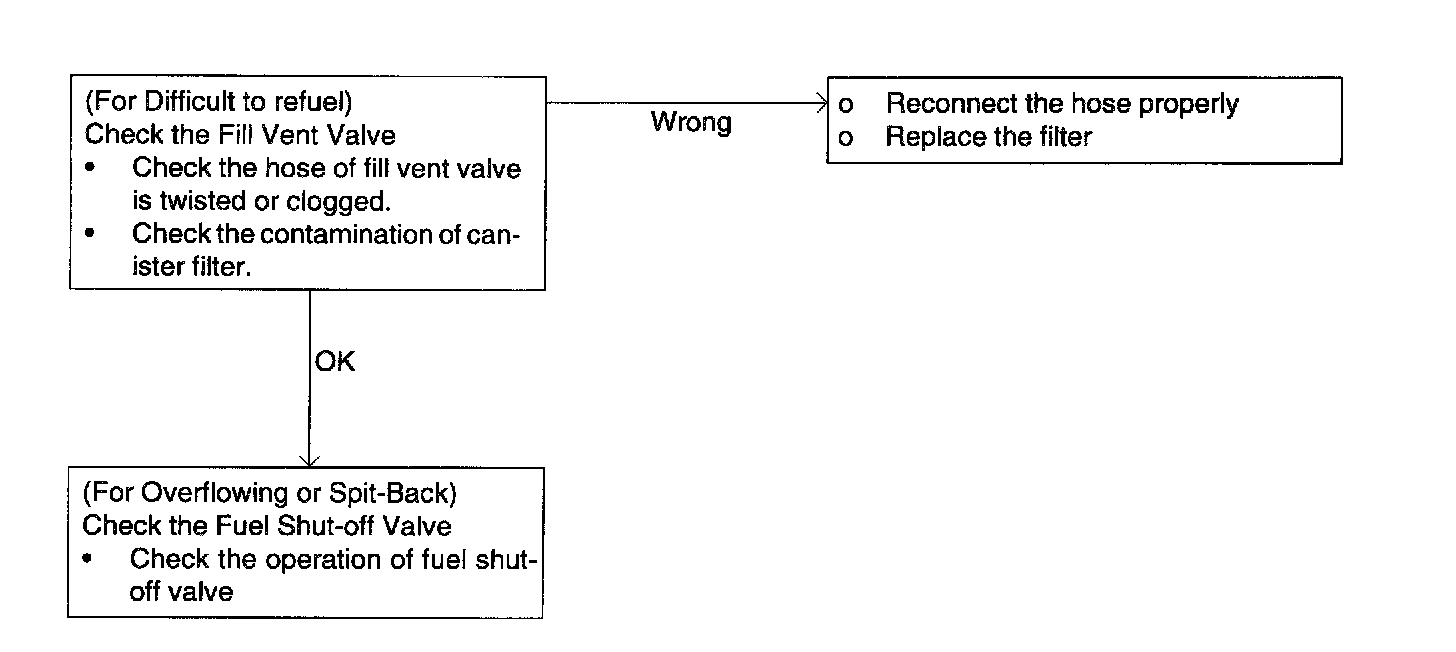

Difficult to Refuel/Overflowing or Spit-Back While Refueling






NOTE: The proper operating condition of fuel shoot-off valve is at the nominal volume of fuel (app. 65 liter)
