Horn: Service and Repair

REMOVAL












1. Disconnect negative battery cable.
Remove the radiator grille.

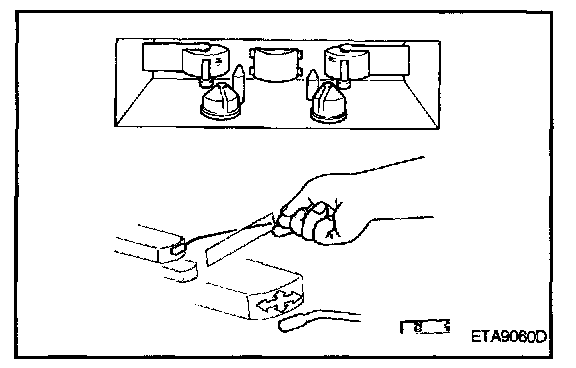

2. Disconnect horn wire.

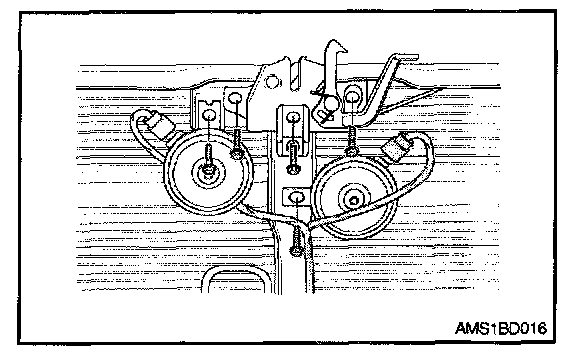

3. Remove one bolt and remove horn.

INSTALLATION

Horn is electrically grounded through mounting. Be sure that metal-to-metal contact is established before installing attaching bolt.
1. Disconnect negative battery cable.

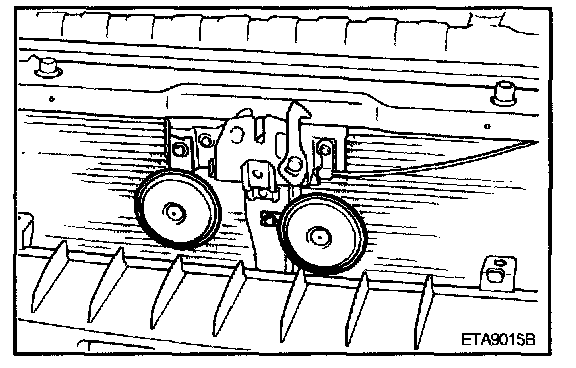

2. Position horn on chassis and install one bolts.
3. Connect two wires to horn.
4. Connect negative battery cable.
